LCD Touch Screen Digital Microscope YR05782
LCD Touch Screen Digital Microscope YR05782 — Kalstein laboratory equipment with technical specifications, advanced features, and certified professional solutions for scientific use.

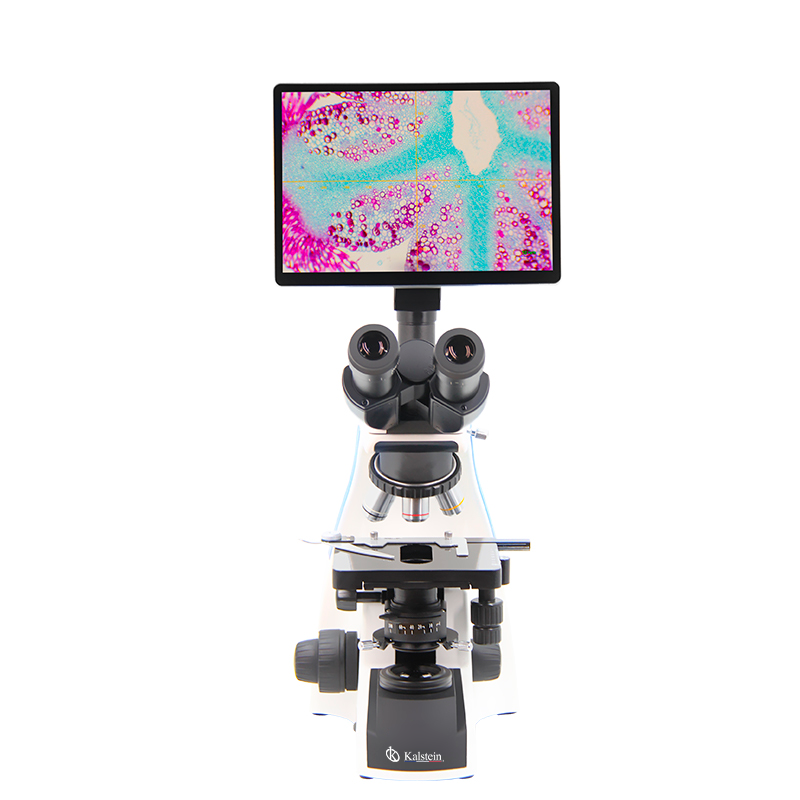

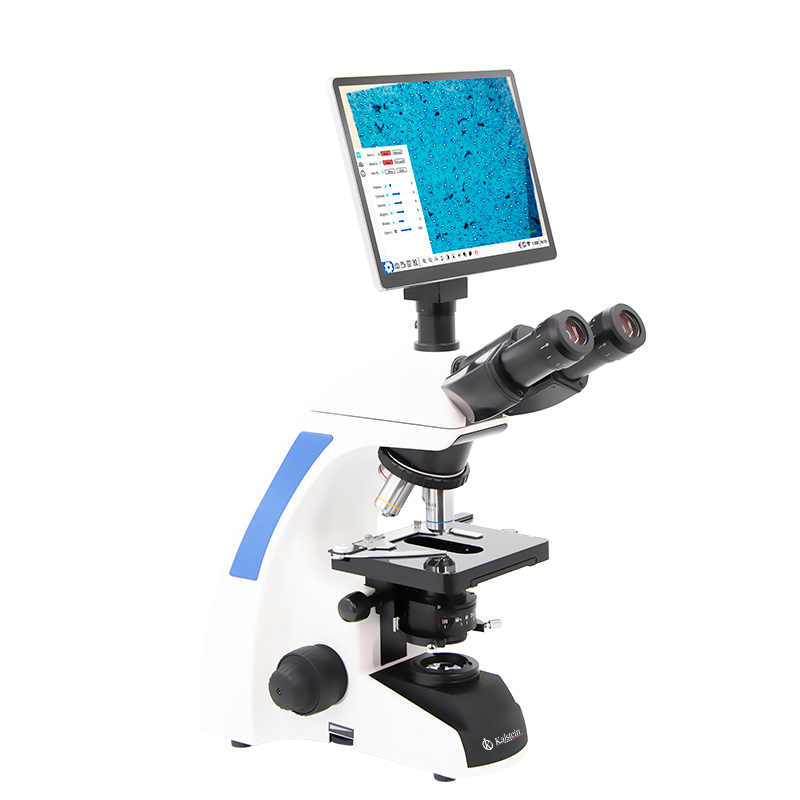

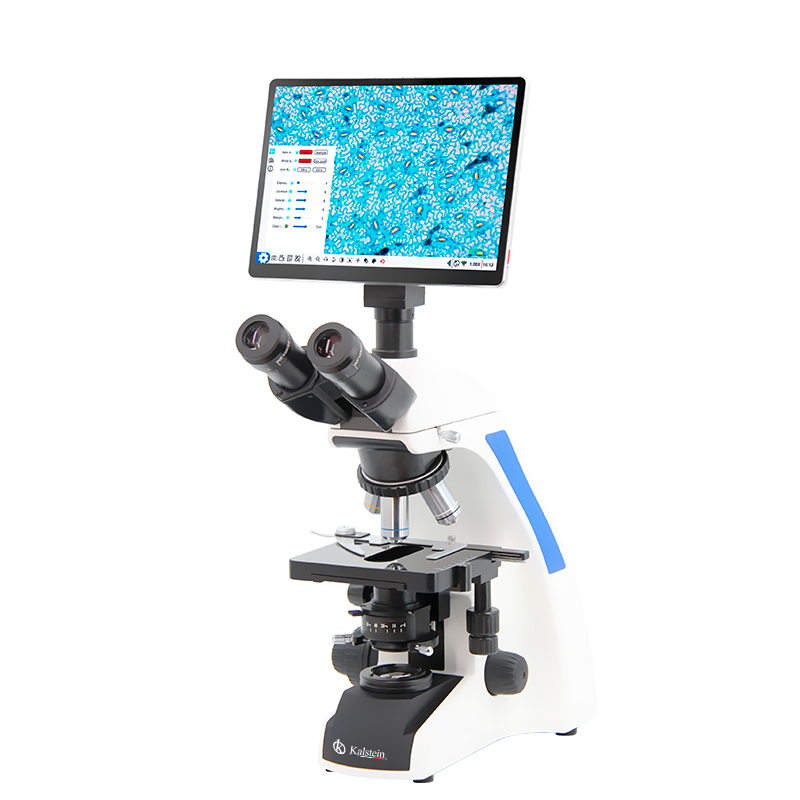

The LCD Touch Screen Digital Microscope YR05782 combines cutting-edge technology with unparalleled precision, making it a must-have for laboratories and research institutions. Featuring a 10.5-inch LCD touch screen with an Android system, this digital microscope integrates advanced measuring software, facilitating detailed analysis and documentation. The microscope offers high-contrast achromatic objectives, expandable mechanical stage, and optimized LED Kohler illumination, ensuring crisp and clear imagery. Enhanced by a high-definition camera, the device supports dual-band WiFi and Bluetooth 5.0, allowing seamless connectivity and data transmission. With its user-friendly interface and robust construction, this microscope is engineered to meet the rigors of daily scientific exploration.
Market Price Overview
The LCD Touch Screen Digital Microscope YR05782 is competitively positioned in the market, with prices typically ranging from $1300 to $2000 USD. This price reflects its sophisticated features and advanced capabilities, making it an excellent investment for those in scientific and educational fields. For precise pricing and potential discounts, users are encouraged to request a quote through Kalstein Plus.
Frequently Asked Questions
Q: Is the software included in the microscope platform upgradable?
A: Yes, the software is upgradable, providing access to the latest features and improvements.
Q: Does the microscope offer wireless connectivity?
A: Absolutely, it supports dual-band WiFi and Bluetooth 5.0 for flexible wireless operations.
Q: What is the warranty period for the microscope?
A: The product comes with a standard manufacturer warranty, details of which can be provided upon request.
Advantages and Disadvantages
The LCD Touch Screen Digital Microscope YR05782 offers numerous advantages, including enhanced imaging capabilities, seamless connectivity, and intuitive operation. However, its advanced features may require a learning curve for those unfamiliar with digital microscopy systems. Additionally, due to its cutting-edge technology, the price may be higher compared to more basic models, but it provides long-term value with its sophisticated functionality.
Field Usage
Designed for versatility, this digital microscope is ideal for a variety of applications including biological research, educational demonstrations, and quality control in industrial settings. Its portable nature, combined with high-definition imaging and measurement tools, makes it the perfect companion for professionals needing detailed and reliable analysis in diverse environments.
Recommendations
To ensure optimal performance, it's recommended to regularly calibrate the microscope and maintain the cleanliness of the optical components. Users should consider using a dust cover when the microscope is not in use to protect it from environmental contaminants. Furthermore, utilizing the software's measurement features can significantly enhance the accuracy of your scientific observations.
Key Features
- 10.5" LCD Touch Screen with Android System
- High Eyepoint Wide Field Eyepiece WF10x/20mm
- Achromatic Objectives with Upgradeable Options
- Double Layer Mechanical Stage
- 3W LED Kohler Illumination
- Seamless Connectivity with WiFi and Bluetooth
Technical Specifications
| Model | YR05782 | |

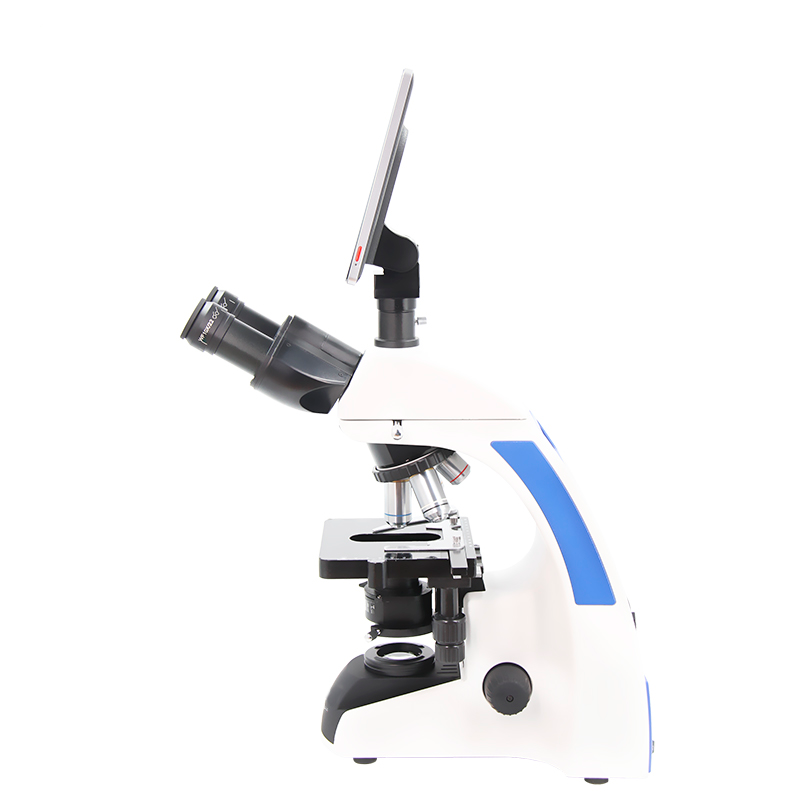

| Head | Trinocular Head, 30° Inclined, Interpupillary Distance 48-75mm, Both Eyepiece Tube Diopter Adjustable | |

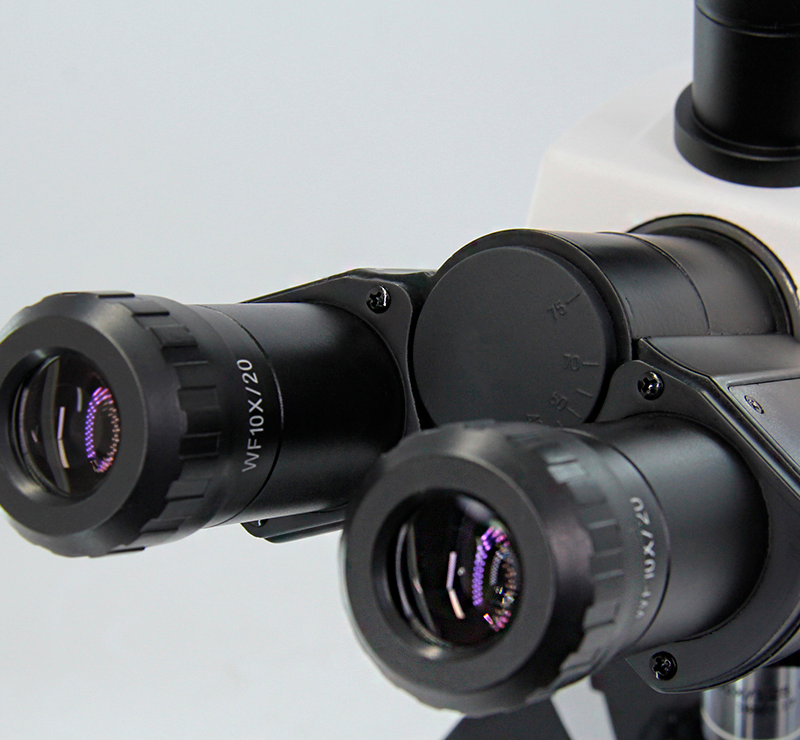

| Eyepiece | WF10x/20mm, Diopter Adjustable, Dia. 30mm | |

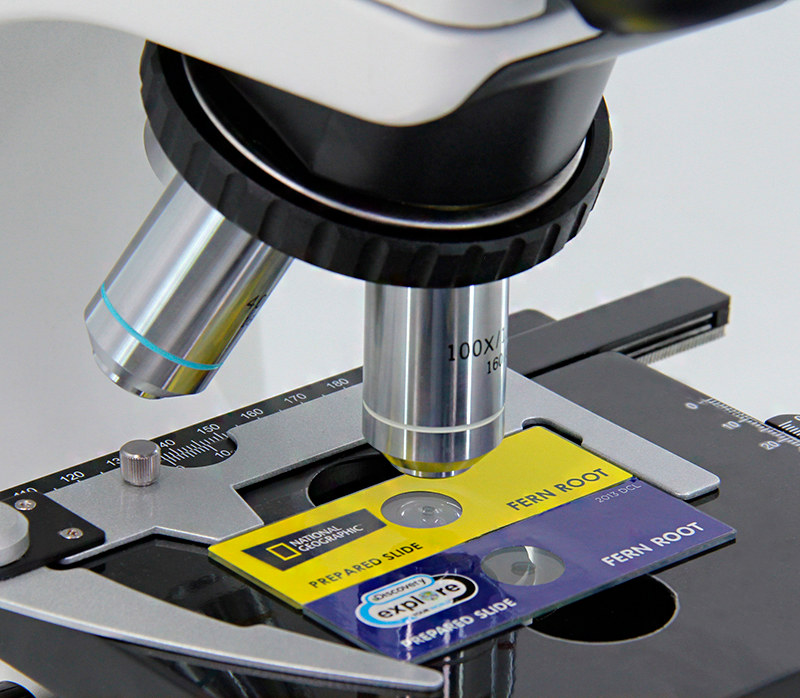

| Objective | High Contrast Chromatic Free 4x, 10x, 40x(S), 100x(Oil, S) | |
| Focus Knob | Coaxial Coarse & Fine Focusing, Fine Division 0.002mm, Coarse Stroke 37.7mm/Rotation, Focusing Range 24mm | |
| Nosepiece | Quadruple, Backward With Click Stops | |
| Stage | Double Layer Mechanical Stage 142x132mm, Graphite Surface, Moving Range 75x50mm | |
| Condenser | Abbe Condenser N.A.1.25, Center Adjustable | |
| Light Source | 3W LED Brightness Adjustable | |
| Adapter | C-Mount 0.5x | |
| Package | 53*32.5*53.5cm/11.5Kg, 1 Set/Carton | |
| 10.5“ Touch Screen Android Pad Digital Camera, 8.0M1 Newly Update 2022! | ||
| Spec. | Model | YR05782-op0 |
| Category | HD All-in-One Android 11 System Tablet Digital Camera | |
| Sensor | 1/1.8” CMOS Sensor | |
| Effective Pixel | 8M, 4K | |
| Screen | 10.5” High-Definition Touch Screen | |
| Operation System | Android 11 | |
| WIFI | 2.4GHz/5GHz Dual-band WIFI, Support WIFI6 | |
| Bluetooth | Bluetooth 5.0 | |
| Output | USB3.0*2, USB2.0*1, HDMI, Gigabit LAN Port | |
| Pixel size | 2.0um*2.0um | |
| Power | DC-12V/2A | |
| Function | Basic Function | Android Interaction, Installed S-Eye2.0 Measure Software |
| Image Adjustment | Brightness, Contrast, Saturation, Color Temperature | |
| Camera Function | Mirror, Flip, Freeze, Black and White | |

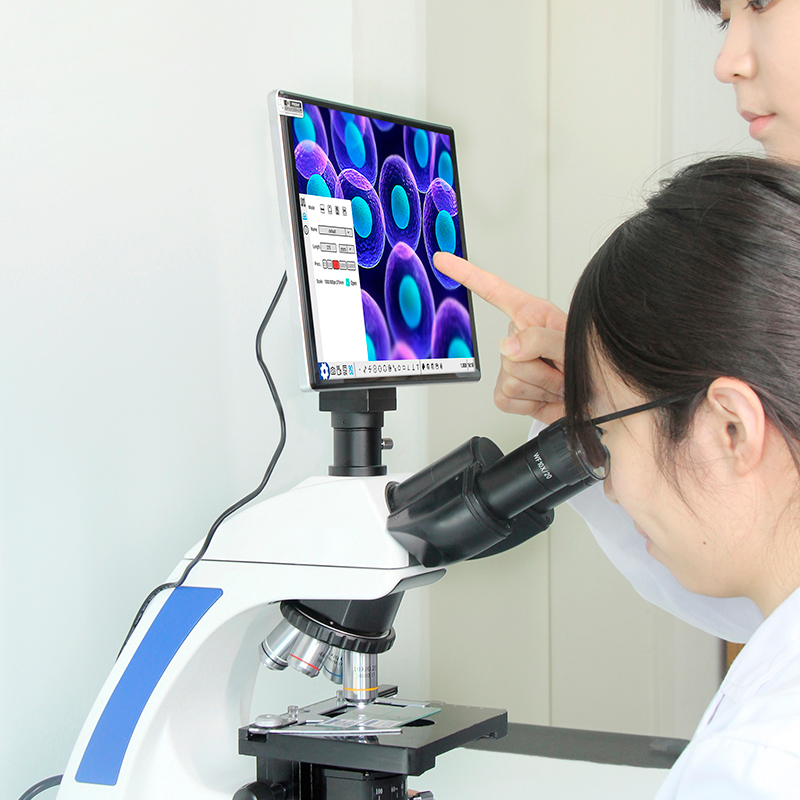

| UI Interface | Support User-friendly Mouse & Keyboard, And Touch Screen Operation | |
| Photo | 8.0M Image Capture | |
| Video | 1080P Video | |
| Storage | Still Photo And Video Recording, Picture Preview | |
| Marking | Point Coordinates, Crosshairs, Coordinate System, Text Annotations | |
| Length Measurement | Straight Line, Folded Line, Curve Length, Parallel Line Distance, Point Line Distance | |
| Geometric Measurement | Line Segment Length, Radius Fixed Circle, 2 Point Fixed Circle, 3 Point Fixed Circle, Concentric Circle, Radius Fixed Circle | |
| Geometric Area Measurement | Polygon, Rectangle | |
| Measurement System | Built-in S-Eye Software | |
| Package | Box Size | 237*169*10.5mm |
| Weight | 0.6kg | |
| Accessory | DC-12V/2A Power Adapter | |
| Laboratory Biological Microscope Optional Accessories | ||
| Eyepiece | WF16X/F.N.15mm | YR05782-op1 |
| WF20X/F.N.12mm | YR05782-op2 | |
| Nosepiece | Backward Quintuple Nosepiece | YR05782-op3 |
| Dark Field | Dark Field Condenser, Dry, N.A.1.25 | YR05782-op4 |
| Dark Field Condenser, Immersion, N.A.1.25~1.36 | YR05782-op5 | |
| Polarizing | Polarizer & Analyzer | YR05782-op6 |

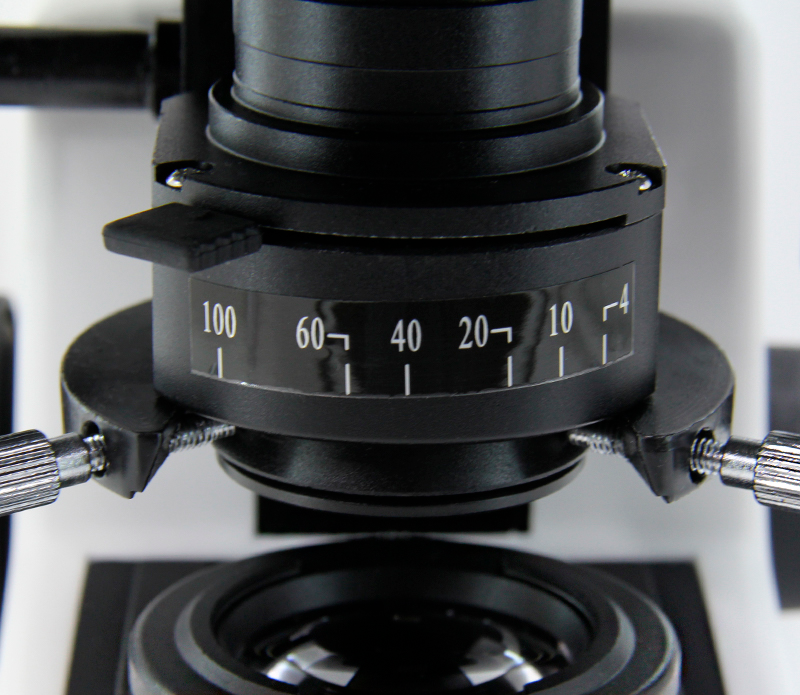

| Phase Contrast | Turret Disc Phase Contrast Condenser, For 10x,20x,40x,100x | YR05782-op7 |
| Infinity Plan Phase Contrast Objective 10x,20x,40x,100x | ||
| Centering Telescope 10x | ||
| Optional For B, T Only | ||
| Adapter | Eyepiece Tube Adapter | YR05782-op8 |
| C-Mount 1.0x | YR05782-op9 | |
Technical specifications
| Dimensions | L 53 × W 32.5 × H 53.5 cm |
|---|---|
| Weight | 11.5 kg |
| Manufacturer | Kalstein |
