Description

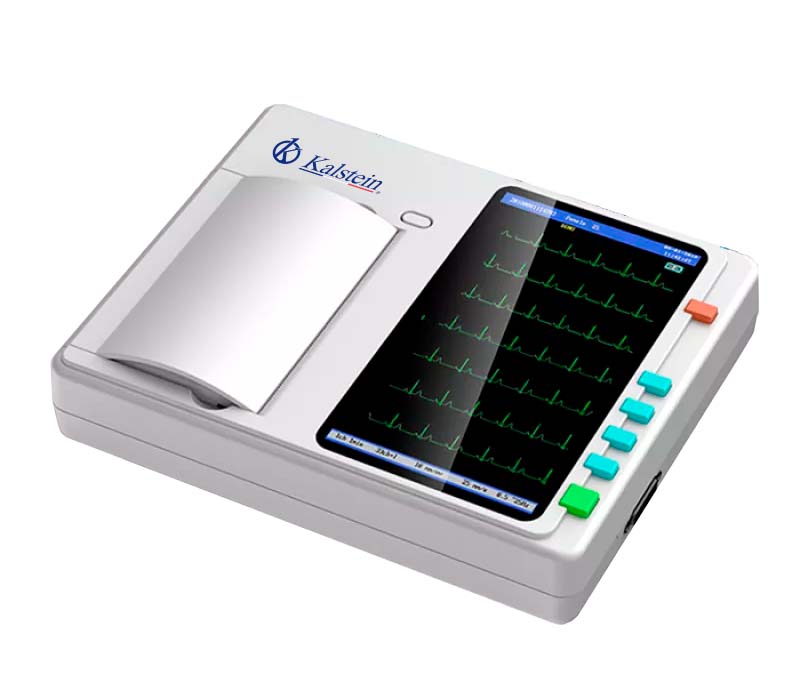

The YR05159 Medical ECG Machine 12 Derivations 6 Channel is an advanced diagnostic tool designed for accurate heart monitoring. This 6-channel ECG device can simultaneously gather 12-lead ECG signals, providing real-time insights into a patient’s heart condition. With its high-resolution 7-inch touch screen, the ECG machine offers user-friendly navigation and supports comprehensive ECG analysis capabilities. Its robust design makes it ideal for detecting abnormal heart rhythms and assessing chest pain causes, critical in both hospital settings and private practice.
Market Price
The pricing for ECG machines can vary significantly based on features, brand, and specifications. Typically, you can find high-quality ECG machines like the YR05159 within the range of $600 to $1100. While the market offers a broad price spectrum, our product stands out for its exceptional performance and reliability, making it a wise investment for medical professionals.
Frequently Asked Questions
What does a 6-channel ECG machine mean?
A 6-channel ECG machine can record and display six ECG leads simultaneously, offering a detailed view of the heart’s electrical activity.
Is the YR05159 ECG machine suitable for home use?
While the YR05159 is primarily designed for clinical and hospital use, trained individuals can use it in-home care settings with proper precautions.
Advantages and Disadvantages
Advantages:
The YR05159 offers simultaneous 12-lead ECG signal acquisition with defibrillator protection, a large touch screen, and multiple recording modes, ensuring detailed and safe patient analysis.
Disadvantages:
The primary limitation is its professional-grade design, which may not be suitable for untrained personnel.
Product Use in the Field
Ideal for hospitals and clinics, the YR05159 ECG machine is crucial for patient monitoring and diagnosing heart issues. Its portability allows for easy use in emergency scenarios, ensuring timely and accurate readings when they matter most.
Recommendations
To maximize the YR05159’s lifespan and functionality, regular maintenance and calibration are recommended. Ensure that users are adequately trained to interpret ECG results effectively. For more details or to receive a quote, check our Kalstein Plus platform.
Key Features
– 6-channel ECG machine capable of 12-lead simultaneous collection
– 7″ graphic LCD touch screen
– Multiple automatic and manual recording modes
– Integrated thermal printing system
– Designed with defibrillator protection and high input impedance
Technical Specifications
Model | YR05159 |
Screen | 7 ″ touch screen |
Guide | 12 standard leads |
Prospect Acquisition | Synchronously 12 leads |
Input Circuit | Floating; Defibrillator protection circuit |
Input Impedance | ≥50MΩ |
Input Circuit Current | ≤0.0.05μA |
Recording Mode | Automatic: 3CH × 4 + 1R, 3CH × 4, 3CHx2 + 2CHx3, 3CHx2 + 2CHx3 + 1R, 6CHX2; Manual: 3CH, 2CH, 3CH + 1R, 2CH + 1R; Rhythm: any selectable lead. |
Filter | EMG filter: 25Hz / 30Hz / 40Hz / 75Hz / 100Hz / 150Hz DFT filter: 0.05Hz / 0.15Hz AC filter: 50Hz / 60Hz |
CMRR | > 100dB |
Patient Current Leak | <10μA |
Input Circuit Current | <0.05 µA |
Frequent Response | 0.05Hz ~ 150Hz (-3dB) |
Sensitivity | 2.5mm / mV, 5mm / mV, 10mm / mV, 20mm / mV |
Anti-Baseline Drift | Automatic |
Constant Time | ≥3.2s |
Noise Level | <15μVp-p |
Paper Speed | 12.5mm / s, 25mm / s, 50mm / s |
Recording Mode | Thermal printing system |
Paper Specification | Sun-7031: 80mm x 20m paper roll Sun-7062: 120mm x 20m paper roll |
LCD Screen | 7 ″ graphic LCD |
Safety Rating | IEC60601-1 class I, type CF |
Power Supply | AC: 100 ~ 240V, 50 / 60Hz, 30VA ~ 100VA |
Fuse | AC220V ± 10% 2 * Φ5 × 20mm, T2A / 250V AC time delay |
