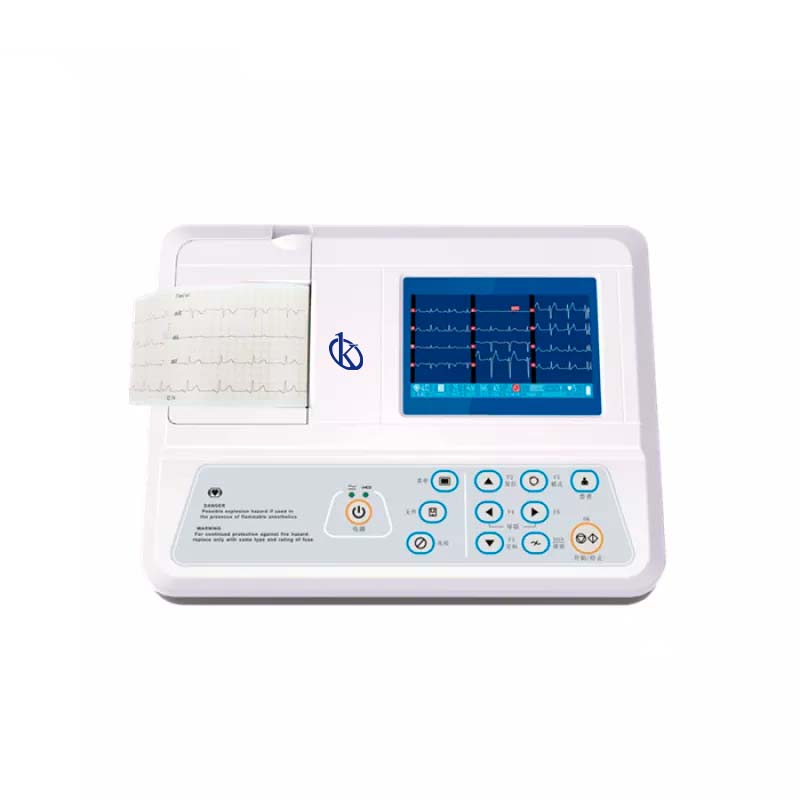

12-Lead ECG monitor USB / RS232 interface YR05160

Manufacturer: Kalstein

Description

The 12-Lead ECG Monitor USB / RS232 Interface YR05160 is a cutting-edge device designed for accurate and simultaneous collection of 12-lead ECG signals. This state-of-the-art electrocardiograph features a thermal printing system that provides clear ECG waveforms, making it a vital tool for detecting abnormal heart rhythms and investigating chest pain causes. By recording the heart’s electrical activity, it helps healthcare professionals assess heart conditions more effectively.

Market Price

The price range for a high-quality ECG monitor like the YR05160 generally falls between $500 and $800. This range reflects a balance between affordability and the advanced features that healthcare professionals require for precise diagnostics.

Frequently Asked Questions

Q: Can this ECG monitor be connected to a computer?
A: Yes, the YR05160 model comes with USB and RS232 interfaces, making it easy to connect to a computer for data management and analysis.

Q: Is this device portable?
A: Yes, its compact design allows for portability, facilitating its use in various clinical settings.

Advantages and Disadvantages

Advantages:

  • Simultaneous 12-lead ECG collection for better diagnostic accuracy.
  • USB and RS232 connectivity for easy data transfer.
  • Thermal printing for quick and high-quality waveform output.

Disadvantages:

  • Requires a power source or charged batteries for operation, limiting use in remote areas without electricity.
  • The initial setup and calibration might be complex for users unfamiliar with ECG equipment.

Product Use in the Field

Healthcare professionals often use the YR05160 ECG monitor in hospitals, clinics, and emergency settings to evaluate cardiac conditions in patients. Its ability to provide real-time data enhances decision-making, whether monitoring a patient’s heart function during a routine check-up or in urgent diagnostic scenarios.

Recommendations

To ensure the longevity and reliability of your ECG monitor, regular calibration checks are recommended. Familiarize yourself with the user manual to maximize functionality and consider using the Kalstein Plus platform for easy access to support and automatic quotation requests.

Features

  • Simultaneous 12-lead ECG signal collection.
  • USB/RS232 interfaces for versatile connectivity.
  • High-definition thermal printing system.
  • Compact and portable design.
  • User-friendly interface for ease of operation.

Technical Specifications

Model YR05160
Guide 12 standard conductors
Calibration voltage : 1mV ± 2%
Voltage tolerance ≥ ± 500mV
Constant time ≥3.2s
Frequent response 0.05 ~ 160Hz (-3db)
Noise level <15μVp-p
Sensitivity valve ≤20μV
Sensitivity 2.5, 5, 10, 20mm / mV
Interchannel interference ≤0.5mm
Paper speed 6.25, 12.5, 25, 50mm / s (± 3%)
Input dynamic range ± 10Vpp
Filter: AC Filter 50Hz / 60Hz

Additional information

Weight 6 kg
Dimensions 33 × 39 × 20 cm
