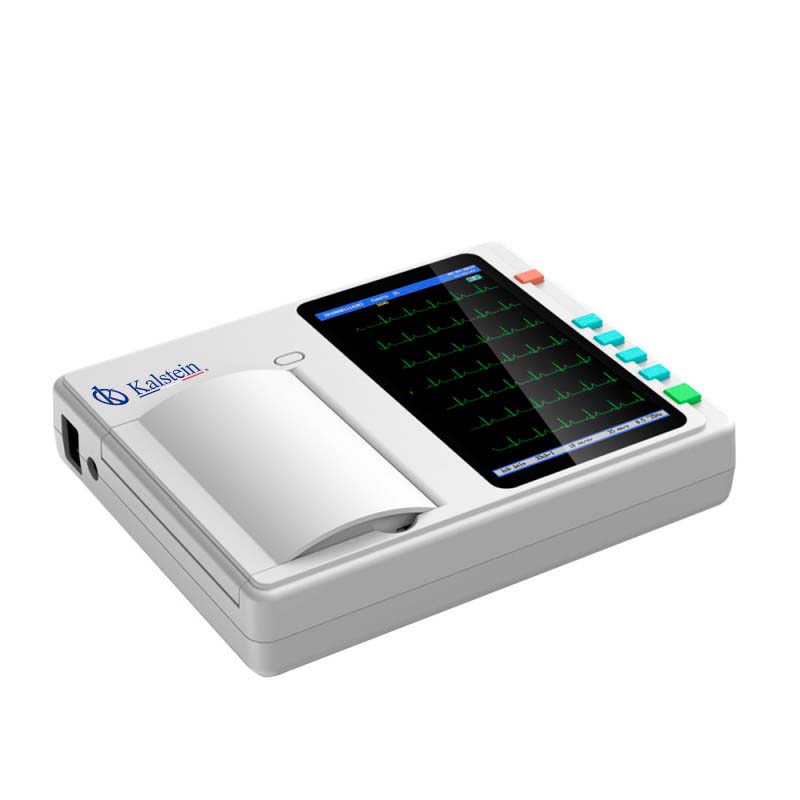

YR05158 03 Channel Electrocardiograph Touch Screen ECG Machine

Manufacturer: Kalstein

Description

The YR05158 03 Channel Electrocardiograph Touch Screen ECG Machine is a cutting-edge medical device designed to provide precise cardiac monitoring. With its ability to simultaneously print three waveforms, this ECG machine stands out for its efficiency. Its 7-color LCD touchscreen offers a user-friendly experience, making it ideal for quick and accurate diagnostics. The machine can operate in manual, automatic, and arrhythmia analysis modes, supporting 12 leads to ensure comprehensive cardiac assessments. Additionally, it boasts advanced features such as anti-baseline drift and automatic filter adjustment, all wrapped in a sleek and durable design.

Market Price

The price for 3-channel ECG machines like the YR05158 generally ranges from 500 USD to 800 USD, depending on the included features and the seller. This competitive pricing makes it accessible for both small and larger medical practices looking for high-quality, reliable equipment. To get a precise quote and take advantage of special offers, reach out to us or check the automated quote option through Kalstein Plus.

Frequently Asked Questions

What does the “3-channel” feature mean? – It refers to the machine’s capability to process and print three different waveforms simultaneously, providing a comprehensive view of the patient’s cardiac health.

Is the YR05158 ECG machine compatible with other software? – Yes, it supports optional ECGNET software for enhanced data management and analysis.

What is the warranty on this product? – The device comes with a lifetime warranty, ensuring long-term use and support.

Advantages and Disadvantages

Advantages: The YR05158 ECG machine is known for its accuracy, ease of use, and extensive data storage capacity, capable of holding records for up to 30,000 patients. The touchscreen interface simplifies operations, and its lightweight design ensures portability.

Disadvantages: Despite its many strengths, users might find the lack of a safety standard certificate concerning, and the “Cheap Price Animal ECG” type might not appeal to all customer segments.

Product Use in the Field

The YR05158 is perfect for use in hospitals, clinics, and even veterinary settings due to its robust interpretation of cardiac signals. Its ability to support multiple analysis modes makes it versatile for varied diagnostic needs. Furthermore, the device’s capability to connect to SD cards and USB disks allows for easy data transfer and sharing.

Recommendations

To ensure optimal performance of the YR05158 ECG machine, perform regular calibrations and follow maintenance guidelines. Utilize the optional ECGNET software for comprehensive analysis and seamless integration with patient management systems. Always store the device in climates that respect its operational temperature range to prolong its lifespan.

Characteristics

– 7-inch touchscreen display

– 3-channel waveform printing

– Capable of manual, auto, and arrhythmia analysis modes

– Lightweight and portable design

– Supports storage and replay for 30,000 patients

Technical Specifications

Model YR05158
Power supply Electric
Warranty Forever
After-sales service Return and replacement
Material metal, plastic
Duration 1 year
Quality certification this
Instrument Classification Class II
Safety standard None
Type Cheap Price Animal ECG
Monitor 7-color LCD touchscreen Super slim design
Points of sale Support SD card, USB disk
Analysis modes Manual / Auto / Arrhythmia
Guides 12 Guides
Software ECGNET Optional
Anti-baseline drift Automatic
Interface USB/RS232
Storage 30,000 patients save / replay
Recording 112mm *20m
Elements specification
Characteristics 7 ″ display,
touch screen
Support Ecg analysis capabilities
Guides 12 Guides
Acquisition of potential customers synchronously 12 leads
Input circuit Floating; Protection circuit against the effect of the defibrillator
Input impedance ≥50MΩ
Input circuit current ≤0.0.05μA
Recording mode Automatic: 3CH × 4 + 1R, 3CH × 4, 3CHx2 + 2CHx3,3CHx2 + 2CHx3 + 1R, 6CHX2;
Manual: 3CH, 2CH, 3CH + 1R, 2CH + 1R;
Rhythm: any selectable lead.
Filter EMG Filtro: 25 Hz / 30 Hz / 40Hz/75 Hz / 100 Hz / 150Hz
DFT Filtro: 0.05 Hz/ 0.15 HzAC Filtro: 50 Hz / 60Hz
CMRR >100dB
Patient current leak <10μA
Input circuit current <0.05µA
Frequent response 0.05Hz~150Hz (-3dB)
Sensitivity 2.5mm/mV, 5 mm/mV, 10 mm/mV, 20 mm/mV
Anti-baseline drift Automatic
Constant time ≥3.2s
Noise level <15μVp-p
Paper speed 12.5 mm/s, 25 mm/s, 50 mm/s
Recording mode Thermal printing system
Paper specification 80mmx20m paper
roll 120mmx20m paper roll

Additional information

Weight 3 kg
Dimensions 31 × 27 × 17 cm
