Description

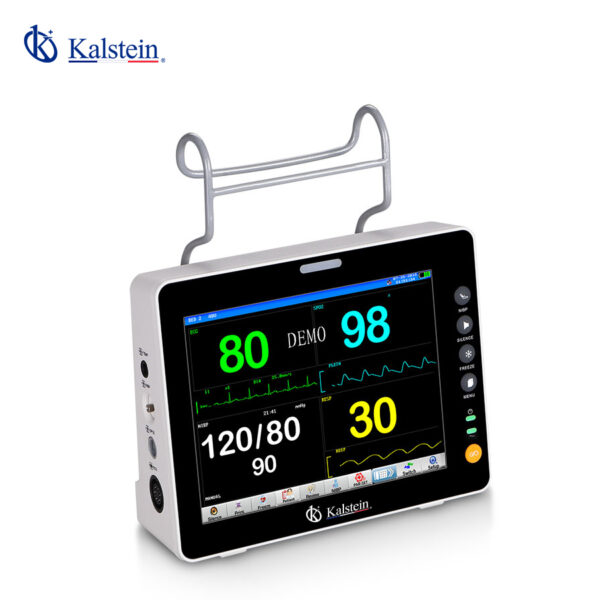

The Patient Monitors YR02170, YR02171, and YR02172 offer advanced multi-parameter patient monitoring with features that ensure precise and reliable readings in any clinical setting. With a multi-channel display and a large-font interface, these monitors are designed for ease of use, providing real-time data analysis such as ST and arrhythmia assessments. Key features include drug dose calculation, titration tables, and OxyCRG dynamic views. Additionally, these monitors are equipped with sophisticated respiration monitoring systems featuring apnea alarms, and they offer the flexibility of both wired and wireless networking solutions. An added convenience is the plug-in rechargeable battery, making these monitors versatile for use in various healthcare environments.
Market Price
In the competitive field of medical equipment, the average market price for advanced patient monitors like the Patient Monitors YR02170, YR02171, and YR02172 can range from $900 to $1700 USD. This range reflects the diverse capabilities and technological advancements incorporated into these models, offering a balance of affordability and cutting-edge care solutions for the modern healthcare provider.
Frequently Asked Questions
How do the monitors connect to hospital networks?
The devices support both wired and wireless connections, allowing seamless integration into hospital IT infrastructures.
What kind of battery does each monitor use?
They are equipped with a plug-in rechargeable battery, offering both AC and DC power options for uninterrupted monitoring.
Advantages and Disadvantages
Among the main advantages, these monitors provide comprehensive monitoring capabilities in a user-friendly interface. They also offer flexible networking options. However, some may consider the initial setup, including network configurations, a bit complex without IT support.
Product Use in the Field
In practical healthcare scenarios, these monitors enhance patient care by providing real-time analysis of critical health parameters such as ECG, respiration, and SpO2 levels. Their portability and rechargeable battery make them ideal for both bedside and mobile use within hospital wards.
Recommendations
To maximize the utility of these patient monitors, it is recommended to routinely update their software and perform regular maintenance checks to ensure accuracy and reliability. Healthcare providers are encouraged to request a quote on Kalstein Plus to get started with these advanced monitors.
Features
- Multi-channel display with big font interface
- Advanced arrhythmia and ST analysis
- Comprehensive drug dose calculation feature
- Respiration monitoring including apnea alarms
- Rechargeable battery with AC/DC power options
- Supports wired and wireless network configurations
Technical Specifications
| Model | YR02170 | YR02171 | YR02172 | |
|
ECG
|
Lead mode | 5 Leads(RA,LA,LL,RL,V) | ||
| Connection method | I, II, III,AVR,AVL,AVF,V | |||
| Lead Mode | 3 Leads (RA,LA,LL) | |||
| Connection method | I, II,III | |||
| Waveform | 1ch | |||
| Gain | x250, x500, x1000, x2000 | |||
| HR Range | Adult: 15~300bpm | |||
| Neo/Ped | 15~350bpm | |||
| Accuracy | ±1% or ±1bpm | |||
| Resolution | 1bpm | |||
| Sensitivity | >200(uVp-p) | |||
| Differential input impedance | ≥5MΩ | |||
| ST segment Monitoring Range | ||||
| Measure Range | -2.0~+2.0mV | |||
| Measure Accuracy | -0.8mV~+0.8mV | |||
|
Heart Rate
|
Measuring range | 0~350bpm | 20~300bpm | |
| Accuracy | ±1bpm | |||
| Resolution | 1bpm | |||
| Sensitivity | >200UVp-p | |||
|
Respiration
|
Method | Impedance between R-F(RA-LL) | ||
| Differential Input Impedance | >2.5MΩ | |||
| Measuring Impedance Range | 0.3~3.0 MΩ | |||
| Base line Impedance Range | 200~4000Ω | |||
| Bandwidth | 0.1~2.5Hz | |||
| Resp. Rate | Adult: 2~120BrPM | |||
| Neo/Ped | 2~150BrPM | 0~150BrPM | ||
| Resolution | 1 BrPM | |||
| Accuracy | ±2 BrPM | |||
| Alarm | 10~40S | |||
|
NIBP
|
Method | Oscillometric | ||
| Mode | Manual/Auto/STAT | |||
| Measuring Interval in AUTO Mode | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | |||
| Measuring Period in STAT Mode | 5 Min | |||
| Pulse Rate Range | 40~240bpm | |||
| Alarm Type | SYS, DIA, MEAN | |||
| Resolution | ||||
| Pressure | 1mmHg | |||
| Accuracy | Maximum Mean error: 5mmHg | |||
| Maximum Standard deviation | 8mmHg | |||
|
SPO2
|
Display | Number of SPO2,waveform of capacity,Pulse | ||
| Measuring range | 0~100% | |||
| Resolution | 1% | |||
| Accuracy | 70~100% (±2%) | |||
| Alarm system | Audio-video alarm | |||
| Pulse rate range | 0~300bpm | |||
|
TEMP
|
Channel | 2 | ||
| Measuring and Alarm Range | 0~50ºC | |||
| Resolution | 0.1ºC | |||
| Accuracy | 0.1ºC | |||
| Actualization interval | about 1 Second. | |||
| Average Time Constant | <10 Second. | |||
