Doppler Ultrasound Fetal Monitor YR02181

Manufacturer: Kalstein

Description

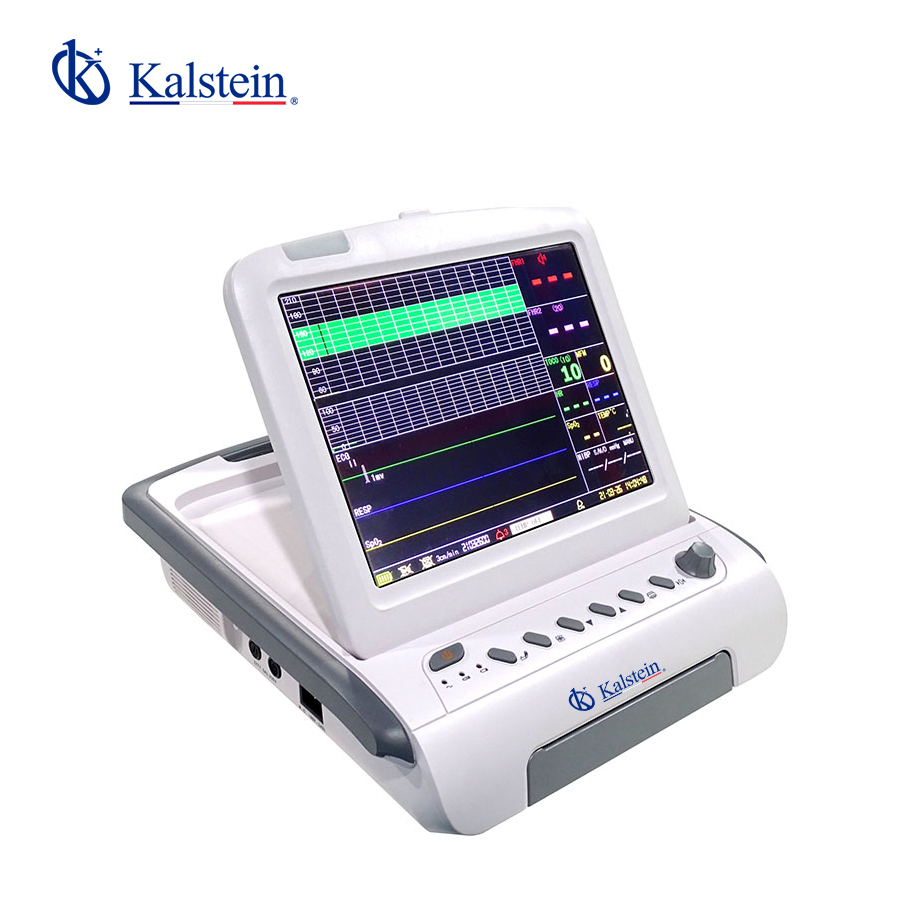

Doppler Ultrasound Fetal Monitor YR02181 is a state-of-the-art device designed to enhance prenatal care by providing accurate and comprehensive fetal monitoring. Featuring a 12.1-inch color TFT screen that folds 90 degrees for convenience, this monitor offers a resolution of 800×600 pixels. It can trace up to six waveforms, and its standard configuration includes FHR1, TOCO, FM, and a recorder. For added functionality, optional configurations come with a fetal stimulator, FHR2, and a trolley. The monitor also supports a wide range of measurements, including TOCO, SpO2, HR, NIBP, and temperature, ensuring comprehensive monitoring of both the mother and fetus during pregnancy.

Market Price

The market price for high-quality fetal monitors like the Doppler Ultrasound Fetal Monitor YR02181 typically ranges from $1600 to $2500 USD. This advanced monitor offers an excellent balance between cost and functionality, making it a worthwhile investment for healthcare providers looking to offer the best care to their patients.

Frequently Asked Questions

What is the measurement accuracy of this monitor? The HR measurement is accurate within ±2 bpm and the SpO2 measurement within ±3%.

Can this monitor store and playback data? Yes, the monitor can store and playback data, with the LCD displaying FHR trace, TOCO trace, FM, doctor event marks, and more.

Advantages and Disadvantages

One of the main advantages of the Doppler Ultrasound Fetal Monitor YR02181 is its comprehensive monitoring capabilities, compact design, and optional configurations like a fetal stimulator. However, some users may find the learning curve steep due to its wide range of features.

Product Use in the Field

This monitor is widely used in hospitals and clinics to provide reliable and detailed fetal monitoring. With its advanced features, it helps healthcare professionals assess fetal well-being accurately, ensuring timely interventions when necessary.

Recommendations

To maximize the device’s lifespan, regular maintenance is recommended, along with ensuring the monitor is calibrated correctly before each use. Incorporating it into the Kalstein Plus platform can streamline procurement and servicing processes.

Features

  • 12.1 inches color TFT screen
  • Resolution: 800×600
  • Trace capacity: Up to 6 waveforms
  • Standard configuration: FHR1, TOCO, FM, Recorder
  • Optional additions: Fetal Stimulator, FHR2, Trolley
  • SpO2 accuracy: ±3%
  • HR accuracy: ±2 bpm
  • NIBP measurement range: SYS 6.7~32.0kPa(50~240mmHg)
  • Temperature range: 0~50 ºC
  • Net weight: 3.5 kg

Technical Specifications

Model YR02181
TOCO Measurement Range: 0-100 units
SpO2 Measurement Measurement Range: 70%~99%
Measure Accuracy: ±3% error
HR Measurement Measurement Range: 30bpm~240bpm
Measure Accuracy: ±2 bpm
NIBP Measurement Measurement Range SYS 6.7~32.0kPa(50~240mmHg)
MEAN: 3.4~26.6kPa(25~200mmHg)
DIA: 2.0~24.0ka(15~180mmHg)
Temperature Temperature Range: 0~50 ºC
Resolution: 0.1 ºC
Accuracy: 0.1 ºC (excluding transducer error)
Display LCD shows FHR trace, TOCO trace, FM, Doctor Event Mark, Time, Volume, monitor state. Can store and playback.
Dimension: 350L×320W×85H(mm)
Net Weight: 3.5 kg

Additional information

Weight 9 kg
Dimensions 52,5 × 44,5 × 29,5 cm
