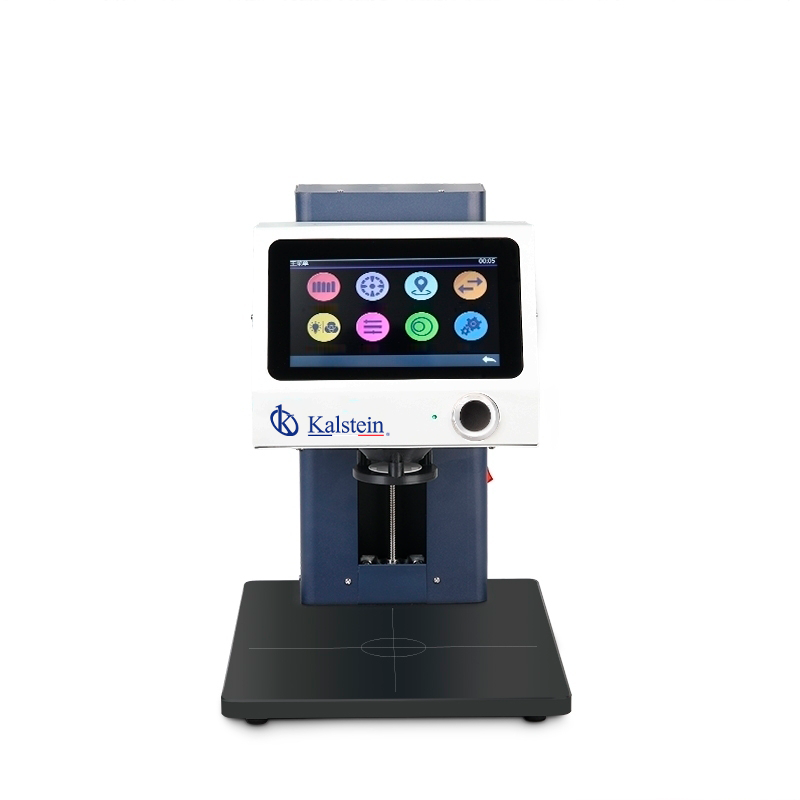

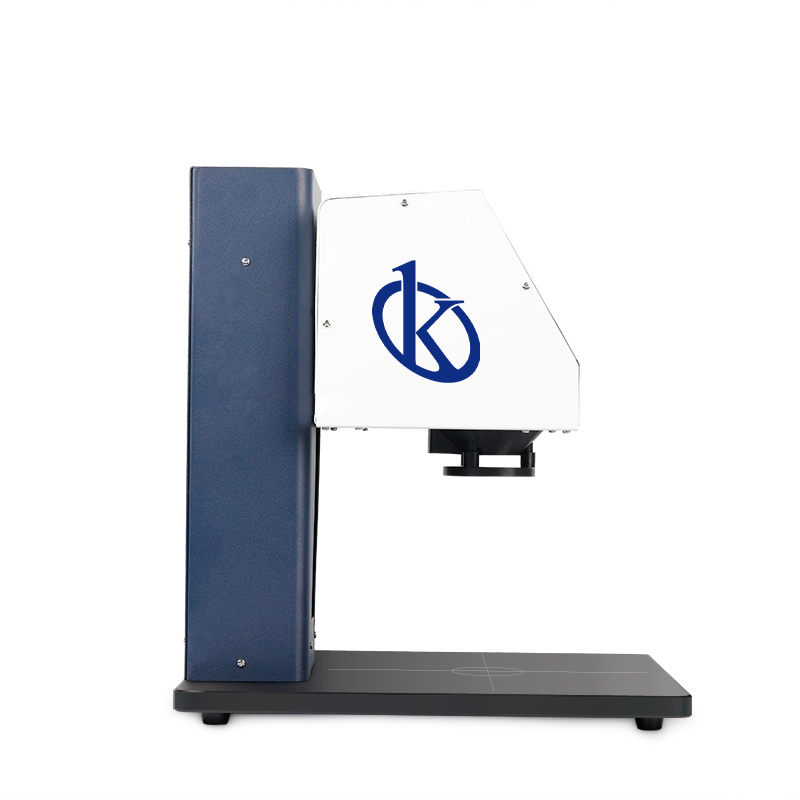

Non-contact Benchtop Spectrophotometer YR05483

The YR05483 non-contact desktop spectrophotometer is an advanced and versatile tool developed by Kalstein, designed to perform precise color measurements using 45/0 optical geometry. Thanks to its innovative design, this spectrophotometer delivers results without any contact between the measuring probe and the sample, making it ideal for analyzing liquids, sauces, powders, and other materials prone to damage or contamination. Equipped with a full-spectrum LED light source and a 256-element CMOS sensor, the YR05483 guarantees high precision and stability in each measurement. Its 7-inch TFT touch interface provides a user-friendly and efficient experience, displaying real-time data for immediate analysis, thus facilitating quality control in R&D laboratories as well as in automated production lines.

Market Price

The YR05483 spectrophotometer is competitively priced, ranging from $9,680 to $9,700 USD, depending on the specific configurations and accessories required. This price range makes it a strategic investment for companies seeking precision in color analysis in industrial or laboratory environments. For a personalized quote tailored to your needs, visit the Kalstein Plus platform, where you can request a detailed and obligation-free quote.

Frequently Asked Questions

• Is it suitable for measuring liquids and powders? Yes, the YR05483 is designed to perform precise, non-contact measurements on liquids, powders, and other materials prone to damage or contamination.
• How much data storage capacity does it have? It can store up to 40,000 measurements, with 30,000 in sample mode and 10,000 in continuous statistics mode.
• How accurate is the measurement? The measurement repeatability is very high, with a chromaticity value deviation within ΔE*ab 0.05.

Advantages and Disadvantages

Among its main advantages, the YR05483 non-contact spectrophotometer stands out for its non-contact measurement capability, thus preventing damage or cross-contamination of samples. Additionally, its adjustable design allows it to adapt to the height of different samples, while its data storage capacity and various measurement modes (sample, quality control, and continuous statistics) make it a versatile solution. As a downside, it is advisable to perform regular calibrations in high-use environments to maintain optimal accuracy.

Field Use

The YR05483 is ideal for industries such as cosmetics, food, plastics, ceramics, and more, where it is necessary to measure the color of sensitive or moving products. Its lighting system and CMOS sensor ensure consistent and reliable data, which is essential for quality control and product development in sectors requiring high standards of color accuracy and visual appearance.

Recommendations

To maximize the performance of the YR05483 spectrophotometer, periodic calibrations are recommended, and it should be kept in a clean and controlled environment. Correctly adjusting the measurement height according to the sample type allows users to take full advantage of its non-contact measurement capability and maintain accuracy. Request a personalized quote now through Kalstein Plus and discover how this spectrophotometer can optimize your quality control processes, ensuring reliable, high-precision results in every operation.

Technical Specifications

Model	YR05483
Illumination system	45/0 method(45 ring-shaped illumination, vertical viewing);Conforms to CIE No.15,GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893,GB/T 18833
Features	45/0 non- contact benchtop spectrophotometer can achieve precise non- contact measurement between the measuring probe and the sample like liquids, sauces, powders, etc. It can be applied for accurate color analysis and transmission In laboratories and R & D industries; It can also be used for accurate color measurement and quality control of automated production lines; It is widely used in cosmetics, fruits and vegetables, food hygiene, plastic electronics, paint and ink, printing, ceramics and other industries.
Light Source	Full spectrum LED light
Spectrophotometric Mode	Concave Grating
Sensor	256 Image Element Double Array CMOS Image Sensor
Wavelength Range	400~700nm/10nm output
Reflectance Range	0~200%
Measuring Aperture	Φ20mm
Non-contact Distance	7.5mm
Sample Height	0~150mm
Distance Adjustment Method	Manual adjustment(test height can be stored)
Measuring mode	Sample mode/QC Mode/Continuous statistics mode
Locating Method	Camera Locating
Color Space	CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB
Color Difference Formula	ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE(Hunter)
Other Colorimetric Index	WI(ASTM E313，CIE/ISO,AATCC,Hunter)，YI(ASTM D1925，ASTM 313),TI(ASTM E313，CIE/ISO),
	Metamerism Index MI, Staining Fastness, Color Fastness, Color Strength, Opacity
Observer Angle	2°/10°
Illuminant	D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6, F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30)
Displayed Data	Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, Chromaticity Graph, Color Simulation, PASS/FAIL Result, Color Offset
Measuring Time	About 1.5s
Data Storage	Sample mode + QC mode: 30,000; Continuous statistics mode: 10,000
Repeatability	Spectral reflectance: Standard deviation within 0.08%
	Chromaticity value: Within ΔE*ab 0.05 (When a white calibration plate is measured 30 times at 5 second intervals after white calibration)
Inter-instrument Error	Within ΔE*ab 0.25（Average for 12 BCRA Series II color tiles)
Measurement Mode	Single Measurement, Average Measurement(2 ~ 99 times)
Dimension	330*250*370mm
Weight	About 10 kg
Power Supply	DC 24V, 3A Power Adapter
Illuminant Life Span	5 years, more than 3 million times measurements
Display Screen	7″ TFT Capacitive Screen-touch Display
Data Port	USB/RS-232
Language	Simplified Chinese,Traditional Chinese,English
Working Environment	Temperature: 0~40℃; Humidity: 0~85% (No Condensation); Altitude < 2000m
Storage Environment	Temperature: -20~50℃; Humidity: 0~85% (No Condensation)
Standard Accessory	Power Adapter, User Manual, USB cable, Standard Calibration Board, Black Calibration Cavity,
Notes	The specifications are subject to change without notice.
