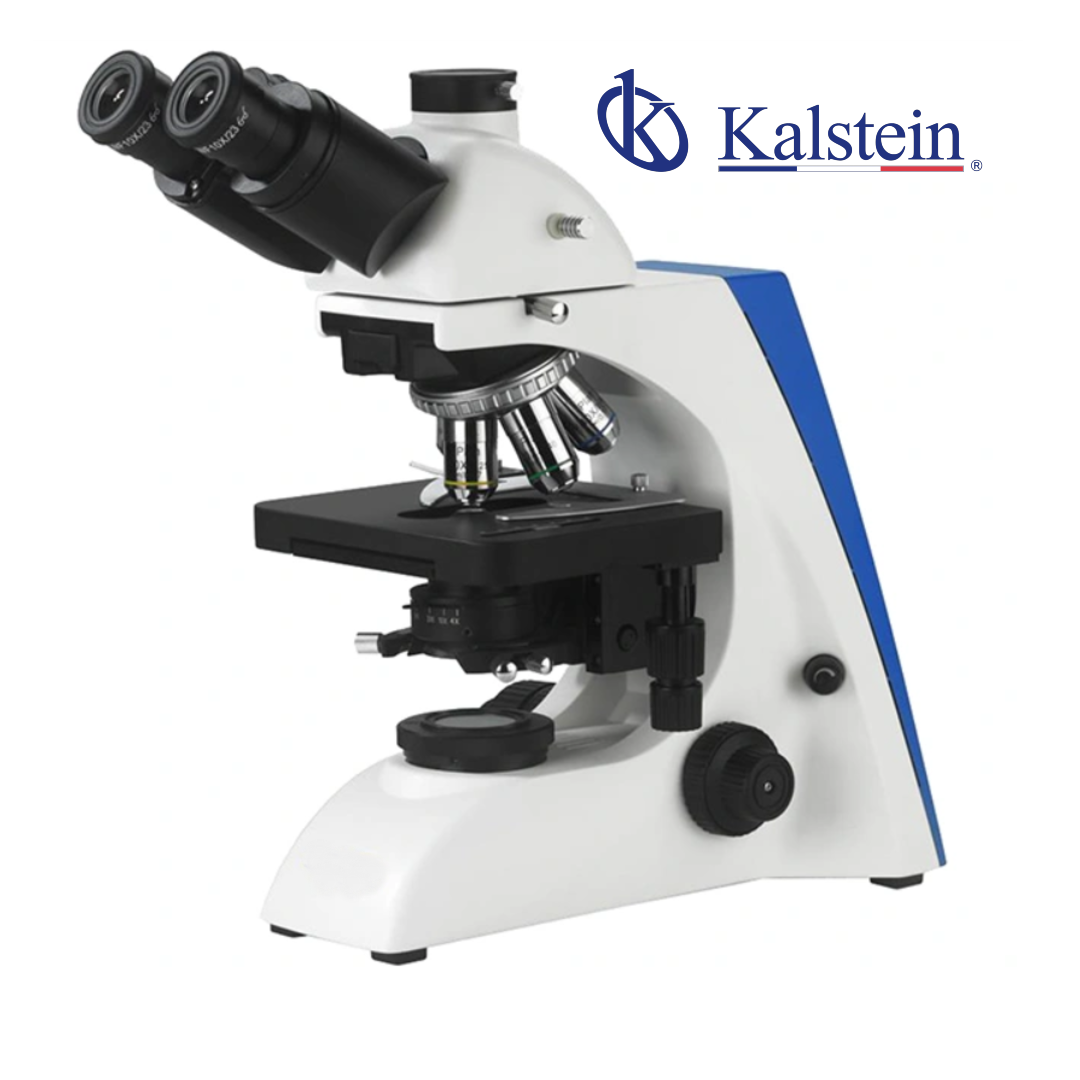

Laboratory Biological Microscope YR06683

The YR06683 Laboratory Biological Microscope is a high-end research instrument designed with a modular structure that allows for seamless upgrades even after purchase. Engineered for demanding laboratory environments, it is the ideal choice for clinics, universities, and pathology centers. Featuring a large-sized head and advanced SWF10x/22mm eyepieces, it provides a superior field of view and comfort for long observation sessions. Whether used for routine diagnostics or complex research, the YR06683 delivers high-resolution imagery and exceptional mechanical stability, making it a reliable pillar for any scientific workstation.

Design and Technology (or Functionality)

The YR06683 stands out for its creative engineering and versatile imaging options:

• Advanced Optical System: Equipped with Infinity Plan Objectives (4x, 10x, 20x, 40x, 100x) and a large 5-hole nosepiece that includes a slot for polarizing analyzers.
• Trinocular Light Splitting: Users can choose between a fixed split (Eyepiece 80% : Photo 20%) for simultaneous viewing or a switchable split (E100:P0 / E0:P100) to direct 100% of the light to the camera for high-speed photo capture.
• Innovative 100X Water Objective: An optional water-immersion 100x objective is available, eliminating the need for oil and making cleaning significantly easier after use.
• Rackless Mechanical Stage: The 182x140mm integrated stage lacks external racks, providing a safer and smoother movement experience with a dual slide holder.
• Safety Features: Eyepiece tubes are equipped with fixing screws to prevent expensive eyepieces from falling during transport.

Frequently Asked Questions (FAQ)

1. Can this microscope be upgraded to a fluorescence system? Yes. The modular design allows it to be upgraded to various fluorescence configurations (A16.2604 series) using either Mercury or LED light sources.
2. What is the benefit of the swing-out condenser? The swing-out condenser (N.A. 0.9/0.13) allows you to control the light beam more precisely according to the objective's magnification, ensuring perfect illumination for both low and high powers.
3. Does it support outdoor use? When equipped with the 3W LED Koehler illumination option, the microscope can be powered by a safety low-voltage charger or even a power bank for field research.

Advantages and Disadvantages

Advantages:

• Modular Growth: Easily add phase contrast, dark field, or fluorescence attachments as your needs change.
• User Safety: Includes an optional ECO auto-power off system that detects user proximity to save energy and bulb life.
• Superior Field of View: Large 22mm field of view eyepieces provide more information at a glance.

Disadvantages:

• Initial Setup: Due to its precision components (like the swing-out condenser), it requires a more detailed initial calibration than entry-level models.
• Weight: At 10 kg, it is a robust, stationary unit not intended for frequent handheld relocation.

Field Use and Recommendations

This microscope is highly recommended for clinical pathology labs, hospital diagnostics, and higher education research. It excels in hematology, histology, and microbiology. Operational Recommendation: For maximum precision in photo documentation, we recommend using the switchable light split (100% to camera) when working with low-light samples. Always ensure the eyepiece fix screws are tightened before moving the unit within the lab.

Technical Specifications

Parameter	YR06683
Head	Seidentopf Trinocular, 30 Degree Inclined, 360 Degree Rotatable
Interpupillary Distance	48 mm - 76 mm
Light Split	Switchable E100:P0 / E20:P80
Eyepieces	SWF10x/22mm (Dia. 30mm), High Eyepoint, Diopter Adjustable
Nosepiece	Quintuple (5 Positions)
Objectives	Infinity Plan 4x, 10x, 20x, 40x(S), 100x(S, Oil)
Optional Objectives	Plan 2.5x, Plan 60x, Plan 100x (Water Immersion)
Mechanical Stage	Rackless Integrated Stage, 182 x 140 mm
Stage Travel Range	77 x 52 mm, Double Slide Holder
Focusing	Coaxial Coarse and Fine, Fine Division 0.002 mm
Condenser	Swing-out Condenser, N.A. 0.9/0.13 with Iris Diaphragm
Illumination	6V30W Halogen Koehler (Optional 3W LED)
Power Supply	Wide Voltage 100V - 240V
Energy System	Optional ECO Auto Power Off (10 min Sensor)
Filters	Blue (45 mm Diameter included)
Package Size	520 x 475 x 285 mm
Net Weight	10 kg
Gross Weight	12 kg
