Spectrophotometers
Spectrophotometers are essential instruments used in laboratories for measuring the intensity of light at different wavelengths. They play a crucial role in various scientific fields, including chemistry, biology, and environmental science, enabling precise analysis of substances based on their light absorption characteristics.
Choosing the right spectrophotometer can significantly affect the accuracy and reliability of your experimental results. In this guide, we will explore different types of spectrophotometers, critical factors to consider when selecting one, and showcase some of the best options available for your laboratory needs.
Types of spectrophotometers your laboratory may need
Double beam
Double beam spectrophotometers are designed for high precision and stability, allowing simultaneous measurement of a sample and a reference. This design minimizes errors caused by light fluctuations, making them ideal for quantitative analysis in various applications, including pharmaceuticals and environmental testing.
These instruments often feature advanced optics and software capabilities, enhancing their versatility and performance. Laboratories that require reliable and accurate results frequently prefer double beam spectrophotometers for their superior measurement accuracy.
Unique beam
Unique beam spectrophotometers utilize a single beam of light directed at the sample, with measurements taken before and after passing through the sample. This design is often simpler and more cost-effective, making it suitable for routine analysis and educational purposes.
While unique beam spectrophotometers may not offer the same level of precision as double beam models, they are highly effective for many applications, especially in teaching laboratories where budget constraints are a consideration.
What you should know before selecting a spectrophotometers and making an investment
Key factors to consider
When selecting a spectrophotometer, consider factors such as wavelength range, resolution, and light source type. Different applications may require specific features, such as UV or visible light capabilities. Understanding your laboratory's needs will help you choose the most suitable instrument.
Additionally, evaluate the ease of use, software compatibility, and available support from the manufacturer to ensure that you can operate the equipment effectively and efficiently.
Market price range
The price of spectrophotometers can vary significantly based on their specifications and capabilities. Basic models may start at a few hundred dollars, while high-end instruments can cost several thousand. It's essential to establish a budget and compare features to find the best value for your investment.
Consider additional costs such as maintenance, calibration, and potential accessories that may be needed to operate the spectrophotometer effectively, which can impact the overall cost of ownership.
Value for money
Investing in a spectrophotometer should provide a balance between cost and performance. It's crucial to evaluate what features are necessary for your laboratory’s specific applications and whether the benefits justify the price. Look for models that offer the best combination of accuracy, reliability, and user-friendly features.
Reviewing user feedback and expert opinions can also help you determine if a particular model delivers the expected performance and value, ensuring a wise investment.
Expected lifespan based on use and maintenance
The lifespan of a spectrophotometer can depend on its usage frequency and how well it is maintained. Regular calibration and proper cleaning can extend its operational life, while neglect can lead to premature wear and costly repairs.
Understanding the manufacturer's recommendations for maintenance and following best practices will help ensure that your spectrophotometer remains in optimal working condition for many years, providing reliable results for your laboratory applications.
SPECTROPHOTOMETERS KALSTEIN
Discover spectrophotometers for your laboratory
Explore our range of high-quality spectrophotometers designed to meet the diverse needs of modern laboratories. Our products are engineered for precision and reliability, ensuring accurate results in various applications. Whether you require a double beam or unique beam spectrophotometer, we have the ideal solution for your laboratory.
YR06702//YR06702-3 Series Single and Dual Beam UV-Visible Spectrophotometer
Kalstein YR06702 series of UV-Visible Spectrophotometers represents the gold standard in photometric analysis for laboratories demanding absolute prec
View productOur best-selling spectrophotometers
YR06702//YR06702-3 Series Single and Dual Beam UV-Visible Spectrophotometer
Design and Technology: Cutting-Edge Functionality
The YR06702 series design has been optimized to minimize stray light (≤0.05%T) and maximize resolution. While the base model offers a bandwidth of 1.8 nm, the premium YR06702-3 version allows for variable bandwidth (0.5/1/2/4 nm), ideal for research requiring extremely fine peak discrimination. The robust optical system and the option for data output via Bluetooth or USB ensure quick and error-free integration of results into your LIMS.Frequently Asked Questions (FAQ)
- What is the main difference between the single-beam and dual-beam models? The single-beam (YR06702) is ideal for routine high-speed measurements, while the dual-beam (YR06702-1/3) automatically compensates for light source fluctuations and solvent noise, offering greater stability in complex analyses.
- Does it require external software to operate? No, it has a built-in standalone operating system. However, we offer optional PC software for deeper data analysis and regulatory compliance.
Advantages and Disadvantages
Advantages:- High Precision: Wavelength accuracy up to ±0.1 nm in higher models.
- Modern Interface: Color touchscreen that eliminates the need for peripherals.
- Preheating: Requires 2 hours to reach maximum stability of 0.001 A/h.
- Weight and Size: As they are high-precision equipment, they require a fixed and level table space.
Product Use in the Field
In clinical settings , these spectrophotometers are essential for quantifying nucleic acids and proteins. In the environmental industry , they are used to detect contaminants in water using highly linear calibration curves. Thanks to their photometric range of -0.3 to 3 Å, researchers can analyze samples with varying concentrations without excessive dilution, optimizing turnaround time in the laboratory.Recommendations and Maintenance
To ensure the longevity of your YR06702 Series Spectrophotometer , it is recommended that you:- Electrical Stabilization: Use a voltage regulator to protect deuterium and tungsten lamps against power spikes.
- Optical Cleaning: Clean the cuvettes with spectroscopic grade solvents to avoid interference in the reading of diffuse light.
- Periodic Calibration: Although the equipment is highly stable, a semi-annual validation of the wavelength accuracy using certified filters is suggested.
Technical Specifications
| Model | YR06702 | YR06702-1 | YR06702-2 | YR06702-3 |
| Optical System | Keep it simple | Double the Do | Double the Do | |
| Light Source | Tungsten (W) and Deuterium (D2) Lamp | |||
| Wavelength Range | 190-1100 nm | |||
| Bandwidth | 1.8 nm | 1 nm | 0.5 / 1 / 2 / 4 nm | |
| Screen | 7-inch touchscreen | 10-inch touchscreen | ||
| Wavelength Accuracy | ±0.5 nm | ±0.1 nm at D2 656.1 nm, ±0.3 nm at full range | ||
| Wavelength Repeatability | ≤0.2 nm | ≤0.1 nm | ||
| Photometric Accuracy | ±0.3%T (0-100%T); ±0.002Abs (0-0.5Abs); ±0.004Abs (0.5-1.0Abs) | |||
| Photometric Repeatability | ≤0.1%T (0-100%T); ≤0.001Abs (0-0.5Abs); ≤0.002Abs (0.5-1.0Abs) | |||
| Stability | ≤0.001 A/h @ 250 nm and 500 nm (2 h preheating) | |||
| Photometric Range | -0.3-3 A, 0-200% T, 0-9999 C | |||
| Diffused light | ≤0.05% T at 220 nm and 360 nm | |||
| Control Mode | Standalone system or PC software (Optional) | |||
| Data Output | USB or Bluetooth port (Optional) | |||
| Energy Requirement | AC 110/220 V, 50/60 Hz | |||
Detailed analysis of spectrophotometers for an effective and safe choice
Comparative Analysis of UV-VIS Spectrophotometers: Kalstein YR01849 vs. Shimadzu UV-1800
In the realm of laboratory instrumentation, precision and accuracy are paramount. Two spectrophotometers, namely the UV-VIS Spectrophotometer YR01849 by Kalstein and the UV-1800 UV-Vis Spectrophotometer by Shimadzu, have become synonymous with quality and reliability. Both devices cater to the diverse needs of laboratories, offering advanced functionalities and robust performance. This article off

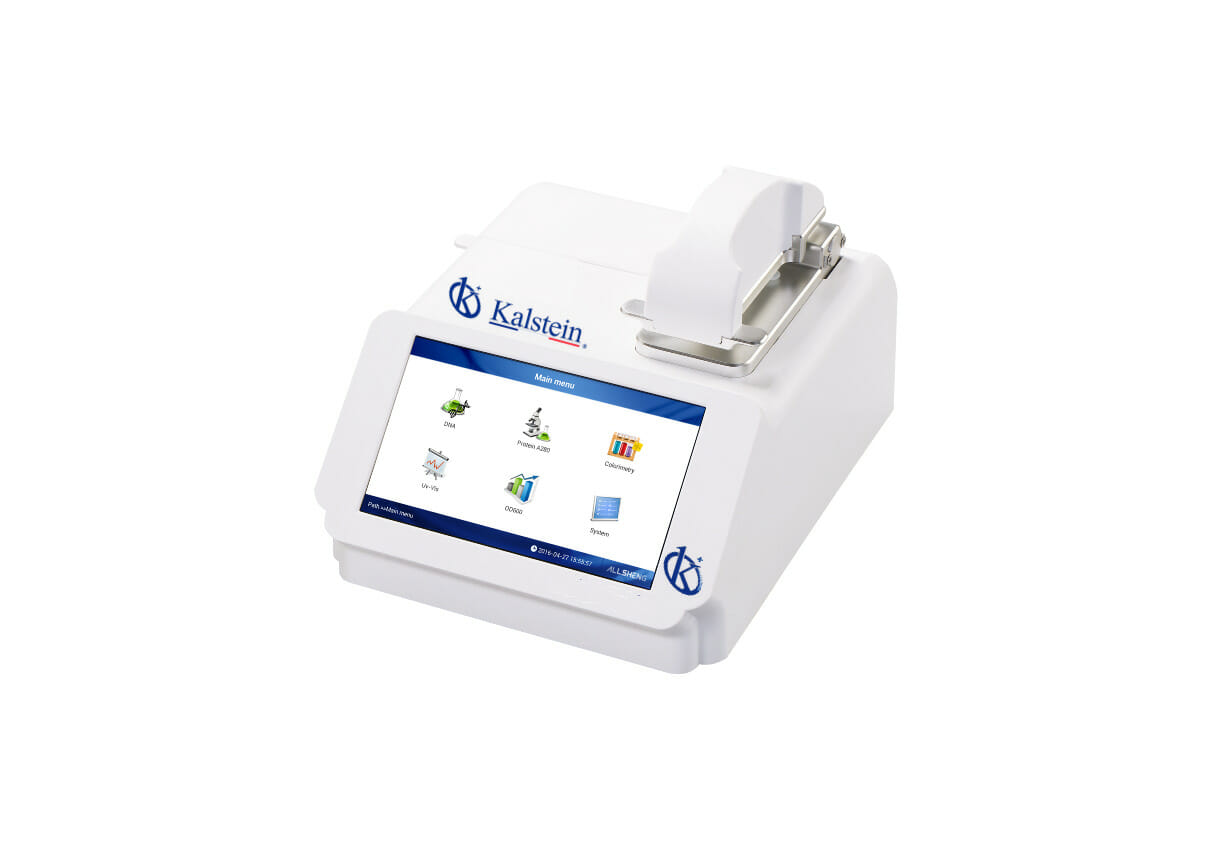

Explore the World of Spectrophotometers: A Comprehensive Look at Kalstein's Offerings
Spectrophotometers by Kalstein At Kalstein, we pride ourselves on delivering high-quality spectrophotometers that have become essential tools in scientific research and industrial applications. Our spectrophotometers are designed to provide precision, reliability, and ease of use, qualities that reflect our commitment to innovation and excellence in the laboratory equipment industry. Spectrophotom

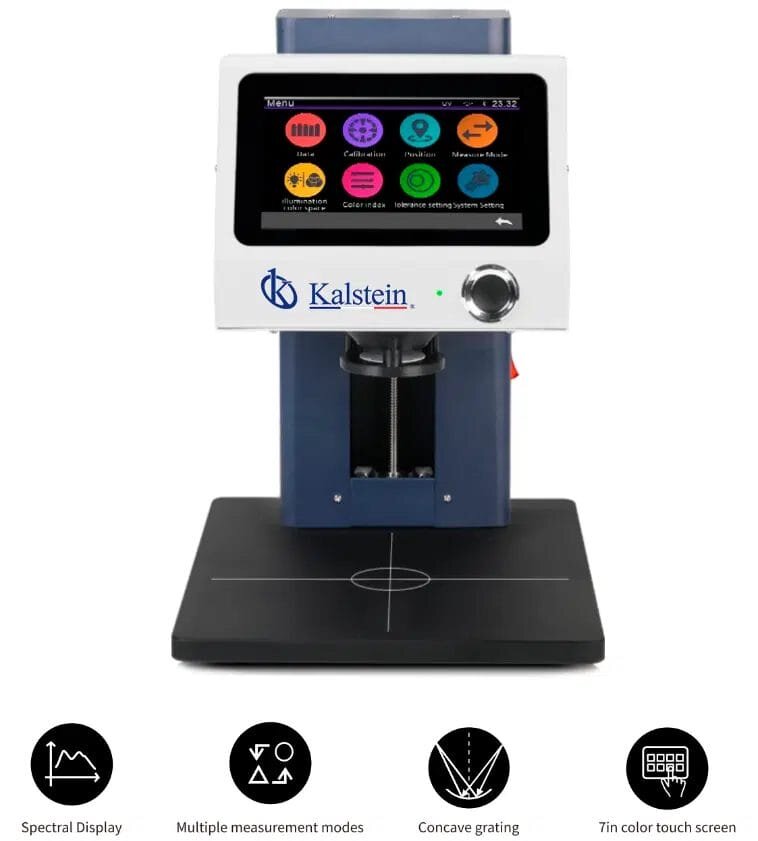

Explore the Full Spectrum with Next-Generation Spectrophotometers for Laboratories
Spectrophotometers are fundamental tools for any laboratory that requires accurate and reliable analysis in various fields of science. Whether in chemistry, biology, or physics, these devices allow the measurement of absorbance and transmittance of light, which is essential for a multitude of applications.

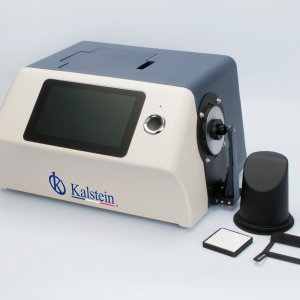

Spectrophotometers: Accuracy in Absorption Analysis for Modern Laboratories
In the world of research and laboratory analysis, having precision instruments is essential to obtaining...
spectrophotometers offer catalog
Guides about spectrophotometers
Complete guides to choose spectrophotometers
High-Precision Spectrophotometers: Advanced Optical Analysis for Reliable Results
In the world of modern laboratories, the precision and reliability of analytical results are paramount. That's why spectrophotometers have become a key tool for various types of optical analysis, from scientific research to industrial proce
Leer másSpectrophotometers: Precision Analysis for Scientific and Chemical Research
Spectrophotometers are essential tools in scientific and chemical research. In laboratory work, reliable and accurate results are the foundation for successful research, and in this sense, spectrophotometers play a key role. After testing a
Leer más
Innovative Spectrophotometers: Comparing Kalstein's Grating Spectrophotometer YR05500/YR05502 and Konica Minolta's CM-26dG
In the intricate world of spectrophotometry, two products emerge, setting benchmarks of quality and precision—Kalstein’s Grating Spectrophotometer with UV SCI/SCE Bluetooth YR05500 // YR05502, and Konica Minolta’s CM-26dG Spectrophotometer.
Leer más
Discover the World of Handheld Spectrophotometers: Your Portable Color Measuring Companion
Handheld Spectrophotometer, Kalstein Brand When it comes to handheld spectrophotometers, the Kalstein brand is a name that stands out in the industry. Known for their precision and reliability, Kalstein offers portable spectrophotometers th
Leer másFrequently asked questions about Spectrophotometers
How to know the prices of Spectrophotometers?
To know the price of Spectrophotometers, please send us an email with your request through the contact form AQUI.
What are the delivery times for Spectrophotometers?
Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.
How to make a purchase of Spectrophotometers?
You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.
How does the warranty work for Spectrophotometers?
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.
Can I request a quote online for Spectrophotometers?
Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
