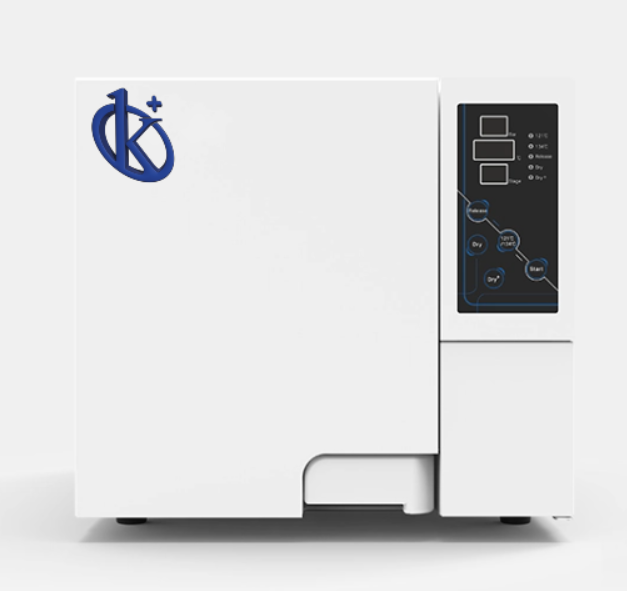

Class N Benchtop Autoclave YR03395 // YR03400

Manufacturer: Kalstein

Description

The Class N Benchtop Autoclave YR03395 / YR03400 is a compact, efficient sterilization unit designed for medical, dental, and laboratory environments where reliability and ease of use are paramount. This model operates with preprogrammed cycles at temperatures of 134 °C and 121 °C, ensuring effective disinfection of solid, non-cavity instruments. Users must manually fill the chamber before each cycle, granting full control over the sterilization process. Its LED screen provides clear, real-time updates on temperature, pressure, cycle duration, and safety alerts, making this autoclave both functional and user-friendly.

Market Price

The Class N Benchtop Autoclave YR03395 / YR03400 is available in the market within a price range of approximately $1100 to $1600. This pricing reflects the quality and efficiency of the unit, making it an excellent investment for clinics and laboratories seeking reliability without compromising on budget.

Frequently Asked Questions

What type of water should be used in the autoclave? It is recommended to use distilled water to prevent mineral buildup and extend the lifespan of the autoclave.

Does the autoclave require a dedicated water supply line? No, it does not have a built-in water tank. You must manually fill the chamber before each cycle.

Is the autoclave suitable for wrapped instruments? No, it is specifically designed for solid instruments without cavities or wrappings.

Advantages and Disadvantages

The Class N Benchtop Autoclave offers significant benefits such as compact size, intuitive operation, and low maintenance costs. It features an automatic lock safety system during pressurization, reducing operational risks. However, the need for manual filling limits the autoclave’s capacity for unsupervised, continuous use.

Product Usage in the Field

This autoclave is ideal for dental offices, veterinary clinics, and small laboratories requiring efficient sterilization of simple instruments. Its ease of use and effectiveness make it a popular choice in settings where high biosecurity standards are necessary without large space or budget allocations.

Recommendations

To maximize the lifespan and efficiency of your autoclave, always use distilled water, conduct regular internal cleanings, and ensure the chamber is not overloaded. Additionally, always verify sterilization parameters before starting a cycle to guarantee optimal results. For those seeking reliable sterilization solutions, consider requesting a personalized quote or generating an instant estimate through the Kalstein Plus platform.

Features

  • Compact and user-friendly design
  • Preprogrammed cycles at 134 °C and 121 °C
  • LED screen for real-time monitoring
  • Manual water chamber filling for precision control
  • Automatic lock safety system
  • Low maintenance requirements

Technical Specifications

Model YR03395/YR03396 YR03397 /YR03398 YR03399 /YR03400
Voltage. Frequency 220/110V, 50/60Hz
Power 1500W
Chamber Volume appr. 18L (E318/E418/E518), appr. 23L (E323/E423/E523)
Chamber Dimensions Ø247x350mm (18L), Ø247x450mm (23L)
Tray Size (W x H) 192x285mm (18L), 192x380mm (23L)
Tray Material Aluminum
Number of Trays 2/ Max. 4
Weight 32kg/36kg 33kg/37kg 33.5kg/37.5kg
Overall Dimensions (W x H x D) 483x450x515 mm (E318/E418/E518)
483x450x615 mm (E323/E423/E523)
Sterilization Program 134℃/210Kpa, 121℃/110Kpa
Sterilization Time 134℃, Default 30min (30~60min adjustable)
121℃, Default 10min (10~20min adjustable)
Dry No Default 60min (1~60min adjustable) Default 60min (1~60min adjustable)
Dry + No No Default 60min (1~60min adjustable)

Additional information

Weight N/A
Dimensions 62 × 51 × 56 cm
Model

YR03395, YR03396, YR03397, YR03398, YR03399, YR03400
