Description

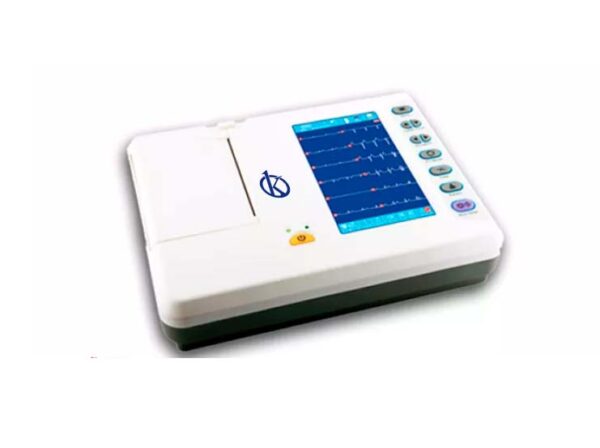

The 6 Channel Smart Hospital ECG Manufacturing Machine Monitoring Dynamic Holter ECG Systems YR05161 combines cutting-edge technology with ease of use, ensuring reliable and accurate measurements for cardiologists. This state-of-the-art equipment offers comprehensive data management options and a high diagnostic confidence, making it an essential tool for any healthcare facility looking to enhance patient care.
Market Price
The 6 Channel Smart Hospital ECG Machine typically falls within a price range of $1000 to $1800 in the market. While prices can vary based on features and region, this range offers a general idea of what to expect when investing in such advanced healthcare technology. For a tailored quote, consider using the Kalstein Plus platform to generate an automatic quotation that best fits your needs.
Frequently Asked Questions
Is the ECG machine compatible with standard hospital equipment? Yes, it is designed to integrate smoothly with existing medical devices and systems.
What is the warranty period for this product? The ECG machine typically comes with a one-year warranty, which covers any manufacturing defects.
Does the device require special maintenance? Regular cleaning and periodic calibration checks are recommended to ensure optimal performance.
Advantages and Disadvantages
Advantages: The system offers precise measurements, comprehensive data management, and ease of use, which greatly enhances diagnostic capabilities.
Disadvantages: The initial investment might be high for smaller clinics, and it requires trained personnel for optimal operation.
Usage in the Field
In practical scenarios, the YR05161 is utilized for continuous monitoring of cardiac activity, allowing healthcare providers to detect and analyze heart conditions over prolonged periods. Its intuitive interface and robust data capabilities make it ideal for both routine checks and complex diagnoses.
Recommendations
To maximize the utility of this ECG system, ensure that it is operated by trained professionals and regularly maintained. Consider using protective measures to prevent physical damage and retain a backup of the collected data for future references.
Features
- Advanced 6-channel monitoring
- Accurate measurements and interpretations
- Multiple work modes: MAN, AUTO, ANALYSIS
- Comprehensive data management
- Protective features against defibrillator effects
- 7-inch high-definition LCD screen
Technical Specifications
| Model | YR05161 |
| Guide | 12 standard conductors |
| Input dynamic range | ± 10Vpp |
| Patient current leak | <10μA |
| Calibration Voltage | 1mV ± 2% |
| Tension Tolerance | ≥ ± 500mV |
| Time constant | ≥3.2s |
| Frequency response | 0.05 ~ 160Hz (-3db) |
| Noise level | <15μVp-p |
| Input circuit current | 0.050.05 μA |
| Sensitivity | 2.5, 5.10, 20mm / mV |
| Interchannel interference | ≤0.5mm |
| Paper speed | 6.25,12.5, 25.50mm / s (± 3%) |
| Patient current leak | <10μA |
| AC filter | 50Hz / 60Hz |
| EMG filters | 25Hz / 45Hz |
| Anti-drift filter | 0.15 Hz (adaptive) |
| CMMR | ≥120dB (with AC filter) |
| Sensitivity Valve | ≤20μV |
| Input impedance | ≥50MΩ |
| Work Modes | MAN, AUTO, ANALYSIS modes |
| Acquisition of Potential Customers | 12 bits / 1000 Hz (synchronously 12 leads) |
| Input Circuit | floating; protection circuit against defibrillator effect |
| Screen | 7 inch LCD |
