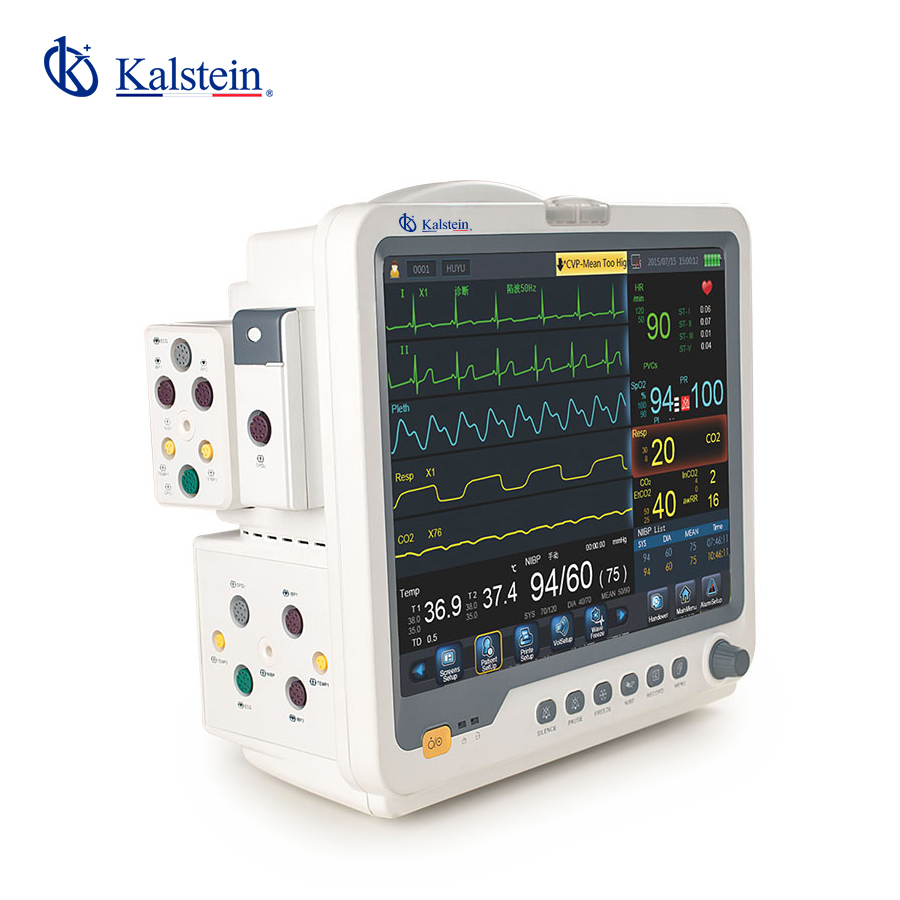

Patienten-Multi-Parameter-Monitor YR02179
Pantalla LCD 2 ranuras Parámetro semi-modular Monitor de paciente puede ser utilizado en OT y UCI. Parámetros estándar: ECG, SPO2, TEMP, NIBP, RESP, PR/HR Configuración estándar: ECG de 5 derivaciones, RESP, Dual-Temp, SpO2, NIBP Opcional: Pantalla táctil, Masimo/Nellcor SpO2, Dual-IBP, AG, C.O., BIS, ECG de 3/12 derivaciones, Suntech NIBP, EtCO2, Registrador térmico, ICG, Carro, Soporte de pared.
This page provides an overview of the Patienten-Multi-Parameter-Monitor YR02179, including selection criteria, investment factors, operational advantages and maintenance recommendations. The aim is to support an informed decision before requesting a quotation.
This Kalstein model is available for laboratories in Germany, with selection criteria adapted to local purchasing, installation and support conditions.
Wichtige Faktoren
Before selecting the Patienten-Multi-Parameter-Monitor YR02179, confirm workflow, available space, required accessories and installation conditions. This prevents oversizing the purchase and helps prepare a more accurate quotation.
Its use is oriented to laboratory routines that require observation, control and operational continuity.
For the market in Germany, evaluation should consider local context such as industrial labs, Mittelstand pharma, strict DIN/EN standards and match the product to the real workload of the Labor.
Marktpreisspanne
The investment should be evaluated according to configuration, required accessories, installation conditions and available technical support.
The final price may vary according to configuration, accessories, logistics, warranty and territorial availability. Compare the technical sheet with the real laboratory workload before confirming the investment.
In Germany, budget comparison should include local regulatory requirements, 230V/50Hz power conditions, accessories, logistics and after-sales support.
Preis-Leistungs-Verhältnis
Equipment value depends on operational stability, required accuracy, ease of maintenance and accessory availability.
Value for money should be reviewed together with equipment stability, after-sales support, technical documentation and expected service life. A well-matched selection reduces downtime and improves return on investment.
Vor- und Nachteile
Its use is oriented to laboratory routines that require observation, control and operational continuity.
Main advantages include specialized application, integration with laboratory routines and accessory configuration. Limitations may include installation requirements, user training and preventive maintenance to preserve performance.
Erwartete Lebensdauer je nach Nutzung und Wartung
Modelo YR02178 YR02179 ECG Modo principal 5 conductores (RA,LA,LL,RL,V) Método de conexión I, II, III,AVR,AVL,AVF,V Modo Plomo 3 conductores (RA,LA,LL) Método de conexión I, II,III Forma de onda 1ch Gane x250, x500, x1000, x2000 Gama HR Adulto: 15~300bpm Neo/Ped 15~350bpm Precisión ±1% o ±1bpm Resolución 1bpm Sensibilidad 200(uVp-p) Impedancia de entrada diferencial ≥5MΩ Rango de monitorización del segmento ST Rango de medida -2,0~+2,0mV Medir la precisión -0,8mV~+0,8mV Frecuencia cardiaca Rango de medición 40~240bpm Precisión ±3bpm Resolución 1bpm Sensibilidad 200UVp-p Respiración Método Impedancia entre R-F(RA-LL) Impedancia de entrada diferencial 2,5MΩ Rango de impedancia de medición 0,3~3,0 MΩ Línea base Rango de impedancia 200~4000Ω Ancho de banda 0,1~2,5Hz Frecuencia respiratoria…
Service life depends on usage frequency, cleaning, storage, calibration when applicable and adherence to technical recommendations. A structured maintenance plan helps preserve accuracy, safety and operational continuity.
Support and spare-parts availability oriented to Germany helps preserve service continuity and plan preventive maintenance without extended downtime.
Spezifikationstabelle des Patienten-Multi-Parameter-Monitor YR02179
Patienten-Multi-Parameter-Monitor YR02179
- LCD-Bildschirm 2 Steckplätze Semi-modulares Patientenmonitor kann in OT und ICU verwendet werden.
- Standardparameter: ECG, SPO2, TEMP, NIBP, RESP, PR/HR
- Standardkonfiguration: 5-Kanal-ECG, RESP, Dual-Temp, SpO2, NIBP
- Optional: Touchscreen, Masimo/Nellcor SpO2, Dual-IBP, AG, C.O., BIS, 3/12-Kanal-ECG, Suntech NIBP, EtCO2, Thermodrucker, ICG, Wagen, Wandhalterung.
| Modell | YR02178 | YR02179 | |
EKG | Leitmodus | 5 Ableitungen (RA,LA,LL,RL,V) | |
| Verbindungsmethode | I, II, III,AVR,AVL,AVF,V | ||
| Ableitungsmodus | 3 Ableitungen (RA,LA,LL) | ||
| Verbindungsmethode | I, II,III | ||
| Wellenform | 1ch | ||
| Verstärkung | x250, x500, x1000, x2000 | ||
| HR-Bereich | Erwachsene: 15~300bpm | ||
| Neo/Pädiatrie | 15~350bpm | ||
| Genauigkeit | ±1% oder ±1bpm | ||
| Auflösung | 1bpm | ||
| Empfindlichkeit | 200(uVp-p) | ||
| Differenzielle Eingangsimpedanz | ≥5MΩ | ||
| Überwachungsbereich des ST-Segments | |||
| Messbereich | -2,0~+2,0mV | ||
| Messgenauigkeit | -0,8mV~+0,8mV | ||
Herzfrequenz | Messbereich | 40~240bpm | |
| Genauigkeit | ±3bpm | ||
| Auflösung | 1bpm | ||
| Empfindlichkeit | 200UVp-p | ||
Atmung | Methode | Impedanz zwischen R-F(RA-LL) | |
| Differenzielle Eingangsimpedanz | 2,5MΩ | ||
| Messimpedanzbereich | 0,3~3,0 MΩ | ||
| Basislinienimpedanzbereich | 200~4000Ω | ||
| Bandbreite | 0,1~2,5Hz | ||
| Atemfrequenz | Erwachsene: 7~120BrPM | ||
| Neo/Pädiatrie | 7~150BrPM | ||
| Auflösung | 1 BrPM | ||
| Genauigkeit | ±2 BrPM | ||
| Alarm | 10~40S | ||
| NIBP | Methode | Oscillometrisch | |
| Modus | Manuell/Auto/STAT | ||
| Messintervall im AUTO-Modus | 1,2,3,4,5,10,15,30,60,90,120,180,240,480(Min) | ||
| Messperiode im STAT-Modus | 5 Minuten | ||
| Pulsfrequenz | 40~240bpm | ||
| Alarmtyp | SYS, DIA, MEAN | ||
| Auflösung | |||
| Druck | 1mmHg | ||
| Genauigkeit | Maximaler Mittelwertfehler: 5mmHg | ||
| Maximale Standardabweichung | 8mmHg | ||
SPO2 | Anzeige | Anzahl der SPO2, Wellenform der Kapazität, Puls | |
| Messbereich | 0~100% | ||
| Auflösung | 1% | ||
| Genauigkeit | 70~99% (±2%) | ||
| Alarmsystem | Audio-Video-Alarm | ||
| Pulsfrequenz | 0~300bpm | ||
TEMP | Kanal | 2 | |
| Mess- und Alarmbereich | 0~50ºC | ||
| Auflösung | 0,1ºC | ||
| Genauigkeit | 0,1ºC | ||
| Aktualisierungsintervall | ungefähr 1 Sekunde. | ||
| Mittlere Zeitkonstante | <10 Sekunden. | ||
Häufig gestellte Fragen zu Patienten-Multi-Parameter-Monitor YR02179
How do I choose the right patienten-multi-parameter-monitor yr02179 for my Labor?
Selection should start from workload, critical technical parameters, available space and frequency of use. Kalstein can support the comparison between operational needs, budget and maintenance requirements to avoid choosing equipment that is oversized or insufficient.
What should I review before requesting a quotation?
Review the model, technical specifications, required accessories, electrical conditions, consumables, delivery timing and installation needs. With this information, the quotation can be prepared more accurately and aligned with the laboratory workflow.
Does Kalstein provide guidance for this type of equipment?
Yes. The commercial and technical team can support product evaluation, explain differences between models, answer application questions and advise on preventive maintenance, spare parts and documentation required for a secure purchase.
What maintenance helps extend the equipment lifespan?
Follow the manufacturer manual, perform regular cleaning, verify calibrations or controls when applicable, avoid workload abuse and keep maintenance records. Stable use and preventive routines reduce failures and improve operational continuity.
