Colorimeter
A colorimeter is a crucial instrument used to measure the absorbance of particular wavelengths of light by a specific solution. This device helps in determining the concentration of substances in liquid samples by analyzing color intensity. Widely applied in medical laboratories, environmental analysis, and quality control, colorimeters offer precise and rapid measurements that facilitate quick decision-making processes. Their simplicity and efficiency make them essential tools for routine testing and research alike.
Colorimeters enable professionals to assess the color properties of liquids, ensuring consistent quality and compliance with industry standards. They operate based on Beer-Lambert law principles, converting color changes into measurable data. The ability to quantify colors objectively has expanded their applicability beyond medical labs to sectors such as food production, pharmaceuticals, and veterinary practices, where color accuracy is critical. By integrating modern technology, these devices deliver reliable results that enhance laboratory productivity and accuracy.
Types of Colorimeters Your Laboratory Might Need
Spectrocolorimeter
Spectrocolorimeters are advanced instruments that measure color by analyzing light spectrum wavelengths reflected from a sample. Unlike traditional colorimeters, they detect a broader range of colors and provide detailed spectral data rather than simple tristimulus values. This capability makes them invaluable for applications demanding high precision and color matching accuracy, such as paint formulation, textile quality control, and veterinary diagnostics.
Offering superior color discrimination and data output, spectrocolorimeters are often used in research and quality assurance environments where precise color reproduction and analysis are critical. By capturing full spectral data, they allow users to simulate lighting conditions and compare colors beyond visual perception, enhancing decision-making accuracy in clinical labs and industrial settings.
What You Should Know Before Selecting a Colorimeter and Making an Investment
Key Factors to Consider When Choosing a Colorimeter
When evaluating colorimeters, consider factors such as measurement accuracy, repeatability, and the device’s ease of calibration. The wavelength range and resolution should match your laboratory’s specific requirements to ensure reliable data. User interface and software capabilities also play critical roles in facilitating data management and analysis.
Additional factors include sample handling methods, portability, and device durability, especially in clinical or veterinary settings where workflow efficiency is paramount. Compatibility with existing lab equipment and compliance with industry standards should also be reviewed to deliver consistent and reproducible results.
Price Range of Colorimeters in the Market
Colorimeter prices vary depending on features, precision, brand, and intended application. Basic models for simple concentration measurements are more affordable, while advanced spectrocolorimeters can be significantly higher due to their enhanced capabilities. Understanding market ranges helps align your budget with performance needs.
Entry-level colorimeters usually range from a few hundred to low thousands of dollars, suitable for routine testing. More sophisticated models with spectral analysis, multiple sample modes, and connectivity options can cost several thousands, reflecting their added value in high-level research and diagnostics laboratories.
Price-Quality Ratio of Colorimeters
Investing in a colorimeter requires balancing cost with accuracy and durability. A competitive price-quality ratio considers not only the initial purchase price but also long-term maintenance, consumables, and technical support availability. Selecting reliable brands like Kalstein ensures equipment longevity and consistent performance.
High-quality colorimeters typically offer robust construction and modular components, extending their operational lifespan. Regular maintenance, such as calibration verification and cleaning, impacts device longevity significantly, ensuring precise measurements throughout their service life, which can span several years.
Lifespan Expectations Based on Usage and Maintenance
The expected lifespan of a colorimeter depends on daily usage intensity and adherence to manufacturer maintenance protocols. Proper storage and handling minimize risks of damage, while software updates and technical support facilitate sustained optimal performance, maximizing return on investment.
Kalstein colorimeters are designed with durability and user-friendly operation in mind, providing reliable performance in demanding clinical and laboratory environments. Our devices support you throughout their lifecycle with comprehensive service and continuous technical assistance.
KALSTEIN COLORIMETERS
Among many products, at Kalstein you can find the ideal colorimeter for your Clinic
If you are unsure which colorimeter to buy, we advise considering your measurement needs, sample types, and desired accuracy. Our experts at Kalstein provide guidance to help you choose the most suitable colorimeter that meets your laboratory’s requirements perfectly, ensuring a valuable investment.

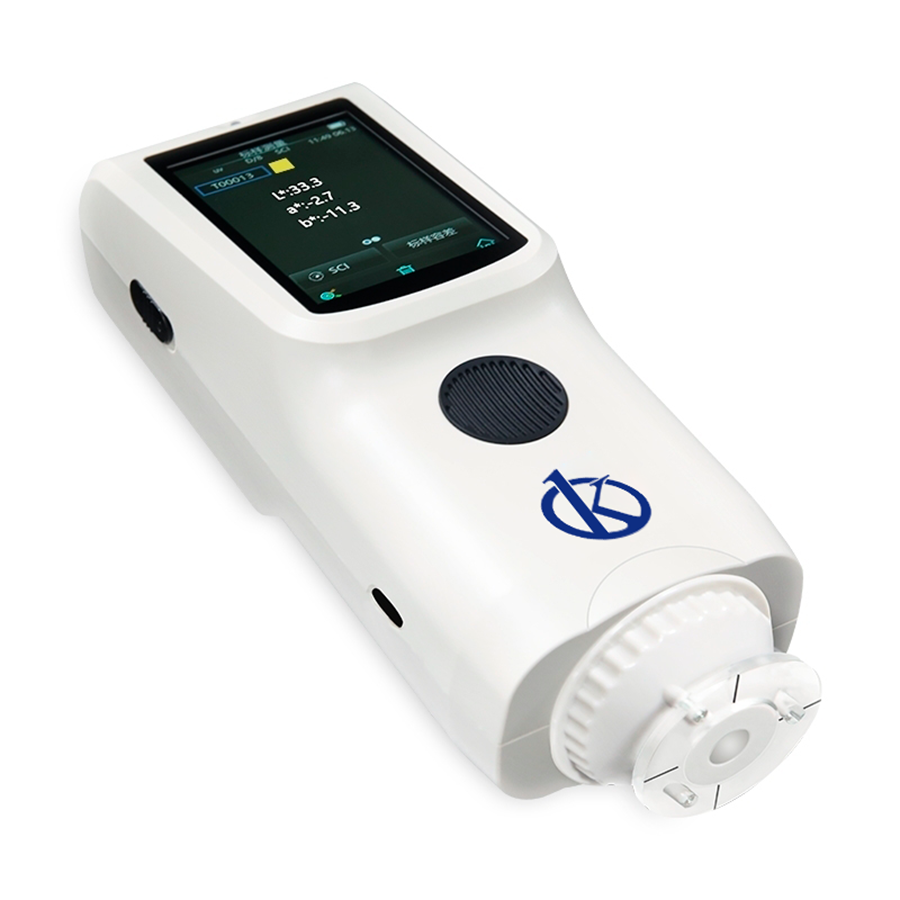

Spectrocolorimeter YR05516 – YR05517
The Spectrocolorimeter YR05516 – YR05517 is a state-of-the-art tool designed for precise color measurement and quality c…
Precision Colorimeter YR05513
The Precision Colorimeter YR05513 is an essential tool for professionals across various industries who require precise c…
Precision Colorimeter YR05510
The Precision Colorimeter YR05510 is a top-tier device designed to meet the highest standards of color measurement acros…
Precision Colorimeter YR05512
The Precision Colorimeter YR05512 is a cutting-edge tool designed for professionals seeking high precision and versatili…
Our colorimeter best seller
The Spectrocolorimeter YR05516 – YR05517 is a state-of-the-art tool designed for precise color measurement and quality control across various industries. With its advanced spectral architecture, it ensures high accuracy in color differentiation, maintaining both relative and absolute values of color measurements (ΔE, L, A, B) over time. This portable device is equipped with sophisticated technology, including a built-in silicon photodiode array and a full-spectrum LED light source, providing quick and convenient operation without needing a computer. Its ergonomic design and…
When looking for a reliable spectrocolorimeter, knowing the market price is essential. On average, high-quality spectrocolorimeters like the YR05516 and YR05517 range from approximately $4000 to $4900, contingent on features and accessories included. This price range ensures that you benefit from precise technology and robust performance integral for industrial applications.
| Model | YR05516 | YR05517 |
| Optical Geometry | D/8(diffused illumination, | D/8(diffused illumination, |
| 8-degree viewing angle) | 8-degree viewing angle) | |
| SCI/SCE Mode | SCI/SCE Mode | |
| Comply to CIE No.15，GB/T | Comply to CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 | |
| 3978,GB 2893,GB/T | ||
| 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7 | ||
| Characteristic | double apertures, more adaptability; Used for accurate | single apertures, more adaptability; Used for accurate color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, printing, ceramics and other industries |
| color measurement and quality control in plastic electronics, | ||
| paint and ink, textile and garment printing and dyeing, printing, | ||
| ceramics and other industries | ||
| Integrating Sphere Size | Φ40mm | Φ40mm |
| Light Source | Combined full spectrum LED light source, UV light source | Combined full spectrum LED light source, UV light source |
| Spectrophotometric Mode | Flat Grating | Flat Grating |
| Senso | Silicon photodiode array (double row 32 groups) | Silicon photodiode array (double row 32 groups) |
| Wavelength Range | 400～700nm | 400～700nm |
| Wavelength Interval | 10nm | 10nm |
| Semiband Width | 10nm | 10nm |
| Measured Reflectance Range | L:0~120; reflectivity:0~200% | L:0~120; reflectivity:0~200% |
| Measuring Aperture | Dual Apertures：MAV:Φ8mm/Φ10mm;SAV:Φ4mm/Φ5mm | Single Apertures：Φ8mm/Φ10mm |
| Specular Component | SCI/SCE | SCI/SCE |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,βxy,DIN Lab9,DIN | CIE LAB,XYZ,Yxy,LCh,s-RGB,βxy,Munsell(C/2) |
| Lab99 Munsell(C/2) | ||
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1), | ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99 |
| Other Colorimetric Index | WI(ASTM E313,CIE/ISO,AATCC,Hunter)， | WI(ASTM E313,CIE/ISO,AATCC,Hunter)， |
| YI(ASTM D1925,ASTM 313), | YI(ASTM D1925,ASTM 313), | |
| Metamerism Index MI, | Metamerism Index MI, | |
| Staining Fastness, Color Fastness, Color Strength, | Staining Fastness, Color Fastness, Color Strength, Opacity,Color Card Search | |
| Opacity,Color Card Search | ||
| Observer Angle | 2°/10° | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF), | D65,A,C,D50,F2(CWF), |
| F3,F4,F5,F6,F7(DLF), | F7(DLF),F10 | |
| Displayed Data | Spectrogram/Values, Samples | Spectrogram/Values, Samples |
| Displayed Accuracy | 0.01 | 0.01 |
| Measuring Time | About 1.5s (Measure SCI & SCE about 3.2s) | About 1.5s (Measure SCI & SCE about 3.2s) |
| Repeatability | Chromaticity value: MAV/SCI, within ΔE*ab 0.05 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | Chromaticity value: MAV/SCI, within ΔE*ab 0.06 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
| Inter-instrument Error | MAV/SCI, Within ΔE*ab 0.3 | MAV/SCI, Within ΔE*ab 0.3 |
| (Average for 12 BCRA Series II color tiles) | (Average for 12 BCRA Series II color tiles) | |
| Measurement Mode | Single Measurement, Average | Single Measurement, Average Measurement(2-99times) |
| Locating Method | Camera Locating,stabilizer cross position | Camera Locating,stabilizer cross position |
| Dimension | L*W*H=81X71X214mm | L*W*H=81X71X214mm |
| Weight | About 460g | About 460g |
| Battery | Li-ion battery, 6000 measurements | Li-ion battery, 6000 measurements within 8 hours |
| hours | ||
| Illuminant Life Span | 5 years, more than 3 million times | 5 years, more than 3 million times measurements |
| measurements | ||
| Display | 3.5-inch TFT color LCD, Capacitive Touch S | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| creen | ||
| Data Port | USB,Bluetooth 5.0 | USB |
| Data Storage | Standard 1000 Pcs, Sample 30000 | Standard 1000 Pcs, Sample 20000 Pcs(One data is able to include SCI/SCE) |
| data is able to include SCI/SCE) | ||
| Language | Simplified Chinese, English, Traditional Chinese | Simplified Chinese, English, Traditional Chinese |
| Operating Environment | 0~40℃, 0~85%RH (no condensing), Altitude | 0~40℃, 0~85%RH (no condensing), Altitude < 2000m |
| < 2000m | ||
| Storage Environment | -20~50℃, 0~85%RH (no condensing) | -20~50℃, 0~85%RH (no condensing) |
| Standard Accessory | Power Adapter, USB Cable, User Guide, SQCX Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture, 4mm flat aperture, 4mm tip aperture | Power Adapter, USB Cable, User Guide, SQCX Software(Download from office website), White and Black Calibration Cavity, Protective Cover, Wrist strap, 8mm flat aperture, 8mm tip aperture |
| Optional Accessory | USB Micro Printer, Powder Test Box,Bluetooth Micro Printer | USB Micro Printer, Powder Test Box, |
| Notes | Technical parameters are only for | Technical parameters are |
Selecting the right colorimeter ensures accurate and efficient results.

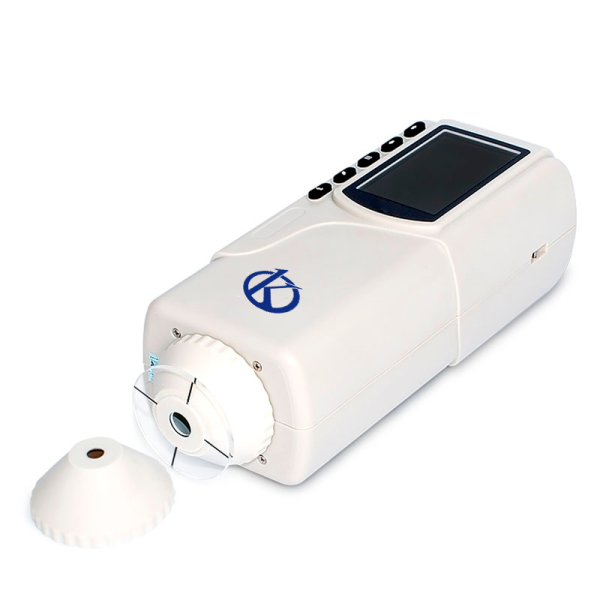

The Ultimate Guide to Colorimeter: Understanding Its Features and Benefits
Kalstein colorimeters are elegant instruments that stand out in the world of laboratory equipment. This reputable brand has consistently demonstrated excellence…
Optimize Your Chromatic Results with the High-Sensitivity Colorimeter
Colorimeters are designed to provide precision and efficiency in color measurement across various applications, from laboratories to industries that require str…
Advanced Colorimetry: Boost Your Analyses with Next-Generation Colorimeters
The world of colorimetry has evolved tremendously in recent years, allowing scientists, researchers, and professionals from various industries to obtain more ac…
High-Precision Colorimeter for Innovation in Color Measurement for Modern Laboratories
The use of a colorimeter is essential to ensure precision in color measurement across various industries, especially in modern laboratories. This device measure…
Colorimeters on Offer
Kalstein offers reliable and user-friendly colorimeter models for labs.
Explore comprehensive guides on colorimeter selection, calibration, and maintenance for optimal performance.
Follow our detailed guides and recommendations to operate a colorimeter like a true expert, covering calibration, routine maintenance, troubleshooting, and data interpretation techniques.
Digital Colorimeter for Accurate Color Analysis
In the field of scientific research, precise color measurement is a key factor in obtaining reliable results. Digital colorimeters have emerged as an…
Colorimeter for Accurate Color Measurement for Laboratory and Industrial Processes
Colorimeters have become fundamental tools for ensuring accuracy in color analysis in laboratories and various industrial processes. Whether for analy…
Colorimeters: Accurate Measurement for Color Quality Analysis
Precision in color measurement is a crucial aspect in various industries such as textiles, food, pharmaceuticals, and many others. To ensure consisten…
Colorimeters with High Precision: Efficient Solutions for Laboratory Color Analysis
The precision in color analysis is essential in many laboratories, especially those working in sectors such as chemistry, biotechnology, food, and scientific research. A key piece of equipment to ensure this precision is the colorimeter.
