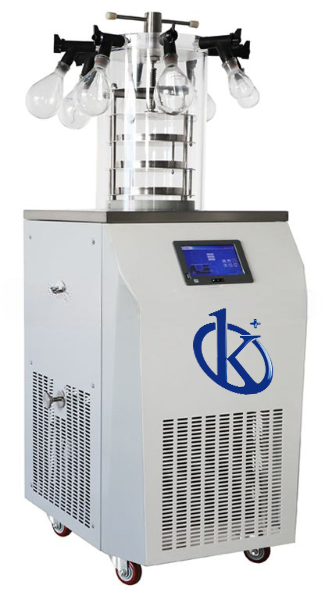

Vertical Electric Heating Laboratory YR05201
The Vertical Electric Heating Laboratory Freeze Dryer YR05198 // YR05201 is an essential tool for various scientific and industrial applications, including medicine, pharmaceuticals, biological research, and the food industry. This state-of-the-art freeze dryer ensures that lyophilized materials maintain their quality and biochemical characteristics when rehydrated. Designed specifically for laboratory settings, it caters to routine lyophilization needs, boasting features like a 7-inch touch screen, stainless steel cold trap, and flexible vacuum settings. The freeze dryer meets the exacting demands of professional environments with its robust design and advanced functionality.
This page provides an overview of the Vertical Electric Heating Laboratory Freeze Dryer YR05201, including selection criteria, investment factors, operational advantages and maintenance recommendations. The aim is to support an informed decision before requesting a quotation.
This Kalstein model is available for laboratories in Germany, with selection criteria adapted to local purchasing, installation and support conditions.
Key factors to consider
Before selecting the Vertical Electric Heating Laboratory Freeze Dryer YR05201, confirm workflow, available space, required accessories and installation conditions. This prevents oversizing the purchase and helps prepare a more accurate quotation.
Its use is oriented to laboratory routines that require observation, control and operational continuity.
For the market in Germany, evaluation should consider local context such as industrial labs, Mittelstand pharma, strict DIN/EN standards and match the product to the real workload of the laboratory.
Market price range
The market average price for a high-quality laboratory freeze dryer like the YR05198 or YR05201 ranges from $11,200 to $12,000. This price range reflects the advanced features and reliable performance this equipment offers in its category.
The final price may vary according to configuration, accessories, logistics, warranty and territorial availability. Compare the technical sheet with the real laboratory workload before confirming the investment.
In Germany, budget comparison should include local regulatory requirements, 230V/50Hz power conditions, accessories, logistics and after-sales support.
Value for money
Advantages: High efficiency, precise temperature control, user-friendly interface, and durable build make it an exceptional choice for professionals. Disadvantages: The initial cost may be prohibitive for smaller labs with budget constraints.
Value for money should be reviewed together with equipment stability, after-sales support, technical documentation and expected service life. A well-matched selection reduces downtime and improves return on investment.
Advantages and disadvantages
Its use is oriented to laboratory routines that require observation, control and operational continuity.
Main advantages include specialized application, integration with laboratory routines and accessory configuration. Limitations may include installation requirements, user training and preventive maintenance to preserve performance.
Expected lifespan based on use and maintenance
To maximize the equipment's lifespan, it is recommended to perform regular maintenance checks, ensuring the cold trap is free from obstructions and the vacuum pump is in optimal condition. Utilize the touch screen interface to customize settings for specific lyophilization tasks, ensuring the best results.
Service life depends on usage frequency, cleaning, storage, calibration when applicable and adherence to technical recommendations. A structured maintenance plan helps preserve accuracy, safety and operational continuity.
Support and spare-parts availability oriented to Germany helps preserve service continuity and plan preventive maintenance without extended downtime.
Specifications table for the Vertical Electric Heating Laboratory YR05201
Vertical Electric Heating Laboratory YR05201
Características
- Fijación del proceso de liofilización
- Control de la velocidad de calentamiento con calefacción eléctrica de estante
- Pantalla táctil de 7 pulgadas
- Trampa fría y mesa de operaciones de acero inoxidable
- Un sifón de gran apertura con función de precongelación
- Trampa de frío Desescarche eléctrico
- Conmutación flexible de las unidades de vacío (Pa, mBar, etc.)
- Función de protección de la bomba de vacío con el ajuste de la bomba de vacío para iniciar la temperatura de la trampa de frío.
Especificaciones técnicas
| Model | YR05198 | YR05199 | YR05200 | YR05201 (current) |
| Lyophilized area | 0.18m²/0.27m² | 0.09m² | 0.18m²/0.27m² | 0.09m² |
| Panel material (material thickness 10 mm) | 1.8L/2.7L | 0.9L | 1.8L/2.7L | 0.9L |
| Material tray | Ф240mm 4/6 layers | Ф200mm 3 layers | Ф240mm 4/6 layers | Ф200mm 3 layers |
| Distance between material plates | 70 mm/50 mm | 70 mm | 70 mm/50 mm | 70 mm |
| Storage temperature | -40 ~ +60°C | |||
| Cold trap temperature | ≤ 60 ° C (no load), optional ≤ -80 ° C (no load) | |||
| Water absorption capacity | 6 kg/24h | |||
| Ultimate vacuum | ≤ 5pa (no load) | |||
| Power | 1800w | |||
| Host weight | 105 KG | |||
| Central unit dimensions | 630×580×1455mm | 630×580×1455mm | 630×580×1455mm | 630×580×1455mm |
Products related to model YR05201
Freeze Dryer YR06692
Ver producto
100 kg Commercial Vacuum Freeze Dryer YR06647
Ver producto
Large capacity 500kg vacuum freeze dryer YR06612
Ver producto
Electric Heating Vacuum Freeze Dryer YR06637
Ver producto
Freeze Dryer Lyophilizer for Fruits and Vegetables YR05985
Ver producto
Silicone Oil Heating Lyophilizer YR05985-1 - YR05985-2
Ver producto
Vertical Laboratory Freeze Dryer YR05191 // YR05193
Ver producto
Vertical Laboratory Freeze Dryer YR05194 // YR05197
Ver productoFrequently Asked Questions about the Vertical Electric Heating Laboratory YR05201
What is the primary use of this freeze dryer?
The freeze dryer is used to preserve perishable materials by removing moisture through a process known as lyophilization.
Does it require special installation?
The installation is straightforward, but it should be set up by a professional to ensure optimal performance.
How do I choose the right Vertical Electric Heating Laboratory YR05201 for my laboratory?
Selection should start from workload, critical technical parameters, available space and frequency of use. Kalstein can support the comparison between operational needs, budget and maintenance requirements to avoid choosing equipment that is oversized or insufficient.
What should I review before requesting a quotation?
Review the model, technical specifications, required accessories, electrical conditions, consumables, delivery timing and installation needs. With this information, the quotation can be prepared more accurately and aligned with the laboratory workflow.
Does Kalstein provide guidance for this type of equipment?
Yes. The commercial and technical team can support product evaluation, explain differences between models, answer application questions and advise on preventive maintenance, spare parts and documentation required for a secure purchase.
What maintenance helps extend the equipment lifespan?
Follow the manufacturer manual, perform regular cleaning, verify calibrations or controls when applicable, avoid workload abuse and keep maintenance records. Stable use and preventive routines reduce failures and improve operational continuity.
