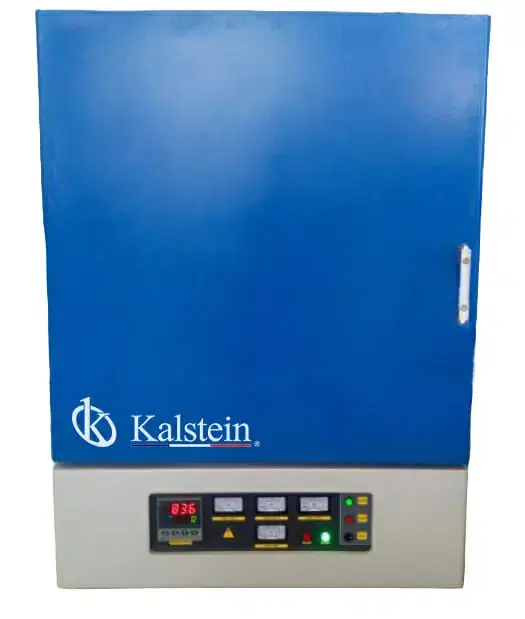

Furnace YR05284-1
Estructura y cámara del horno: Aislamiento de alúmina fibrosa de alta pureza para un máximo ahorro de energía 60-80%menos consumo de energía que otros de estilo antiguo. Estructura de doble capa de alta resistencia con ventilador de refrigeración para mantener el horno exteriorssafe al tacto. Especificación Técnica:
This page provides an overview of the Universal Lab High Temp Box Muffle Furnace YR05284-1, including selection criteria, investment factors, operational advantages and maintenance recommendations. The aim is to support an informed decision before requesting a quotation.
This Kalstein model is available for laboratories in Germany, with selection criteria adapted to local purchasing, installation and support conditions.
Key factors to consider
Before selecting the Universal Lab High Temp Box Muffle Furnace YR05284-1, confirm workflow, available space, required accessories and installation conditions. This prevents oversizing the purchase and helps prepare a more accurate quotation.
Its use is oriented to laboratory routines that require observation, control and operational continuity.
For the market in Germany, evaluation should consider local context such as industrial labs, Mittelstand pharma, strict DIN/EN standards and match the product to the real workload of the laboratory.
Market price range
The investment should be evaluated according to configuration, required accessories, installation conditions and available technical support.
The final price may vary according to configuration, accessories, logistics, warranty and territorial availability. Compare the technical sheet with the real laboratory workload before confirming the investment.
In Germany, budget comparison should include local regulatory requirements, 230V/50Hz power conditions, accessories, logistics and after-sales support.
Value for money
Equipment value depends on operational stability, required accuracy, ease of maintenance and accessory availability.
Value for money should be reviewed together with equipment stability, after-sales support, technical documentation and expected service life. A well-matched selection reduces downtime and improves return on investment.
Advantages and disadvantages
Its use is oriented to laboratory routines that require observation, control and operational continuity.
Main advantages include specialized application, integration with laboratory routines and accessory configuration. Limitations may include installation requirements, user training and preventive maintenance to preserve performance.
Expected lifespan based on use and maintenance
Model YR05284-1 (current) Nominal Voltage AC 380 V three-phase or single-phase 50/60 Hz Power 18kw Chamber Size 400x400x400mm, 64L Max. Temperature 1700 °C Continuous Operating Temperature 1600 °C Max. Heating Rate 30 °C /min; it is suggested to use 10°C/min below 1400°C, 1400°C-1600°C 5°C/min, >1600°C 2°C/min Temperature Controller PID automatic control and auto-tuning function. 30 programmable segments for precise control. Integrated over-temperature and thermocouple break protection. Temperature Accuracy +/- 1°C Heating Element MoSi2 Heater Thermocouple Type B Standard Parts 2 pcs backup heater, 1 pc crucible tongs, 1 pair asbestos gloves, one user manual
Service life depends on usage frequency, cleaning, storage, calibration when applicable and adherence to technical recommendations. A structured maintenance plan helps preserve accuracy, safety and operational continuity.
Support and spare-parts availability oriented to Germany helps preserve service continuity and plan preventive maintenance without extended downtime.
Specifications table for the Furnace YR05284-1
Furnace YR05284-1
Estructura y cámara del horno:
Aislamiento de alúmina fibrosa de alta pureza para un máximo ahorro de energía 60-80%menos consumo de energía que otros de estilo antiguo. Estructura de doble capa de alta resistencia con ventilador de refrigeración para mantener el horno exteriorssafe al tacto.
Especificación Técnica:
| Model | YR05284-1 (current) |
| Nominal Voltage | AC 380 V three-phase or single-phase 50/60 Hz |
| Power | 18kw |
| Chamber Size | 400x400x400mm, 64L |
| Max. Temperature | 1700 °C |
| Continuous Operating Temperature | 1600 °C |
| Max. Heating Rate | 30 °C /min; it is suggested to use 10°C/min below 1400°C, 1400°C-1600°C 5°C/min, >1600°C 2°C/min |
| Temperature Controller | PID automatic control and auto-tuning function. 30 programmable segments for precise control. Integrated over-temperature and thermocouple break protection. |
| Temperature Accuracy | +/- 1°C |
| Heating Element | MoSi2 Heater |
| Thermocouple | Type B |
| Standard Parts | 2 pcs backup heater, 1 pc crucible tongs, 1 pair asbestos gloves, one user manual |
Frequently Asked Questions about the Furnace YR05284-1
How do I choose the right Furnace YR05284-1 for my laboratory?
Selection should start from workload, critical technical parameters, available space and frequency of use. Kalstein can support the comparison between operational needs, budget and maintenance requirements to avoid choosing equipment that is oversized or insufficient.
What should I review before requesting a quotation?
Review the model, technical specifications, required accessories, electrical conditions, consumables, delivery timing and installation needs. With this information, the quotation can be prepared more accurately and aligned with the laboratory workflow.
Does Kalstein provide guidance for this type of equipment?
Yes. The commercial and technical team can support product evaluation, explain differences between models, answer application questions and advise on preventive maintenance, spare parts and documentation required for a secure purchase.
What maintenance helps extend the equipment lifespan?
Follow the manufacturer manual, perform regular cleaning, verify calibrations or controls when applicable, avoid workload abuse and keep maintenance records. Stable use and preventive routines reduce failures and improve operational continuity.
