Inclusion Center YR439-1
Inclusion Center YR439-1 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.

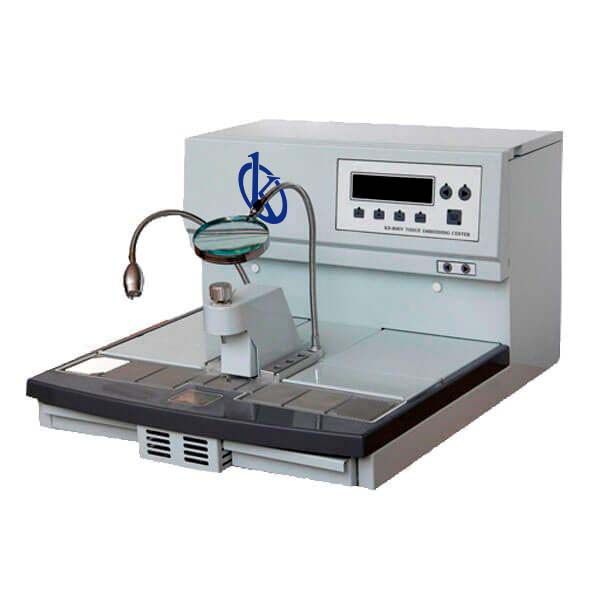

The Inclusion Center YR439-1 is a cutting-edge device designed for histology laboratories that require precision and efficiency. With an imported OLED module screen, this embedding center offers clear data visualization from any angle. Its intuitive interface, complete with work status icons and LED buttons, enables seamless monitoring of the operating status. Fully automated with computer control, users can program the system to operate at any selected time, ensuring flexibility and convenience. This product is equipped with a highly efficient temperature control system, using a U.S. imported block with PID control of seven independent channels, thus avoiding interference between them and ensuring optimal performance.
Market Price
The Inclusion Center YR439-1 is competitively positioned in the market, with the average price ranging between $4,700 and $5,500 USD. Considering its advanced features and technological edge, this investment is advantageous for any laboratory seeking to enhance its tissue embedding processes with high efficiency and accuracy.
Frequently Asked Questions
What is the capacity of the paraffin chamber?
The paraffin chamber has a capacity exceeding 6 liters.
How is the paraffin flow controlled?
The paraffin flow is managed through a touch plate and an optional pedal.
What is the temperature control precision?
The temperature precision is maintained at ±1%.
Advantages and Disadvantages
Advantages:
- High precision: Ensures exact temperature settings with advanced PID technology.
- Energy efficiency: Features innovative heating elements that contribute to energy savings.
- Versatility: Equipped with dual operational modes and a multifunctional design, making it adaptable to various lab settings.
Disadvantages:
- Initial investment: The cost might seem high for some laboratories, but the benefits outweigh the initial expenses.
- Space requirements: Due to its dimensions, sufficient laboratory space is necessary for this equipment.
Field Use
The Inclusion Center YR439-1 is predominantly utilized in histology labs for embedding tissue samples. Its precise temperature control and programmable settings suit high-demand environments, providing consistent and excellent results in sample processing.
Recommendations
To keep the Inclusion Center YR439-1 performing at its best, regular maintenance, especially of the temperature sensors and heating elements, is recommended. Proper training for staff on using the programmable and automated features will ensure the equipment’s durability and optimal performance. Don't let this opportunity pass; enhance your lab's productivity and precision. Request a quotation or generate one automatically via the Kalstein Plus platform and experience the transformation with the Inclusion Center YR439-1.
Features
- Advanced OLED screen for clear data visualization
- Independent channel PID temperature control
- Full programmable ON/OFF scheduling
- High-capacity paraffin chamber
- Energy-efficient heating elements
- Double overheat protection
Technical Specifications
| Model | YR439-1 |
| Paraffin Chamber Capacity | ≥6 liters |
| Temperature ranges | RT - 85 ℃ |
| Temperature control precision | ± 1% |
| Paraffin flow control | Paraffin flow control via touch plate and optional pedal |
| Fully programmable ON / OFF control allows automatic start and stop from the system at any time weekly | |
| Paraffin Chamber Dimensions (BMIV) | 495 × 132 × 95 mm (width x depth x height) |
| Thermal camera dimensions (each) | 240 × 160 × 50mm (width x depth x height) |
| Keying module workspace | 540 mm × 93 mm |
| Small cold plate dimensions | 60 × 50 mm |
| Operating voltage | AC 220V ± 10% 50Hz (standard model); AC110V ± 10% 60Hz |
| Power | 1000W |
| Dimensions | 670×575×395mm(W x D x H) |
| Net weight | 38.5kg |
Technical specifications
| Dimensions | L 78 × W 70 × H 55 cm |
|---|---|
| Weight | 64 kg |
| Manufacturer | Kalstein |
Frequently asked questions
How to know the prices of Inclusion Center YR439-1?
To know the price of Inclusion Center YR439-1, please send us an email with your request through the contact form AQUI.
What are the delivery times for Inclusion Center YR439-1?
Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.
How to make a purchase of Inclusion Center YR439-1?
You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.
How does the warranty work for Inclusion Center YR439-1?
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.
Can I request a quote online for Inclusion Center YR439-1?
Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
