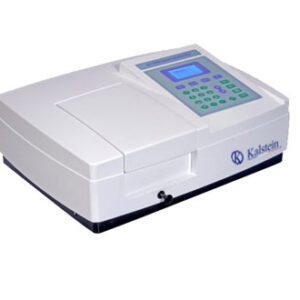

Visible Spectrophotometer – YR01845

FabricantKalstein



Description

The Visible Spectrophotometer YR01845 is an advanced piece of equipment designed for precision in chemical, biological, and quality control laboratories. Featuring a wavelength range of 325 to 1000 nm, this spectrophotometer ensures excellent performance in generating clear and accurate measurements. It boasts a 2.5-inch LCD screen displaying standard curves and result groups, with a capability of showing up to five results simultaneously. The single-beam optical system with a grating of 1200 lines/mm is central to its accuracy. Additionally, the device is equipped with a USB port for PC connectivity, enabling spectrum scanning and enhanced data management using optional software for a comprehensive analysis experience.

Market Price

The Visible Spectrophotometer YR01845 is competitively priced in the market, generally ranging between $1246 to $2000 USD, depending on the configuration and additional accessories chosen. This price point provides an excellent balance between affordability and quality, making it an attractive option for labs in search of durable and exact instruments. Don’t miss out on the chance to tailor this essential equipment to your laboratory’s needs by generating a quote through Kalstein Plus, ensuring optimal solutions for your team’s activities.

Frequently Asked Questions

  • What are the main applications of the YR01845?
    This spectrophotometer is perfect for absorbance and transmittance analysis in research, pharmaceutical, and food industries, as well as for quality control purposes.
  • Is additional software needed to operate it?
    No additional software is required for basic operations, though connecting to a PC via USB with optional software can enhance data management and analysis capabilities.
  • Does it feature internal storage?
    Yes, it can store up to 200 results, allowing labs to maintain records without being reliant on computer systems.

Advantages and Disadvantages

Advantages:

  • High precision: Its robust grating system and tungsten lamp guarantee reliable results.
  • Clear LCD display: Facilitates easy visualization of data and results.
  • USB connectivity: Allows integration with PCs, enhancing the scope for advanced data analysis.

Disadvantages:

  • Weight: At 8 kg, it might be less suitable for labs that require frequent relocation of equipment.
  • Cost of additional software: While optional, the software incurs additional costs, potentially affecting labs with budget constraints.

Field Use of the Product

The YR01845 is widely used in research and quality control labs across sectors including pharmaceuticals, chemicals, and food industries. Its capacity to manage standard curves allows for detailed analysis, ensuring the precision required in environments where product quality assurance is critical.

Recommendations

For optimal performance of the Visible Spectrophotometer YR01845, regular calibrations and maintaining the instrument in a clean, moisture-free environment are crucial. Proper care of the tungsten lamp is also recommended for consistent readings over time. Utilizing the optional software for data connectivity can significantly enhance long-term projects. Request a tailored quote through Kalstein Plus to customize this device to meet your laboratory’s unique requirements and ensure superior analysis capabilities.

Features

The Visible Spectrophotometer YR01845 includes a clear LCD display, single beam optical system, wavelength range from 325 to 1000nm, USB connection, and internal storage for up to 200 results, making it a versatile choice for labs.

Technical Specifications

Model YR01845
Optical System Single Beam, grating 1200 lines/mm
Wavelength Range 325-1000nm
Spectral Bandwidth 4nm
Wavelength Accuracy ±2nm
Wavelength Repeatability ≤0.5nm
Wavelength Setting Manual
Photometric Accuracy ±0.5%T
Photometric Repeatability ≤0.2%T
Photometric Range -0.3-3A, 0-200%T, 0-9999C
Photometric Mode T, A, C, F
Stray Light ≤0.2%T@360nm
Stability ±0.002A/h @ 500nm
Display LCD
Detector Silicon Photodiode
Output USB Port & Parallel Port (Printer)
Light Source Tungsten Lamp
Power Requirements AC85~250V
Dimension 420*280*180mm
Weight 8kg

Additional information

Weight 12 kg
Dimensions 59 × 45 × 32 cm
