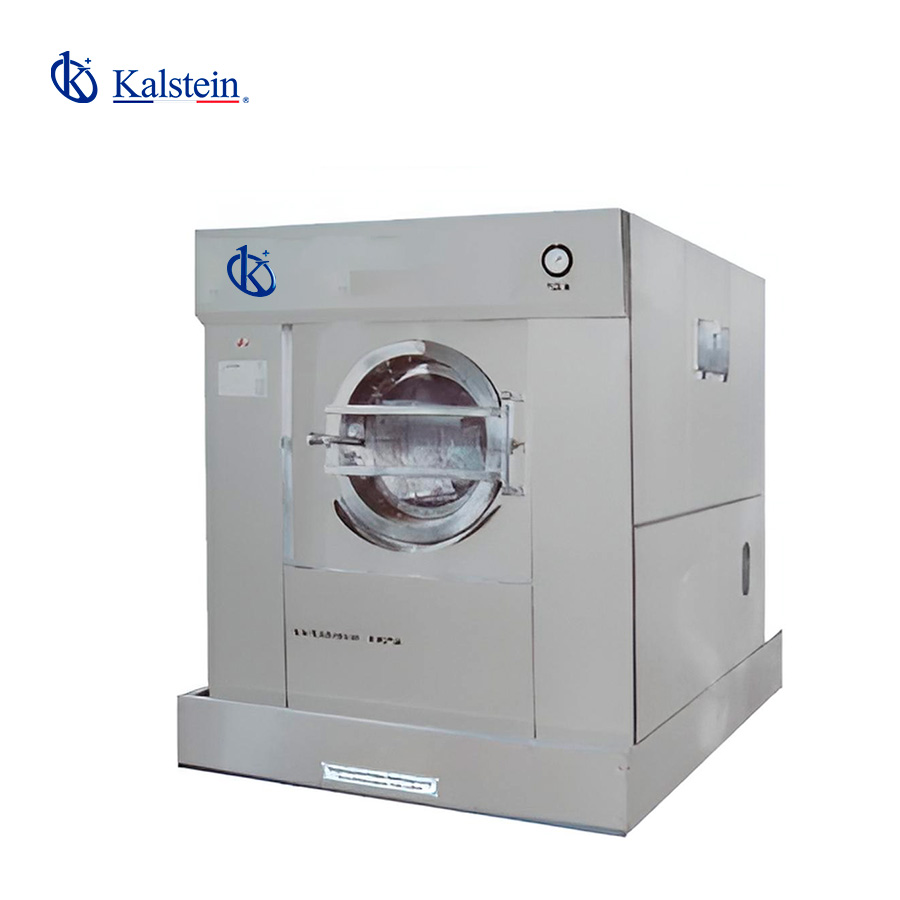

Tilt Washing Machine Steam/Electric YR06299//YR06301

ManufacturerKalstein

Description

The Tilt Washing Machine Steam/Electric YR06299//YR06301 is an advanced and robust industrial washing machine designed to handle large loads with efficiency and precision. It is equipped with a combination of internal and external drums and features like a rotating lifting bearing system, damping springs, and an impact reducer. Designed for high extraction efficiency, it offers four adjustable speeds controlled by an LS inverter, tailoring the washing and extraction process to the type of fabric. Constructed with high-quality stainless steel, this machine ensures exceptional durability and resistance to corrosion, promising long-term reliable performance.

Market Price

The price range for high-capacity industrial washing machines like the Tilt Washing Machine Steam/Electric YR06299//YR06301 typically starts from around $30,000 to $31,000. This range gives buyers an idea of what to expect when looking to invest in a machine with these specifications. To get a personalized quote that fits your specific needs, consider generating an automatic quote through our platform Kalstein Plus.

Frequently Asked Questions

  • What is the maximum capacity of this washing machine? The YR06299 model can handle up to 100 kg, YR06300 up to 130 kg, and the YR06301 can manage up to 150 kg.
  • What materials is the machine made of? It’s made with high-quality stainless steel to boost durability and resist corrosion.
  • Can the speed be adjusted? Yes, the machine has an LS inverter that allows precise adjustment of washing and extraction speeds.

Advantages and Disadvantages

One of the standout advantages of the Tilt Washing Machine Steam/Electric YR06299//YR06301 is its ability to handle large loads efficiently, saving time in industrial settings. Its stainless steel construction offers excellent durability and corrosion resistance. However, due to its size, this machine may require considerable space and an adequate power supply for optimal performance.

Usage in the Field

This washing machine is ideal for use in commercial laundries, hotels, and textile industries where high-capacity and high-efficiency washing is crucial. Its adjustable speed settings make it versatile for different types of fabrics, ensuring that delicate materials are protected while heavily soiled items are thoroughly cleaned.

Recommendations

To maximize the life and efficiency of the Tilt Washing Machine Steam/Electric YR06299//YR06301, regular maintenance is recommended. Ensure that the machine is installed on a stable, level surface, and follow the manufacturer’s guidelines for load limits and maintenance schedules. For precise speed adjustments and optimum performance, engage the LS inverter settings appropriately.

Features

  • High-capacity models supporting up to 150 kg loads.
  • Stainless steel construction for durability and corrosion resistance.
  • Adjustable washing and extraction speeds with a reliable inverter.
  • Four different speed settings to cater to various fabric types.
  • Constructed of a combination of drums and innovative systems for efficient washing.

Technical Specifications

Model YR06299 YR06300 YR06301
Rated Capacity 100kg 130kg 150kg
Drum Dimension 1200-900mm 1300*985mm 1470-880mm
Door Size 650 or 700mm 720 or 800mm
Motor Power 9kw, 1440r/min 11, 1440r/min 18.5, 1440r/min
Washing speed 30 r/min 32 r/min 38 r/min
Extracting speed 600 r/min 650 r/min 48-580 r/min
Inverter Power 12kw 15kw 20kw
Inlet of Water 50inch 50inch 3inch
Inlet of Chemical 3/4inch 3/4inch 1inch
Inlet of Steam 1inch 1inch 1 1/2inch
Steam Pressure 0.4-0.6 Mpa
Water Pressure 0.2-0.3 Mpa
Drain Pipe 102 mm 114*2 mm 150 mm
Water consumption <=25 Vkg
Dimension 1700x2300x2000mm 1810x2520x2180mm 2500x2280x2280mm
Weight 4000kg 4500kg 5000kg
