Portable Veterinary Video Endoscope YR06151//YR06155

ManufacturerKalstein

Description

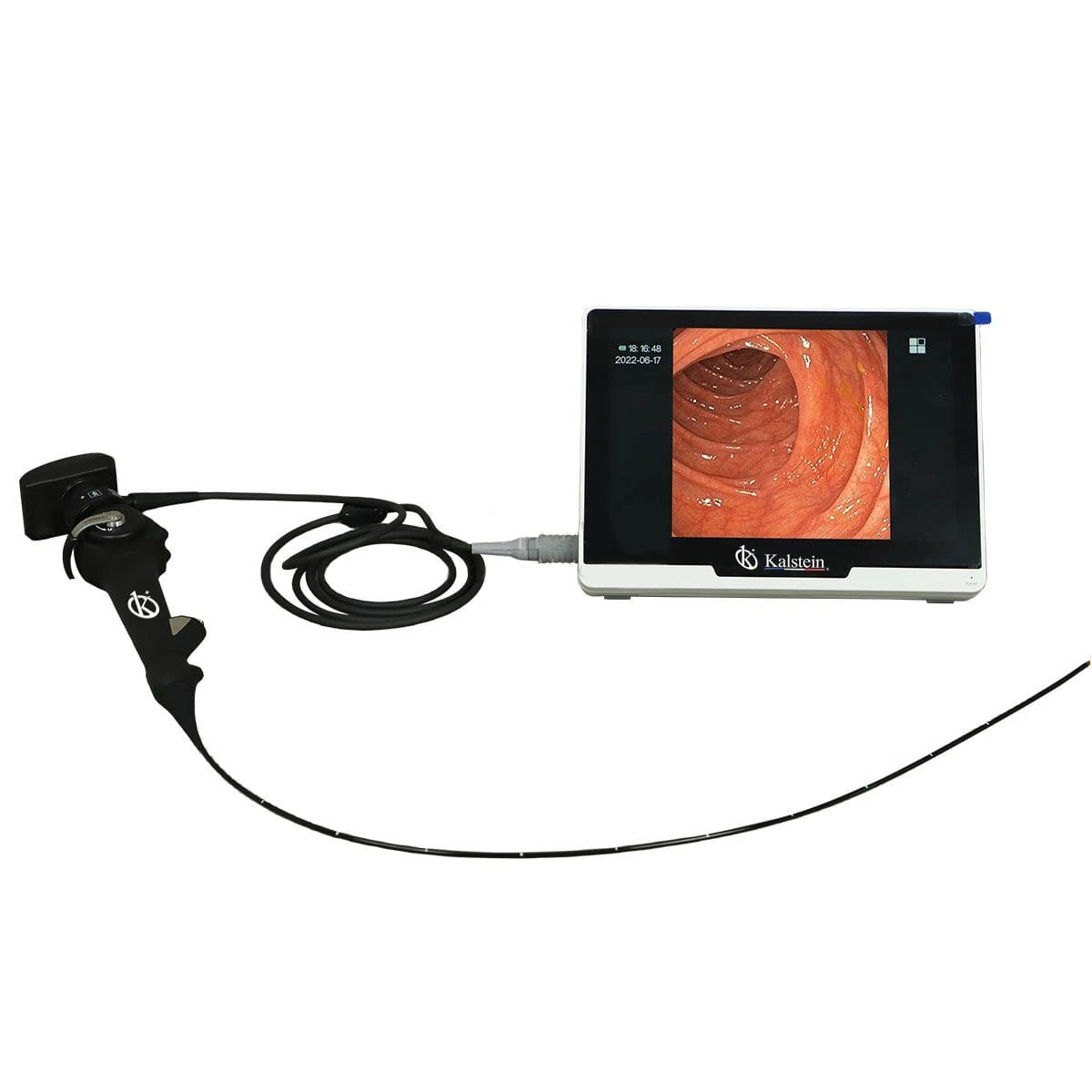

The Portable Veterinary Video Endoscope YR06151//YR06155 is a cutting-edge tool designed for veterinary professionals seeking precision and versatility. Equipped with a high-resolution CMOS sensor, this video endoscope ensures crystal-clear images with real-time display and zero transfer delays. Its durable LED light source and multifunction handle buttons, which allow for one-handed operation, make this device user-friendly for veterinarians in various settings. With four-directional observation and a rotatable video adapter cable, it offers unparalleled flexibility in applications ranging from bronchoscopy to urethral examinations. Its wide range of veterinary applications, alongside its robust design, makes it an essential tool for modern veterinary practices.

Market Price

The average market price for portable veterinary video endoscopes similar to the YR06151//YR06155 ranges approximately between $11,500 and $12,500 USD. This price range underscores the value and high-quality features of the device, making it a competitive option for veterinary practitioners looking to enhance their diagnostic capabilities.

Frequently Asked Questions

What types of examinations can this endoscope perform? The device is suitable for bronchoscopy, rhinoscopy, lung depth detection, urethral and bladder examinations, among others.

Is the endoscope easy to operate for a single veterinarian? Yes, it has multifunction handle buttons designed for convenient single-handed operation, allowing veterinarians to focus on the procedure.

Advantages and Disadvantages

Advantages of the Portable Veterinary Video Endoscope include high-resolution imaging, a wide range of motion, and multifunctional capabilities. However, the initial investment may be substantial for smaller clinics, and training might be required to fully utilize its capabilities.

Field Usage

In practical scenarios, this endoscope is invaluable for conducting detailed internal examinations with minimal discomfort to the animal. Its ability to capture photos and videos during procedures aids in diagnostics and enhances communication with pet owners.

Recommendations

To maximize the longevity and effectiveness of the endoscope, regular maintenance and calibration are advised. Proper cleaning after each use and storing it in a secure, dust-free environment will help maintain its performance.

Features

  • High-resolution CMOS sensor for clear, delay-free imaging
  • Four-directional observation capability
  • Portable design with durable LED light source
  • Rotatable video adapter cable, enhancing operational flexibility

Technical Specifications

Model Diameter of Insertion Tube Working Channel Working Length View Angle View Depth Range of Bending Screen size
YR06151 2.8 mm 1.2 mm 610 mm 120° 3-200 mm 210° (U), 130° (D)
120° (R), 120° (L)
10-inch
YR06152 3.8 mm 1.5 mm 1000 mm 120° 3-200 mm 180° (U), 130° (D)
120° (R), 120° (L)
10-inch
YR06153 4.8 mm 2.0 mm 1000 mm 120° 3-200 mm 180° (U), 130° (D)
120° (R), 120° (L)
10-inch
YR06154 5.8 mm 2.8 mm 1500 mm 120° 3-200 mm 180° (U), 130° (D)
120° (R), 120° (L)
10-inch
YR06155 5.8 mm 2.8 mm 1500 mm 120° 3-100 mm 180° (U), 130° (D)
120° (R), 120° (L)
4-inch

Additional information

Weight N/A
Dimensions 66 × 50 × 22 cm
Model

YR06151, YR06152, YR06153, YR06154, YR05155
