Description

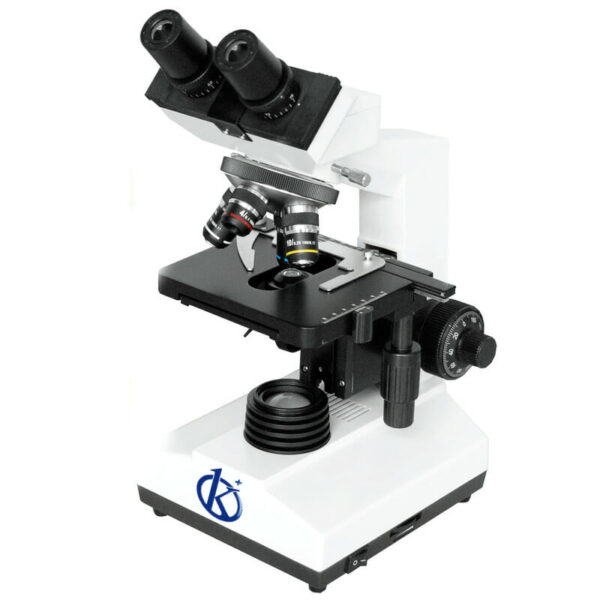

The Phase contrast microscope YR05792-1 is a high-quality, versatile instrument designed for detailed biological examinations. It features a classic 107BN biological microscope of phase contrast version, including a 40x phase contrast objective and a specialized condenser. With a large mechanical stage of 140×140 mm and a movable range of 50×75 mm, its design enhances precision and ease of use. The microscope is equipped with an adjustable 3W LED light source that ensures bright and clear imagery for all your observations.
Market Price
The Phase contrast microscope YR05792-1 is competitively positioned in the market. Similar models typically range between $700 and $1,200 USD, depending on the specifications and additional features. This pricing strategy allows access to high-quality optical instruments without compromising on essential functions or optics.
Frequently Asked Questions
What is the power supply type for this microscope?
This microscope supports AC 110V-240V power supply, making it suitable for international use.
Does it come with additional eyepieces or objectives?
Yes, it includes an achromatic objective of 4x/0,10, 10x/0,25, and 100xs/1,25 (oil), along with two WF10x/18 mm and two WF16x/11 mm eyepieces.
Advantages and Disadvantages
Advantages: This model offers excellent stability and precision with its adjustable tension and safety stop locking ring. The 360° head rotation provides flexibility during observation sessions.
Disadvantages: Although it includes a powerful LED light source, the halogen option might entail extra cost if selected over the standard LED.
Product Use in Field
This phase contrast microscope is ideal for biological and medical applications such as observing live cells and microorganisms in laboratories. Its precise focusing scale and high-definition optics render it perfect for educational, clinical, and research purposes.
Recommendations
Regularly clean the lenses with appropriate solvents to maintain the microscope’s clarity and optics. Engage the safety stop locking ring to protect the specimen during observation. Use the Phase contrast microscope YR05792-1 with Kalstein Plus for timely updates and maintenance checks.
Features
- Phase contrast objective 40x
- Phase contrast condenser for 40x
- 10x centering telescope, green filter included
- Large mechanical stage 140×140 mm
- High brightness 3W LED light source
- Adjustable intensity and power supply range of AC 110V-240V
Technical Specifications
| Model | YR05792-1 |
| Phase contrast | 40x phase-contrast objective, Abbe NA1.25 condenser, 40x phase-contrast diaphragm, 10x telescope, green filter |
| Type of power supply | AC 110V-240V |
| Transmitting Light | Halogen 6V20W or LED |
| Type of light source | halogen |
| Capacitor NA | Mirror |
| Capacitor type | 1.25 |
| Capacitor characteristics | Abbe + Iris diaphragm |
| Focusing scale | Filter holder |
| Focus range | Iris diaphragm |
| Type of approach | Rack and pinionↆ↑. |
| Focusing functions | 0.002 mm |
| Working in motion stage | 37.7 mm |
| Size of the working stage | Coaxial Coarse and Fine |
| Type of work stage | Adjustable tension |
| Target | Safety stop locking ring |
| Type of target | 50x75mm, Accuracy 0.1mm |
| Nozzle holes | 140x140mm |
| Nozzle characteristics | 2 mechanical layers |
| Ocular | Achromatic 4x/0,10, 10x/0,25, 100xs/1,25 (oil) |
| Eyepiece diameter | Achromatic |
| diopter of the head | 4 holes |
| interpupillary head | Exterior |
| Head rotation | WF10x/18 mm, 2 pcs. WF16x/11 mm, 2 pcs. |
| Head tilt | 23.2 mm |
| Head type | Both tubes adjustable |
| Standard extension | 55~75mm |
| Optical system | 360° head rotation |
| Standard function | 45° |
