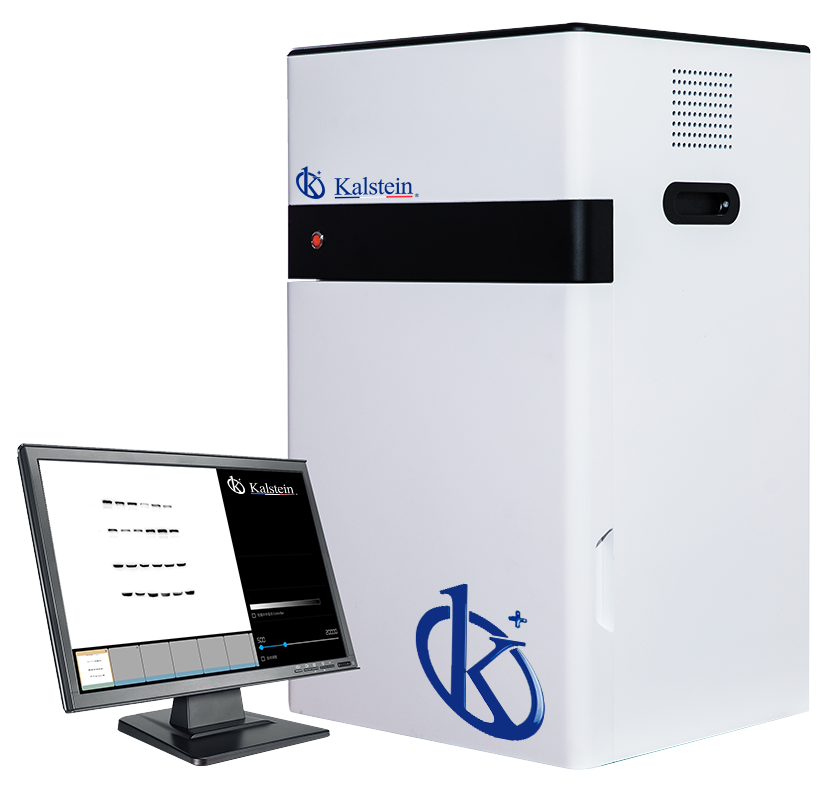

Multifunctional Imager YR06067–YR06068

Manufacturer: Kalstein

Description

The Multifunctional Imager YR06067–YR06068 is a versatile and user-friendly device designed to meet the demanding needs of laboratories and research facilities. It features a large view area of up to 20×20 cm, making it perfect for various imaging applications, particularly in Western blot analysis with ECL. Equipped with a cooled digital camera that incorporates a highly sensitive CCD chip, this imager ensures precise and reliable results. Additionally, the device supports a broad range of functionalities through optional accessories, tailor-fitting the device to specific experimental requirements. The software provided with the imager is unlimited, with free downloads and updates, ensuring continuous improvement and adaptability to new techniques and methodologies.

Market Price

The price for the Multifunctional Imager YR06067–YR06068 generally ranges from $15,000 to $20,000 depending on additional accessories and specific configurations required. This places it competitively among other high-end imaging systems in the market, offering excellent value for its advanced features and robust performance.

Frequently Asked Questions

Q: What is the main difference between models YR06067 and YR06068?
A: The primary difference lies in the sensitivity of the scientific lens; YR06067 has a sensitive F0.95 lens, while YR06068 boasts an ultra-sensitive F0.8 lens, providing enhanced light capture for even lower signal levels.

Q: Is the software easy to install and update?
A: Yes, the image acquisition and analysis software is user-friendly with no dongle required, unlimited users can access and it includes free updates.

Advantages and Disadvantages

The primary advantages of the Multifunctional Imager YR06067–YR06068 include its high-resolution imaging capabilities, ease of use, and adaptability to various laboratory protocols through optional accessories. Its robust software support ensures that users can manage data efficiently. However, the relatively high initial investment and the need for specific environmental conditions for optimal cooling may be considered disadvantages by some potential users.

Field Usage

In practical settings, the Multifunctional Imager YR06067–YR06068 is used extensively for Western blot imaging, given its capability to handle chemiluminescence applications effectively. The wide dynamic range and high pixel density ensure that faint signals are captured accurately, making it invaluable in fields such as molecular biology and medical diagnostics.

Recommendations

To maximize the performance and lifespan of the Multifunctional Imager, it is recommended to perform regular maintenance checks and ensure that the device is operated within its specified thermal conditions. Additionally, familiarizing the laboratory personnel with the software capabilities through training can enhance the quality and throughput of imaging applications.

Features

  • Large view area (maximum 20x20cm)
  • Easy to use
  • Standard Western blot imager with ECL
  • Wide application with optional accessories
  • Cooled digital camera adopting sensitive CCD chip
  • Unlimited Software, free download, free update.

Technical Specifications

Model YR06067 YR06068
Digital Camera Cooled CCD Camera
Physical Resolution 6 Megapixels,2750*2200
Pixel Density and A/D 16 Bit
Grey Scales 65536
Dynamic Range ≥4.6OD
Cooling Temperature -60℃ below ambient, -30℃ regulated
Scientific Lens (Difference between both models) Sensitive F0.95 Lens Ultra sensitive F0.8 Lens
Chemiluminescence sample tray 4 Layer
UV Transmission 302nm-312nm, area:21x26cm
White LED Transmission Area: 19x26cm
Filter Wheel FIve position
Filter Gel Doc Filter
UV Protection UV Protection Shield
Image Acquisition Software No software dongle required, unlimited users, free update
Image Analysis Software No software dongle required, unlimited users, free update

Additional information

Weight 29 kg
Dimensions 50 × 55 × 88 cm
Model

YR06067, YR06068
