Description

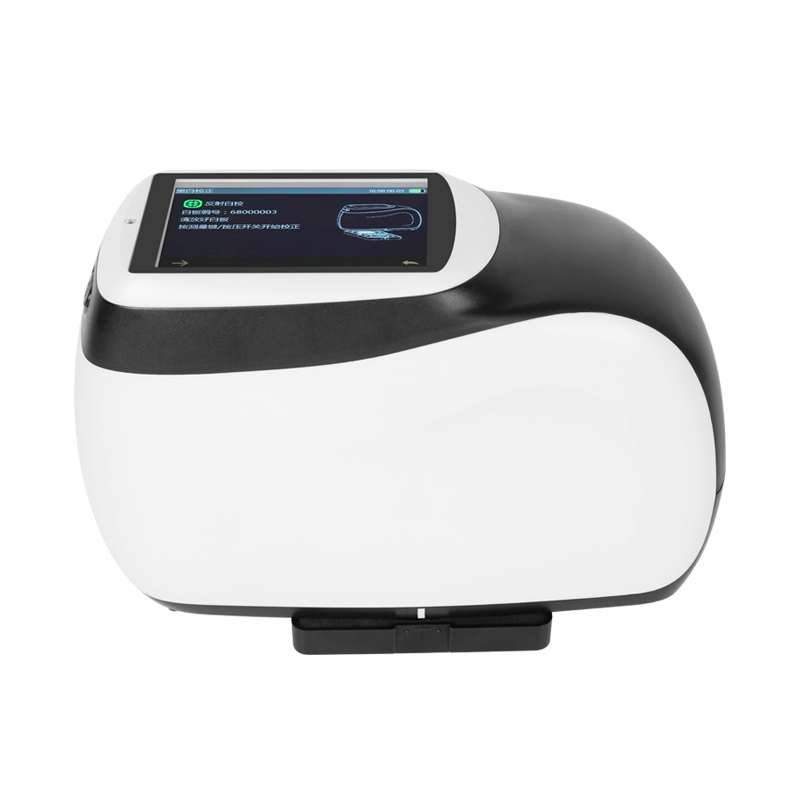

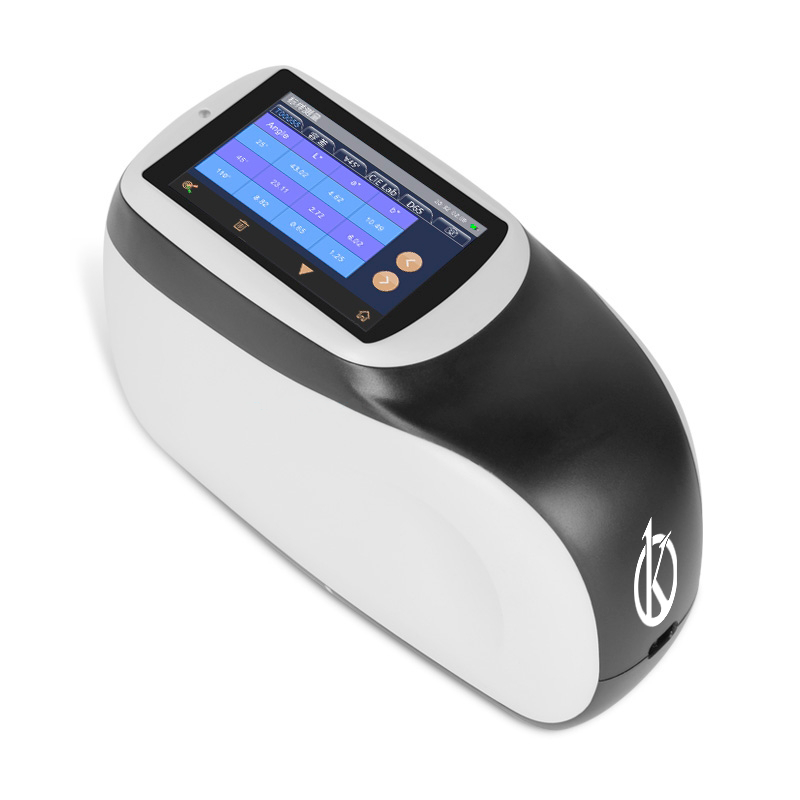

The Multi-Angle Spectrophotometer with 8 Angles YR05491 // YR05492 is a cutting-edge tool from Kalstein designed for precise color analysis. Ideal for examining products with metallic and pearlescent finishes, this spectrophotometer is equipped with advanced technology that allows for a thorough evaluation across multiple angles. It utilizes a state-of-the-art optical system with a 256-element CMOS image sensor and features a full-spectrum LED light source, ensuring vibrant and accurate color measurements in alignment with international standards such as ASTM, ISO, and SAE.
Market Price
The YR05491 // YR05492 spectrophotometer is competitively priced in the range of $29,500 to $30,500 USD, depending on the model and configuration. This price point makes it a strategic investment for industries focused on maintaining high precision in color quality control. To receive a detailed and personalized quote, utilize the Kalstein Plus platform for a quick and reliable purchasing experience.
Frequently Asked Questions
- What applications are ideal for the YR05491 // YR05492?
The spectrophotometer is perfect for color analysis of products with metallic, pearlescent, and complex special finishes, widely used in automotive, cosmetics, and plastics industries. - Is it compatible with a PC?
Yes, the YR05491 // YR05492 comes with color management software for PC, enabling comprehensive data analysis. - How many samples can it store?
It holds up to 1,000 standards and 4,000 samples, suitable for detailed record-keeping.
Advantages and Disadvantages
The primary advantages of the YR05491 // YR05492 include its high precision with a ΔE*ab standard deviation of 0.03 and robust connectivity options like USB and Bluetooth 5.0. However, its focus on detailed color finish analysis may limit its use for simpler color measurement tasks.
Field Applications

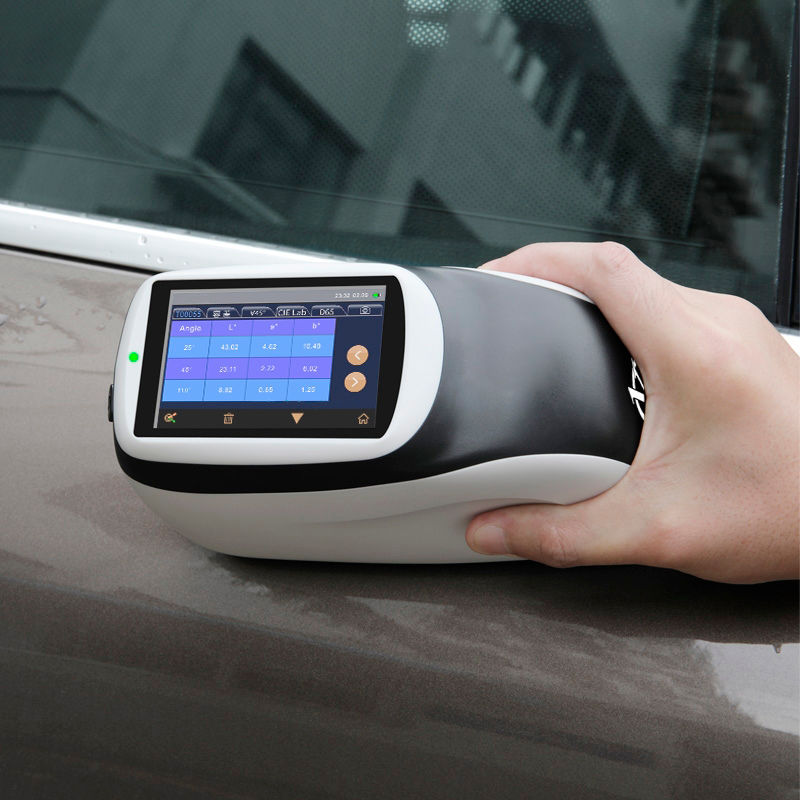

This spectrophotometer excels in ensuring color consistency for products requiring meticulous analysis, such as in the automotive and cosmetics sectors. Its multi-angle measurement capability provides comprehensive insights into color variations and gloss, maintaining the visual quality of the end product. Additionally, its color camera preview aids in precise positioning, enhancing accuracy in both laboratory and production line environments.
Recommendations
To optimize the performance of the YR05491 // YR05492, regular calibration and a dust-free environment are recommended. The lithium-ion battery supports up to 6,000 measurements in 8 hours, requiring regular charging. Visit the Kalstein Plus platform for a personalized quote and explore how the Multi-Angle Spectrophotometer can enhance precision in your industry’s color control processes.
Features
- Multi-angle measurement with up to 12 angles
- Full-spectrum LED with blue enhancement
- High-resolution 256-element CMOS image sensor
- Compatible with ASTM, ISO, and SAE standards
- PC software for advanced data analysis
- USB and Bluetooth 5.0 connectivity
- 3.5-inch TFT color LCD touch screen
- Data storage for up to 1,000 standards and 4,000 samples
Technical Specifications
| Model |
YR05491
|
| Measurement Geometry | 8 measurement angles (6 illumination sources, 2 receivers) |
| Measure Angle | 45° Receiver： |
| 45as-15°,45as15°,45as25°,45as45°,45as75°,45as110° | |
| 15°Receiver： | |
| 15as-45°,15as-15° | |
| Conform to the standards：ASTM D 2244,E 308,E 1164,E 2194, E2539,DIN 5033,5036,6174,6175-1,6175-2;ISO 7724, 11664-4 | |
| SAE J 1545 | |
| Application | Provide accurate and consistent color measurement for metallic, pearlescent and other complex special effect color products |
| Light Source | Full spectrum LED light source with blue enhancement |
| Lamp Life | 5 years, 3 million times measurements |
| Spectrophotometric Mode | Concave Grating |
| Sensor | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400nm-700nm |
| Wavelength Interval | 10nm |
| Measurement Range | 0~600% |
| Semiband Width | 10nm |
| Measuring Aperture | Φ12mm |
| Color Space | CIE LAB,XYZ,Yxy,LCh,βxy,DIN Lab99 |
| Color Difference Formula | ΔE*ab,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE DIN6175 |
| Other Colorimetric Index | Flop Index, Int-Em |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3, F4,F5,F6,F7(DLF), F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) |
| Display | Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset, Color simulation, Sample effect value, Effect difference value |
| Measuring Time | Approx. 1 second for one angle |
| Approx. 8 seconds for all angles | |
| Repeatability | Spectral reflectance: Standard deviation within 0.08% |
| Chromaticity value: ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) | |
| Reproducibility | ΔE*<0.10,avg on the gray tile of BCRA tile set |
| ΔE*<0.25,avg on the color BCRA tile set | |
| Inter-instrument Error | 0.18ΔE*00(avg on reference Series II BCRA tile set) |
| Effect Parameters | Sparkle Grade(SG),Diffuse coarseness(DC) and Color Variation(CV) |
| Effect Measurement | 6 angles Sparkle Grade(SG),Color Variation(CV):15as-45°,15as-30°,15as-15°,15as15°,15as45°,15as80° |
| 15d Diffuse coarseness(DC) | |
| Effect Repeatability | Sparkle Grade(SG) Short-term repeatability: 0.12% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration) |
| Diffuse coarseness(DC) Short-term repeatability:e0.09% (10 times standard deviations) (When a color plate is measured 10 times at 10 second intervals after white calibration) | |
| Effect Reproducibility | Sparkle Grade(SG) Reproducibility: 1.9% (10 times standard deviations) |
| (avg on reference Series II BCRA tile set) | |
| Diffuse coarseness(DC) Reproducibility: 1.4% (10 times standard deviations)(avg on reference Series II BCRA tile set) | |
| Trigger mode | Pressure sensing trigger, button trigger, software trigger |
| Measuring Mode | Single measurement, average measurement (1-99), continuous measurement (1-99) |
| Locating Mode | Color camera preview |
| Dimension | L*W*H=195X83X128mm |
| Weight | About 1Kg |
| Power | lithium-ion battery, 3.7V,3200mAh, Continuous test 6000 times within 8 hours of full charge |
| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Interface | USB, Bluetooth 5.0 |
| Data Storage | 1000 pcs Standards,4000 pcs Samples |
| Language | Simplified Chinese, Traditional Chinese, English |
| Operating Environment | 10℃ to 50℃, humidity does not exceed 85%, no condensation |
| Storage Environment | -20℃ to 50℃, humidity does not exceed 85%, no condensation |
| Calibration | Built-in white board parameters, external white board, black light trap, color board |
| Calibration Interval | 4 hours,8 hours,24 hours,Startup calibration |

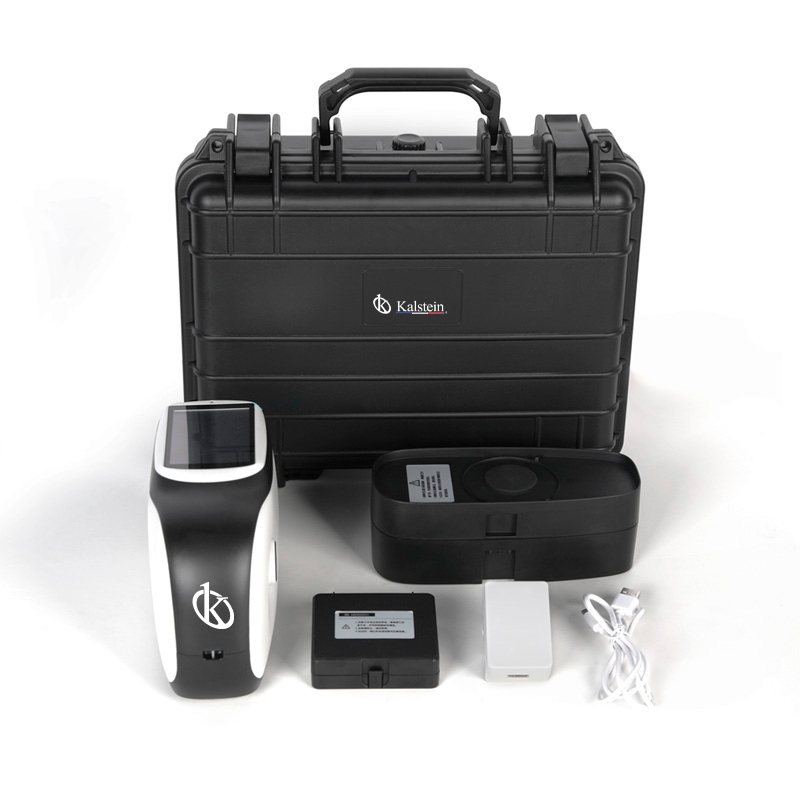

| Standard accessories | Power Adapter, USB Cable, User Guide,PC Software(download from the official website), Calibration Board, black light trap,Protective cap, wristband |
| Optional Accessory | Micro-printer |
| Notes | Technical parameters are for reference only, subject to actual sales products. |
