Description

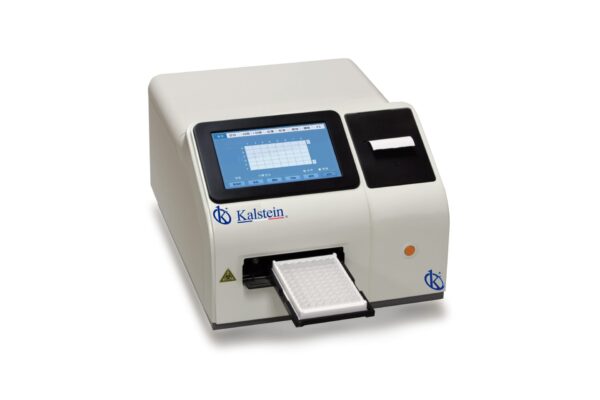

The Microplate Elisa Reader YR05128 is an innovative laboratory instrument designed to deliver precise and efficient results. With a modern design and robust platform, it features a large LCD display with a user-friendly touch screen interface, making operations smooth and intuitive. The device comes equipped with four fixed filters, including waves at 405 nm, 450 nm, 492 nm, and 630 nm, and allows for the addition of three optional filters for enhanced versatility. Its eight-channel optical fiber system ensures rapid reading of a 96-well plate in just five seconds, utilizing a 6V/19W halogen lamp for consistent and reliable performance. This ELISA reader also includes auto self-check capabilities when powered on, with a powerful quality control function to uphold accuracy.
Market Price
When purchasing a Microplate Elisa Reader, you can expect the price to vary significantly based on features and vendor options. However, a general market price for such a device typically ranges between 2500 USD and 3300 USD. For an accurate and competitive quote tailored to your needs, don’t hesitate to request a personal quotation or generate one instantly through Kalstein Plus.
Frequently Asked Questions
- How does the touch screen functionality work? The large LCD touch screen allows for easy navigation and parameter setting, enhancing user experience and minimizing operation time.
- What types of microplates can be used? This reader is compatible with standard 96-well microplates and can accommodate other types and strip configurations as needed.
- Is it suitable for multiple methodologies? Yes, the YR05128 supports methodologies such as Endpoint, Fixed time, and Kinetics, making it versatile for various experiments.
Advantages and Disadvantages
Advantages: The Microplate Elisa Reader YR05128 offers fast and accurate readings, intuitive operation with its touch screen, and a comprehensive range of analytical methodologies. It’s highly adaptable, with room for additional filters, and provides significant data storage capabilities.
Disadvantages: Some users may find the device’s weight of 12 kg relatively heavy if frequent relocation is needed. Furthermore, while the internal printer is convenient, those preferring high-resolution printed outputs might require an external printer.
Product Use in the Field
In practical settings, the YR05128 is highly regarded in clinical laboratories, research institutions, and pharmaceutical environments. It excels in processing multiple samples simultaneously thanks to its rapid reading times. Operator efficiency is further enhanced through its robust memory capacity, supporting up to 100 programs and storing 10,000 sample results, facilitating thorough data management and analysis over extended research periods.
Recommendations
To maximize the utility and longevity of your Microplate Elisa Reader, it is essential to conduct regular maintenance checks and ensure the optical systems are kept clean. When not in use, store the device in a stable environment to protect its electronic components. Also, periodically update the software to guarantee optimal functionality and access to the latest features.
Features
- New design and platform
- Fixed time, End Point methods
- Large LCD display with touch screen
- 4 fixed filters and 3 more filters optional
- 8-channel optical fiber system
- 5 seconds reading for whole plate
- Auto self-check when power on
- Powerful QC function
Technical Specifications
Model | YR05128 |
Absorbance range | 0 – 4.000Abs |
Resolution | 0.001 Abs (displayed), 0.0001 Abs (calculated) |
Light source | 6V/19W halogen lamp |
Optical system | 8-channel optical fiber system |
Lengths | 4 standard filters wave: 405 nm, 450 nm, 492 nm, 630 nm, 3 additional optional filters |
Wavelength accuracy | 2 nm |
Bandwidth | 8 nm |
Calculation method | ABS, cut, multipercentage, percentile registry, linear. Exponential, Index, Regression 4PL, etc. |
Methodologies | Endpoint, Fixed time, Kinetics |
Type | Standard microplate with 96 wells or other types of microplate and strip |
Reading speed | 5 seconds for a 96-well plate (single-wavelength) |
Memory | Storage for up to 100 programs and 10,000 sample results |
Printer | Internal thermal printer, optional external printer |
Dimensions (mm) | 425 (length) x 310 (width) x 215 (height) |
Weight | 12kg |
