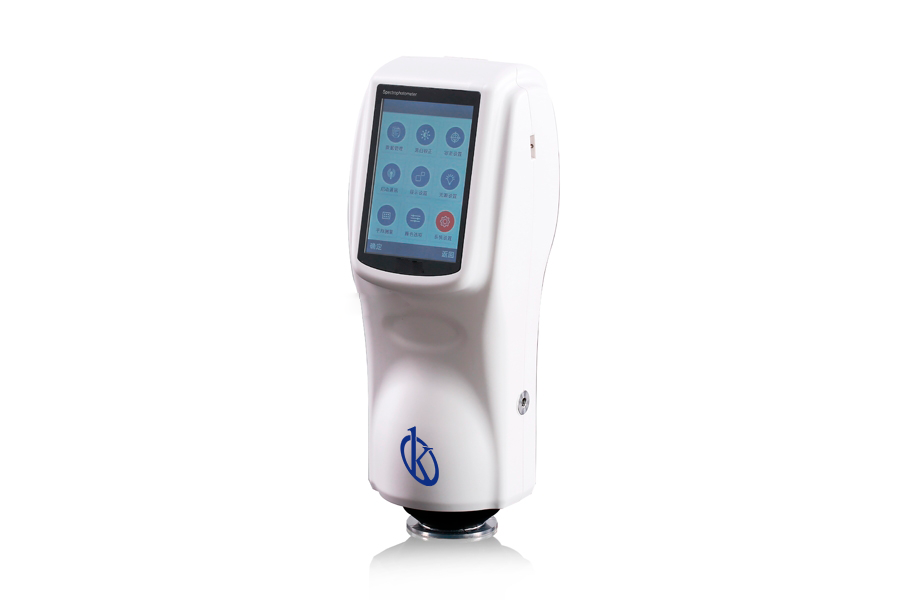

Handheld Color Spectrophotometer YR05496

ManufacturerKalstein

Description

The Handheld Color Spectrophotometer YR05496 is an innovative solution for professionals seeking precision in color management across various industries. Lightweight and ergonomically designed, this portable spectrophotometer offers a 45/0 geometric optical structure and complies with international standards including CIE No.15 and GB/T 3978. With a wavelength range spanning 400 to 700 nm, it ensures high accuracy with a DeltaE*ab index of just 0.04. Its functionalities are enhanced by the SQC8 color management software, enabling seamless data transfer to a PC for comprehensive quality control in industries like plastics, textiles, and more.

Market Price

In the competitive market of color measurement tools, the Handheld Color Spectrophotometer YR05496 stands out with an average price range between $3,700 and $4,100 USD. This pricing reflects not only its superior technical capabilities but also its substantial storage capacity accommodating up to 10,000 samples. Investing in this spectrophotometer means advancing your business’s color control processes through accuracy and reliability. You are encouraged to request a personalized quote or generate one automatically via the user-friendly Kalstein Plus platform.

Frequently Asked Questions

  • What industries can benefit from the YR05496?
    This spectrophotometer is ideal for sectors requiring precise color control, such as plastics, textiles, and even in analyzing food products.
  • How does the device connect to other systems?
    The YR05496 features USB and RS232 connectivity, enabling easy data management when linked with a PC and its advanced color management software.
  • Can the device store historical data?
    Absolutely, it features extensive data storage with a capacity for 1,000 standards and 10,000 samples, perfect for meticulous record-keeping.

Advantages and Disadvantages

The Handheld Color Spectrophotometer YR05496 boasts convincing advantages, such as its lightweight design, high measurement accuracy, and compliance with global colorimetry standards. However, its limitation lies in its wavelength range, confined to the visible spectrum (400-700 nm), which could restrict its use in applications requiring a broader range.

Field Applications

In practical scenarios, the YR05496 spectrophotometer excels in ensuring color consistency throughout the production of materials like paints and textiles. Its portability allows technicians to perform precise measurements directly on factory floors or within laboratory settings. With its ability to simulate colors and process data in real time, it guarantees outstanding quality control.

Recommendations

For optimal performance, regular calibration of the Handheld Color Spectrophotometer YR05496 is essential. It’s recommended to store the device in a clean environment free of dust. Its lithium-ion battery offers up to 5,000 measurements over an 8-hour period, so ensure it’s recharged regularly. For further convenience, request a customized quote or explore the auto-generation feature on Kalstein Plus to see how this tool can transform your industry’s color management process.

Features

  • Ergonomic and portable design weighing only 600 g
  • USB and RS232 connectivity for seamless data transfer
  • 3.5-inch TFT capacitive touchscreen for easy operation
  • High measurement accuracy with ΔE*ab of 0.04
  • Storage capacity of 1,000 standards and 10,000 samples
  • Compatibility with CIE LAB, XYZ, Yxy, LCh, and CIE LUV color spaces

Technical Specifications

Model

YR05496

Illumination/observation system

45/0 method (45 ring-shaped illumination, vertical viewing)

Comply with CIE No.15,GB/T 3978.

Integrating sphere Size

Φ58mm

Light Source

combined LED sources

Sensor

Silicon photodiodearray

Wavelength range

400~700nm

Wavelength pitch

10nm

Reflectance range

0~100%

Measuring Aperture

Φ8mm

Color Space

CIE LAB,XYZ,Yxy,LCh,CIE LUV

Color difference Formula

ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00

v

Other Chromaticity Data

Whiteness – WI(ASTM E313,CIE/ISO,AATCC,Hunter),

Yellowness-YI(ASTM D1925,ASTM 313),

TI(ASTM E313,CIE/ISO),

Metamerism Index (Mt)

Colour Stain, Color Fastness, Color Strength, Opacity

Observer

2°/10°

Illuminant

D65,A,C,D50,D55,D75,F2,F6,F7,F8,F10,F11,F12

Display Data

Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation

Measurement Time

1.5s

Repeatability

Spectral Reflectance: standard deviation within 0.1%(400~700nm: within 0.2%)

Colorimetric Value: Standard deviation within DeltaE*ab 0.04 (Measurement conditions: white calibration plate measured 30 times at 5 seconds intervals after white calibration was performed.)

Inter Instrument Agreement

Within DeltaE*ab 0.2 (Average for 12 BCRA Series II color tiles)

Dimension

L*W*H=90*77*230mm

Weight

600g

Battery

Li-ion battery. 5000 times within 8 hours.

Lamp Life

5 years, more than 1.6 million measurements

Display Screen

TFT 3.5inch, Capacitive Touch Screen

Interface

USB/RS-232

Data Memory

1000 Standards, 10000 Samples

Operating Temperature

0~40℃(32~104°F)

Storage temperature

-20~50℃(-4~122°F)

Standard Accessory

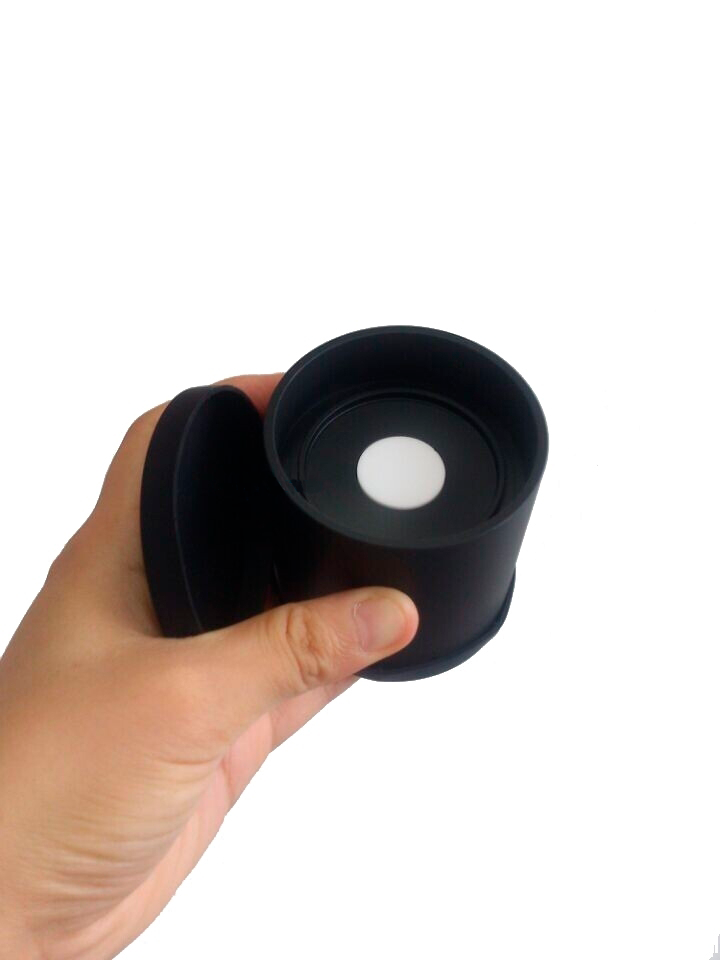

Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM (containing management software), Data Line, White and Black Calibration Cavity, Protective Cover and Wrist Strap

Optional Accessory

Micro Printer, Powder Test Box

Notes

The specifications are subject to change without notice.
