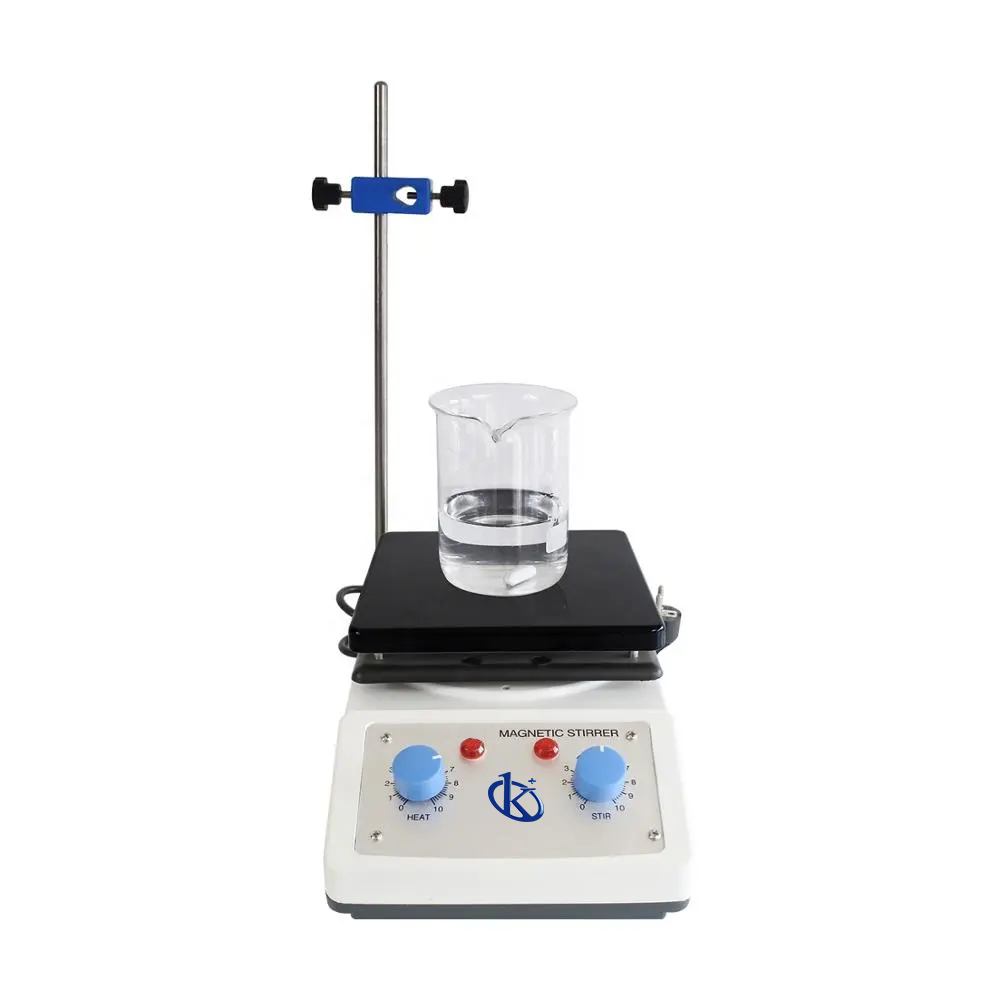

Control Magnetic Stirrer with Stir Bar YR02934

Manufacturer: Kalstein

Description

The Control Magnetic Stirrer with Stir Bar YR02934 is a cutting-edge tool essential for laboratories involved in chemistry and biology experiments. Designed for efficiency and durability, this stirrer provides a quiet, motor-free operation which minimizes maintenance needs. The ceramic-coated aluminum heating plate ensures excellent heat distribution and corrosion resistance, while the adjustable temperature and rotation speed offer precise control over the stirring process. Compact and user-friendly, it’s an indispensable instrument for any lab setting.

Market Price

Magnetic stirrers such as the Control Magnetic Stirrer with Stir Bar YR02934 are generally priced in the market within a range of $380 to $1,152 USD. Our product offers superior functionality at a competitive price, ensuring you receive maximum value for your investment. Customers can explore specific pricing options and even request a quote through the Kalstein Plus platform.

Frequently Asked Questions

  • What is the stirrer’s capacity? The stirrer can handle flask capacities ranging from 50 mL to 5 L.
  • Is it suitable for heated applications? Yes, the stirrer includes a ceramic-coated heating plate that can reach up to 325°C for various heating needs.
  • Does it come with a warranty? Yes, the stirrer typically comes with a manufacturer’s warranty. Please check with your supplier for specific terms.

Advantages and Disadvantages

The Control Magnetic Stirrer with Stir Bar YR02934 boasts several advantages, including its compact size, ease of cleaning, and precise control of temperature and speed. Its corrosion-resistant materials enhance longevity, while the lack of lubricants eliminates contamination risks. However, the primary limitation is the need for occasional recalibration to maintain accuracy in high-precision tasks.

Product Use in the Field

This stirrer is invaluable in laboratory environments, ideal for mixing liquids in hermetically sealed systems due to its low-maintenance, seal-free design. Its digital display and PID auto control allow for precise monitoring and adjustment, making it suitable for sensitive chemical reactions and biological cultures.

Recommendations

To maximize the lifespan and efficiency of your Control Magnetic Stirrer with Stir Bar YR02934, regularly clean the stirring bar and heating plate. Avoid overloading the stir capacity and recalibrate your device periodically to ensure precision. Always follow the manufacturer’s maintenance guidelines.

Characteristics

  • Compact and simple operation
  • Digital temperature and speed display
  • Heat and corrosion-resistant aluminum alloy housing
  • Adjustable temperature up to 380°C and speed from 100 to 1800 RPM
  • Secondary heat insulation to prevent damage to electronics
  • Available in both black and white ceramic top plate materials

Technical Specifications

Model YR02934
Working Area (mm) 180 x 180
Top Plate Dimension(Inch) 7.09 x 7.09
Temperature Control PID Auto control
Top Plate Shape Round or Square
Top Plate Material Black or white ceramic
Temperature Range for machine Ambient to 380 degree
Max Temperature for top plate 325 degree
Temperature Display (°C ) Digital Display
Temperature control PID Auto control
Temperature accuracy +/- 1 degree
Stir Speed 100-1800 RPM
Stir Display Scale
Stir speed accuracy +/- 10rpm
Permissible Ambient Temperature Ambient Temperature to 40°C
Voltage 160 – 240V, or 110-130V
Heating Power supply (w) 550
Motor Power supply 40 W.DC 20
Machine power supply 600
Stirring Flask Capacity (ml) 50ML-5L
Overall Dimensions (mm)
( L × W × H )
391 x 245 x 120
Packing Dimension (mm) 440 x 290 x 170
Shipping Weight (kg) 5.5kg
Shell material Time molding waterproof and dustproof shell with Anti-static paint

Additional information

Weight 5 kg
Dimensions 44 × 29 × 17 cm
