Description

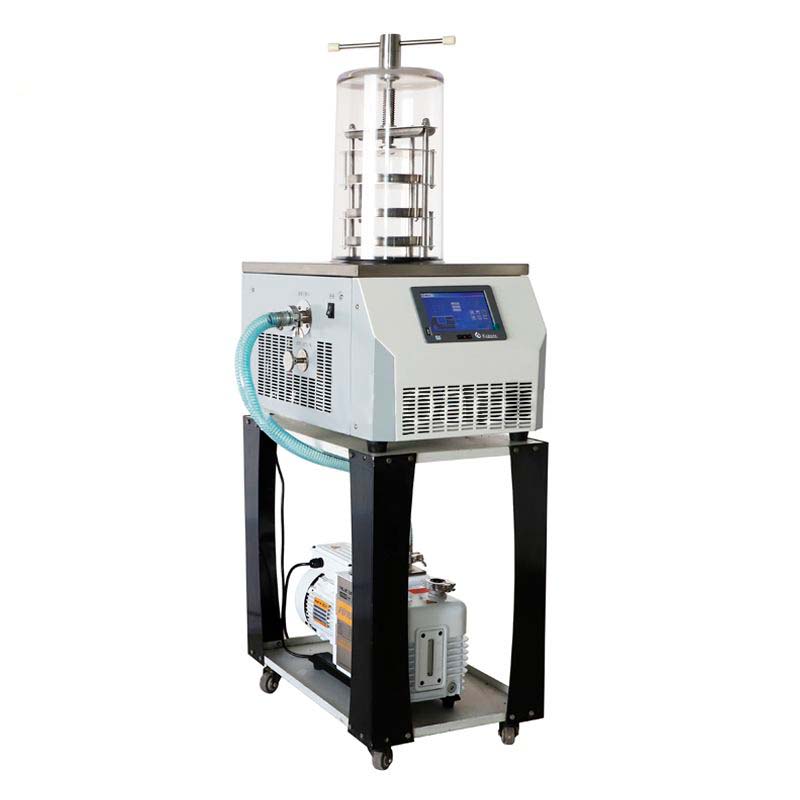

Benchtop Top Press Lab Freeze Dryer YR05187 is a state-of-the-art freeze-drying solution designed for laboratory experiments. This compact, top-press equipment is extensively used across medical, pharmaceutical, and biotechnology fields, as well as in the chemical industry and food production. The freeze-drying process allows for long-term preservation of products, enabling them to be reconstituted to their original state while retaining all chemical and biological properties. Leveraging advanced vacuum freezing drying technology, also known as sublimation drying, this device effectively removes moisture by freezing samples and then sublimating the water content in a vacuum.
Market Price
When considering the purchase of a lab freeze dryer, it’s essential to understand the market dynamics. Currently, the average market price for comparable freeze dryers ranges between $4300 and $5100 USD. However, prices may vary based on features and performance levels. Explore Kalstein’s competitive pricing and discover the advantages of requesting a personalized quote through our innovative Kalstein Plus platform.
Frequently Asked Questions
Potential buyers frequently ask about the YR05187’s operational simplicity and maintenance requirements. Rest assured, this model is designed for easy use and features a clear LCD display with drying curves and an English interface for user-friendly operation. Additionally, inquiries about optional upgrades such as nitrogen valves and cascade refrigeration for enhanced cold capabilities are common and can be explored based on specific experimental needs.
Advantages And Disadvantages
One of the primary advantages of the YR05187 freeze dryer is its CFC-free refrigeration, aligning with environmental standards. The low noise compressor and long service life underscore its efficiency. The stainless steel construction of both the condenser and operation panel ensures durability. Despite its compact design for ease of use, some may find the absence of automated vial handling a minor drawback, requiring manual intervention.
Field Use
This benchtop freeze dryer proves invaluable in real-world applications, from biological specimen preservation to pharmaceutical ingredient preparation. Researchers utilize the machine for freeze-drying sensitive materials where maintaining the integrity of samples is critical. Its customizable tray spacing and optional cooling enhancements make it versatile for various laboratory needs.
Recommendations
To maximize the efficacy and longevity of your YR05187, it’s recommended to periodically check the airtight seals and clean the condenser to prevent frost build-up. Ensure your lab’s ambient temperature does not exceed 25℃ for optimal performance. For users requiring additional functionality, explore the communication interface upgrade for integrated monitoring solutions.
Features
- CFC Free refrigeration

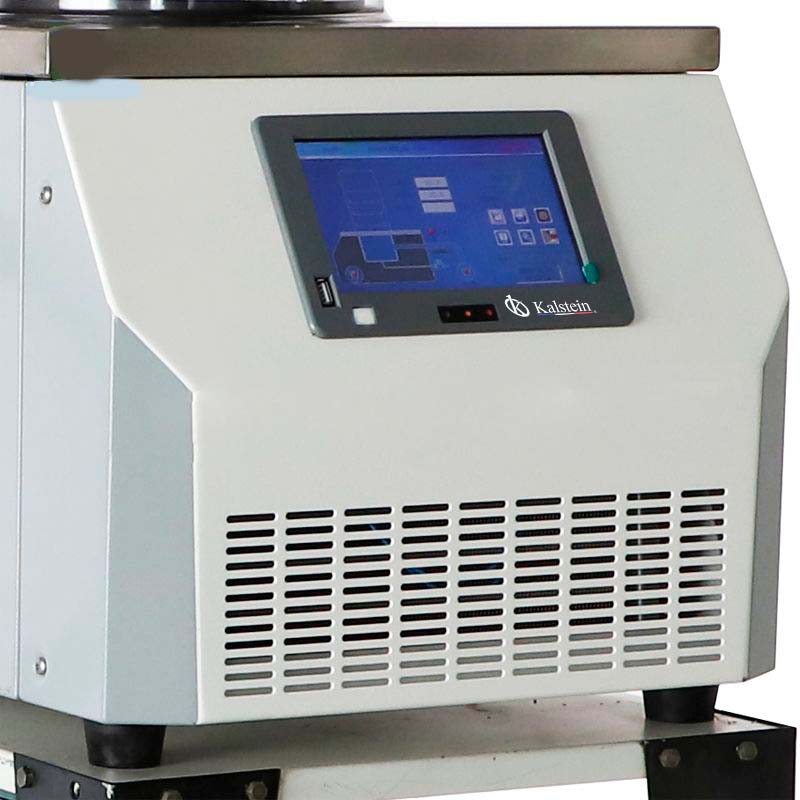

- LCD display drying curves, English interface
- Big opening of condenser, condenser with pre-freezing function
- Low noise compressor, good efficiency, long service life
- Condenser and operation panel are all stainless steel

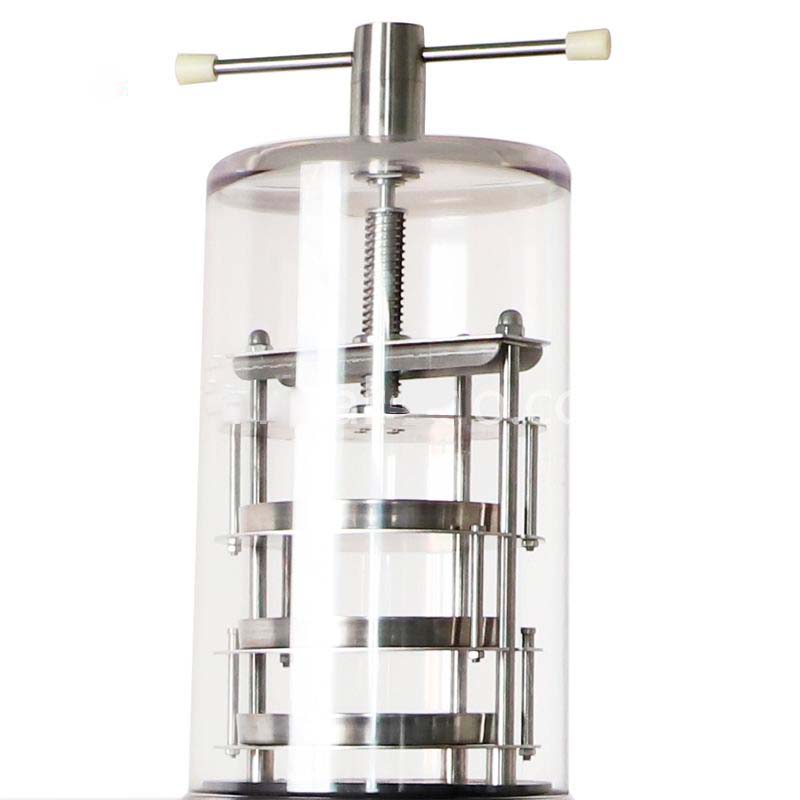

- Drying Chamber with organic glass is safe and visible
- Shelf and tray are stainless steel, tray spacing can be customized
- Small volume, easy and convenient operation
- Nitrogen valve is optional
- Eutectic point test device is optional
- Communication interface is optional
- Cascade refrigeration is optional, applied for -80℃ device
Technical Specifications
Model | YR05187 |
Freeze drying area | 0.08㎡ |
Condenser capacity | 3-4 L /24h |
Condenser temperature | -55℃ (-80 ℃ optional) |
Vacuum degree | < 10 Pa |
Material tray | ¢180mm, 3 layers |
Bulk capacity | 0.8 L, 10mm thickness |
Vial capacity Φ12mm | 560 pcs |
Vial capacity Φ16mm | 285 pcs |
Vial capacity Φ22mm | 165 pcs |
Style of press | By hand |
Cooling | Air,draughty, ambient temperature ≤25℃ |
Voltage | 220V, 50 Hz; 110V, 50Hz; 110V, 60Hz |
Power | 700W |
Host dimension | 460*625*(370+465) mm |
Host weight | 41 kg |
