Description

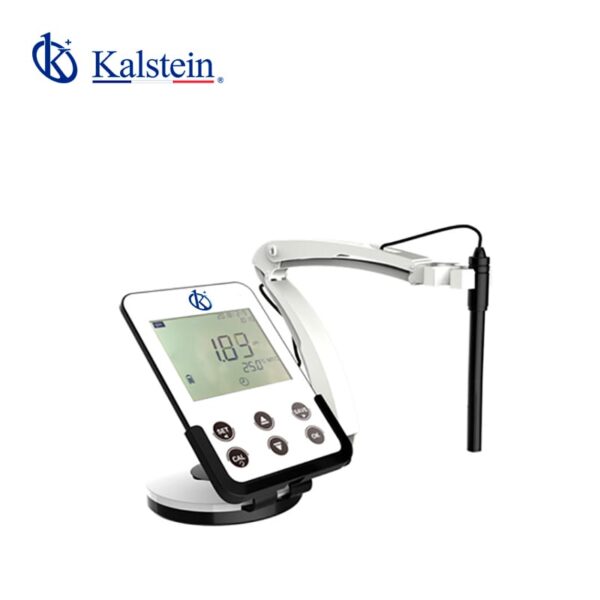

The Benchtop pH / Ion Meter YR01826 is an advanced measurement device ideal for precise pH and ion measurements across various industries. Featuring a clear 5-inch LCD screen with a broad 150° viewing angle, it ensures visibility from up to 5 meters, enhancing user experience. This intelligent design incorporates a microprocessor chip to provide smart functionalities like automatic calibration, Automatic Temperature Compensation (ATC), data storage, and USB connectivity for seamless data transfer. It detects and adapts to various electrode types and offers calibration data recognition, making it versatile and user-friendly. Capable of storing 200 data sets and functioning with a rechargeable battery for up to 30 hours, this device is an essential tool for laboratory and fieldwork. Discover its features today and request a quote via Kalstein Plus for a streamlined purchasing process.
Market Price
The market price for benchtop pH meters like the YR01826 can vary depending on features and functionalities. Generally, prices range from $500 to $1500. Contact us for a personalized quote and see how the YR01826 offers unbeatable value in its class.
Frequently Asked Questions
Q: Can the YR01826 be used for temperature measurements?
A: Yes, it includes a temperature probe and supports temperature measurements from -10 to 110°C.
Q: How many calibration points does it support?
A: The device offers 1, 2, or 3-point calibration options for accuracy and flexibility.
Advantages and Disadvantages
Among the many advantages of the YR01826 are its automatic calibration and temperature compensation, along with extensive data storage and USB connectivity. One potential drawback is that its advanced features might be more than what is required for simple applications, making it less cost-effective for basic needs.
Product Use in the Field
The YR01826 is perfect for laboratories and research facilities. Its automated features and durable design allow it to withstand various environmental conditions, making it suitable for both controlled lab settings and rugged fieldwork.
Recommendations
To maximize the performance of the YR01826, ensure regular calibration and make use of its data storage capabilities for tracking and analysis. Always charge the device fully to ensure optimal usage time. Consider integrating it with a PC for easy data management and process efficiencies.
Features
- 5-inch LCD with 150° viewing angle
- Automatic calibration and temperature compensation
- Data storage for 200 sets
- USB and micro USB connectivity
- Rechargeable battery with up to 30-hour use
Technical Specifications
| Model | YR01826 | |
|
ph
|
Measuring range | (-2~19.999)pH |
| Resolution | 0.1/0.01pH | |
| Accuracy | ±0.02 pH | |
| Input current | ≤2×10^-12 A | |
| Input impendance | 21×10^-12 Ω | |
| Stability | ±0.002 pH/3h | |
| Temp. compensation range |
(0~100) °C, auto/manual
|
|
|
mV
|
Measuring range |
-1999.9mV~0~1999.9mV
|
| Resolution | 0.1mV | |
| Accuracy | ±0.03% FS | |
|
Temperature
|
Measuring range | (-10~110) C |
| Resolution | 0.1°C | |
| Accuracy |
5~ 60°C: range: ±0.4°C; other range: ±0.8℃
|
|
| Calibration | 1, 2, 3 point | |
|
Other Technical Parameters
|
Display |
5-Inch white backlit LCD screen
|
| Data storage | 200 sets | |
| Power | DC 5V/1A | |
| Communication connector |
Micro USB & Standard USB
|
|
| Dimension/N.W. |
180 x 130 x 14mm/280g
|
|
|
Working Condition
|
Environment Temp. | 535 °C |
| Environmental | ≤85% | |
| IP Grade | IP54 | |
|
Meter Kits
|
1) pH meter | |
| 2) Electrode holder | ||
| 3) Two-in-one electrode that consists of pH combination electrode and temperature probe. | ||
| 4) pH buffer solution | ||
| 5) Power adapter | ||
