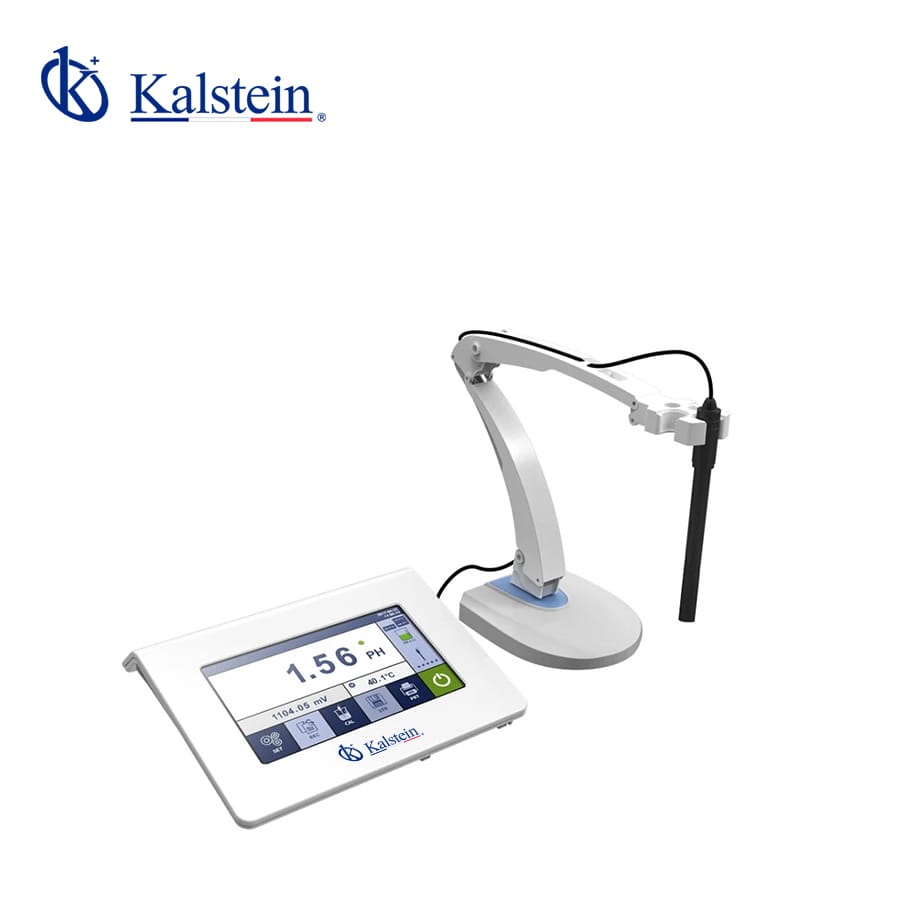

Benchtop Conductivity/DO Meter YR06384

ManufacturerKalstein

Description

The Benchtop Conductivity/DO Meter YR06384 stands out in the market with its state-of-the-art technology and user-friendly interface. Featuring a 7-inch high-resolution colored capacitive touch screen, this meter ensures precision and efficiency in every measurement. Equipped with a built-in microprocessor, it offers intelligent functions such as automatic calibration, data storage, and wireless printing. It excels in both conductivity and dissolved oxygen (DO) modes, thanks to its advanced conductivity measurement technology and polarographic DO electrode, making it ideal for various scientific and industrial applications.

Market Price

The Benchtop Conductivity/DO Meter YR06384 is competitively priced in the range of $1,200 to $2,000, offering excellent value for the advanced features and reliability it provides. Although the actual market price can significantly fluctuate based on retailers and region, this range is a fair approximation of what potential users might expect.

Frequently Asked Questions

What kind of data storage options does this model have? The YR06384 can store up to 1,000 sets of test data, easily transferable via USB or Bluetooth.

Can the meter connect to a PC? Yes, it supports wireless Bluetooth printing and PC connections for real-time data transfer.

Advantages and Disadvantages

Advantages: Advanced measurement technology, user-friendly touch screen, multiple functionalities including Bluetooth connectivity, large data storage capacity, auto calibration, and extensive measurement range.

Disadvantages: Considering its capabilities, the initial investment might be higher than simpler devices, and additional settings may require a learning curve for those unfamiliar with advanced devices.

Field Use

In practical scenarios, the YR06384 is an asset for laboratories and industrial sites requiring precise conductivity and DO measurements. Its quick setup and polarized DO sensor ensure minimal downtime, while its intelligent diagnostics optimize performance during intensive data collection sessions.

Recommendations

To maximize the life and performance of your Benchtop Conductivity/DO Meter, regularly consult the user manual for maintenance tips, always ensure sensors are clean and calibrated, and secure data back-ups frequently. If you’re interested in experiencing the full capabilities of this device, we invite you to request a quote or generate one automatically through the Kalstein Plus platform.

Features

  • 7-inch colored capacitive touch screen with high resolution and sensitivity.
  • Built-in microprocessor with intelligent functions like ATC, data storage, and more.
  • Supports wireless Bluetooth printing and PC connections for real-time data sharing.
  • Stores up to 1,000 sets of test data, easily transferable to a USB.
  • Advanced conductivity measurement technology and polarographic DO electrode.

Technical Specifications

Model YR06384
Cond.
Measuring range
Conductivity:
(0.00~20.00)μS/cm, (20.0~200.0)μS/cm
(200~2000)μS/cm, (2.00~20.00)mS/cm
(20.0~200.0)mS/cm,
(200~2000)mS/cm (K=10)
TDS:(0 ~ 100)g/L
Salinity:(0 ~ 100)ppt
Resistivity:(0 ~ 100)MΩ·cm
Resolution 0.01/0.1/1μS/cm; 0.01/0.1mS/cm
Accuracy Electrode: ±0.5% FS, Meter: ±0.8% FS
Temp. compensation range (0 ~ 50)ºC, auto
Electrode constant 0.1/0.5/1/5/10/50/100 cm-1
Reference Temp. 25ºC,20ºC,18ºC
DO
Measuring range (0 ~ 20.00)mg/L(ppm) (0 ~ 200.0)%
Resolution 0.1/0.01 mg/L(ppm) 1/0.1 %
Accuracy Electrode: ±0.10 mg/L, Meter: ±0.40 mg/L
Response time ≤30s (25ºC, 90%response)
Residual current ≤0.1 mg/L
Temp compensation (0 ~ 45)ºC, auto
Salinity compensation (0 ~ 45) ppt, auto
Pressure compensation (80 ~ 105) kPa, auto
Auto calibration Air saturated by water; water saturated by air
Electrode type Polarographic
Temp.
Range (-10 ~ 110)ºC
Resolution 0.1ºC
Accuracy 5 ~ 60ºC:±0.4ºC Others: ±0.8ºC
Other
Display 7-inch colored capacitive touch screen
Data storage 1000 sets
Power 12V/1A
Output USB, RS232, Bluetooth
Ambient Temp. 15 ~ 30 ºC
Ambient Humidity ≤85%
IP grade IP54
Dimensions/N.W. 240×170×70mm/600g
Shipping Size/G.W. 470x430x85mm/2.6kg

Additional information

Weight 3 kg
Dimensions 47 × 43 × 8 cm
