PCR Thermal Cyclers
PCR thermal cyclers are essential tools in modern molecular biology laboratories, facilitating the amplification of DNA sequences. Their precision and reliability make them crucial for various applications including genetic research, clinical diagnostics, and forensic analysis. Investing in the right thermal cycler can significantly enhance the efficiency and accuracy of your experiments.
When selecting a PCR thermal cycler, it is vital to consider factors such as temperature uniformity, programming flexibility, and the ability to accommodate various sample types. This guide will help you navigate through the important aspects of PCR thermal cyclers, ensuring you make an informed decision for your laboratory's needs.
What you should know before selecting a pcr thermal cyclers and making an investment
Key factors to consider
When evaluating PCR thermal cyclers, consider the maximum number of cycles, ramp rate, and the types of samples they can process. A higher ramp rate can save time, while versatility in sample types allows for more experimental flexibility. Additional features such as built-in data analysis tools can also enhance productivity.
Moreover, assessing the user interface and ease of programming is critical for efficient operation. Opt for models that offer intuitive touchscreen controls or software integration for streamlined workflow, especially in busy laboratory settings.
Market price range
The price range for PCR thermal cyclers can vary significantly based on specifications and features. Entry-level models may cost around $1,000, while high-end systems can exceed $10,000. Understanding your laboratory's budget and requirements is key to selecting the right model without compromising on essential functionalities.
Consider not only the initial cost but also the long-term value and potential for upgrades. Investing in a reliable, higher-priced unit can result in lower operational costs and enhanced performance over time.
Value for money
Determining the value for money when purchasing a PCR thermal cycler involves evaluating its features against the price. Features such as temperature accuracy, user-friendly software, and customer support are critical. A more expensive model may provide better reliability and service, ultimately delivering a greater return on investment.
Additionally, consider warranty and after-sales support, as these can significantly impact the overall cost-effectiveness of your purchase. A model that offers strong technical support and training can save time and resources in the long run.
Expected lifespan based on use and maintenance
The lifespan of a PCR thermal cycler is influenced by its usage frequency and maintenance practices. Regular maintenance, including calibration and software updates, can extend the life of your equipment. Most units are designed to last several years with proper care, making them a worthwhile investment for long-term laboratory operations.
It is also advisable to review the manufacturer's guidelines on maintenance schedules and servicing. This proactive approach ensures your thermal cycler remains efficient and reliable throughout its operational life.
PCR THERMAL CYCLERS KALSTEIN
Discover pcr thermal cyclers for your laboratory
Explore our range of high-performance PCR thermal cyclers designed to meet the diverse needs of molecular biology laboratories. Each model is engineered for precision and reliability, ensuring optimal results in your experiments.
Real-time PCR System YR06248 – YR06249
The Real-Time Quantitative PCR System YR06248 – YR06249 is a highly advanced tool designed for precise and sensitive PCR analysis. It features cutting
View productReal-Time PCR YR06689 // YR06691
The YR06689 // YR06691 family represents excellence in real-time PCR systems, specifically designed to meet the experimental requirements of high-leve
View productAutomatic Nucleic Acid Extractor YR01871
The Termocycler YR01871 is an advanced automated nucleic acid extraction system designed to provide high-precision and efficient results for a wide ra
View productOur best-selling pcr thermal cyclers
Real-Time PCR YR06689 // YR06691
Design and Technology (or Functionality)
The YR06689 // YR06691 systems integrate patented technologies that ensure consistent and precise results:- Superior Scanning System: It utilizes a high-brightness, long-life, maintenance-free LED light source with detection via photodiodes (PDs). By performing the scan from the top, interference is minimized and the signal is maximized.
- Peltier Thermal Control: Reaches heating rates of up to 6.1 °C/s, which drastically reduces the total time of PCR protocols.
- Operational Flexibility: Dual control mode allows the equipment to be operated autonomously via its 10.4-inch touch screen or through a direct PC connection.
- Experiment Protection: The automatic resumption function after power failures ensures that valuable data and samples are not lost in the event of a supply failure.
- Advanced Multiplexing: Capability to detect up to 6 different targets in a single well (on E and T models), optimizing reagent use and time.
Frequently Asked Questions (FAQ)
- What is the main difference between the model YR06689, YR06690, and YR06691? The difference lies primarily in the fluorescence channels. The YR06689 and YR06691 models feature 6 channels (ideal for complex clinical diagnostics and FRET), while the YR06690 offers 4 channels, covering the most common PCR applications.
- Which consumables can I use? They are compatible with standard 0.2 ml 96-well plates, 8-tube strips, and individual tubes (transparent, frosted, or white).
- How are result reports managed? The software includes reserved templates and allows for the creation of customized experiment reports that can be exported or printed directly following quantification or melting curve analysis.
Advantages and Disadvantages (Pros and Cons)
Advantages:- Scanning Speed: Only 7 seconds for a full plate reading.
- Thermal Stability: Exceptional temperature uniformity of ±0.1 °C ensures reproducible results between wells.
- Autonomy: Large internal storage capacity for up to 1000 results without needing a PC connection.
- Versatility: Supports applications for absolute and relative quantification, SNP analysis, and melting curve analysis.
- Bench Space: With a width of 555 mm for some models, it requires considerable workspace compared to portable units.
- Energy Consumption: Requires 900 VA; therefore, the use of a stabilized UPS is highly recommended.
Field Use and Recommendations
These units are ideal for third-level hospitals, Centers for Disease Control (CDC), and pharmaceutical laboratories. They are the ultimate tool for detecting infectious pathogens, cancer biomarker research, and food safety testing. Practical Tip: To ensure optical precision, always use high-quality optical consumables and ensure there is no condensation on the tube caps before starting the thermal cycle.Technical Specifications
| Parameter | characteristics | ||
| Model | YR06689 | YR06690 | YR06691 |
| Sample Throughput | ene-96 | ene-96 | ene-96 |
| Fluorescence Channels | 6 | 6 | 4 |
| Scanning Time | 7 s | 7 s | 7 s |
| Light Source | LED (Top scanning) | LED (Top scanning) | LED (Top scanning) |
| Detector | Photodiode (PD) | Photodiode (PD) | Photodiode (PD) |
| Heating Method | Peltier | Peltier | Peltier |
| Heating Rate | >6.1 C/s | >6.1 C/s | >6.1 C/s |
| Cooling Rate | >5.0 C/s | >5.0 C/s | >5.0 C/s |
| Temperature Uniformity | ±0.1 C | ±0.1 C | ±0.1 C |
| Temperature Accuracy | ≤0.1 C | ≤0.1 C | ≤0.1 C |
| Gradient Range | 1 C - 40 C | 1 C - 40 C | 1 C - 40 C |
| Control Screen | 10.4" Touch Screen | 10.4" Touch Screen | 10.4" Touch Screen |
| Internal Storage | 1000 results | 1000 results | 1000 results |
| PC Operating System | Win 7/10/11 | Win 7/10/11 | Win 7/10/11 |
| Power Consumption | 900 VA | 900 VA | 900 VA |
| Net Weight (kg) | 30 kg | 30 kg | 30 kg |
| Dimensions (LxWxH) | 55,5x47,5x48,4 cm | 55,5x47,5x48,4 cm | 35,5x47,5x48,4 cm |
| Consumables | 0.2ml Plate/8-tube strip | 0.2ml Plate/8-tube strip | 0.2ml Plate/8-tube strip |
Detailed analysis of pcr thermal cyclers for an effective and safe choice

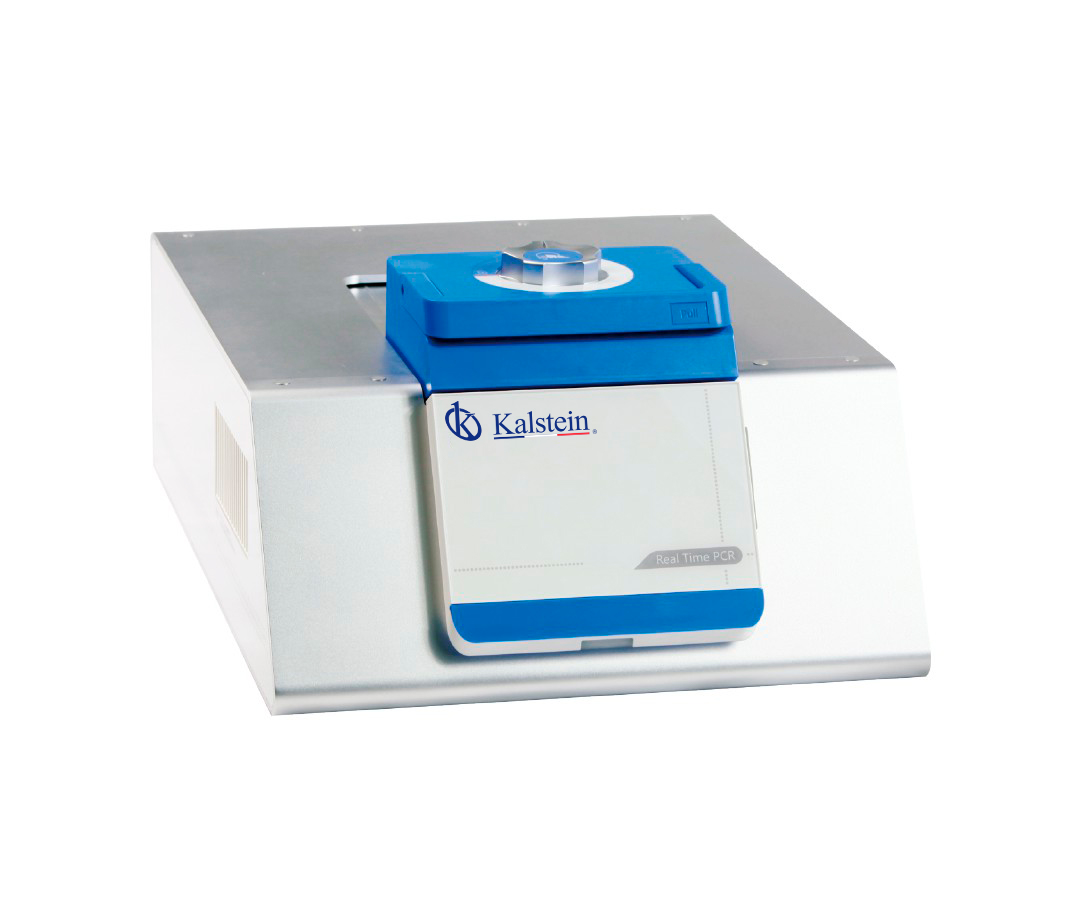

An In-Depth Look at PCR Thermal Cyclers: Exploring Cutting-Edge Technology by Kalstein
PCR Thermal Cyclers: The Kalstein Brand In the world of molecular biology, precision, reliability, and efficiency are paramount. PCR Thermal Cyclers have become indispensable tools for laboratories worldwide. Among the myriad of available options, those provided by Kalstein stand out for their innovation and robustness. Known for years as a trusted name in laboratory equipment, Kalstein has consis
High-Precision Genetic Amplification with PCR Thermal Cyclers
PCR thermal cyclers are essential instruments in molecular biology laboratories for carrying out the polymerase chain reaction (PCR), a technique that has revolutionized genetics, biomedicine, and scientific research. With these devices, it is possible to amplify DNA sequences precisely and quickly, allowing for everything from pathogen detection to the identification of genetic mutations. In this article, we will delve into the details of PCR thermal cyclers, their technical features, and how Kalstein models stand out in the market.

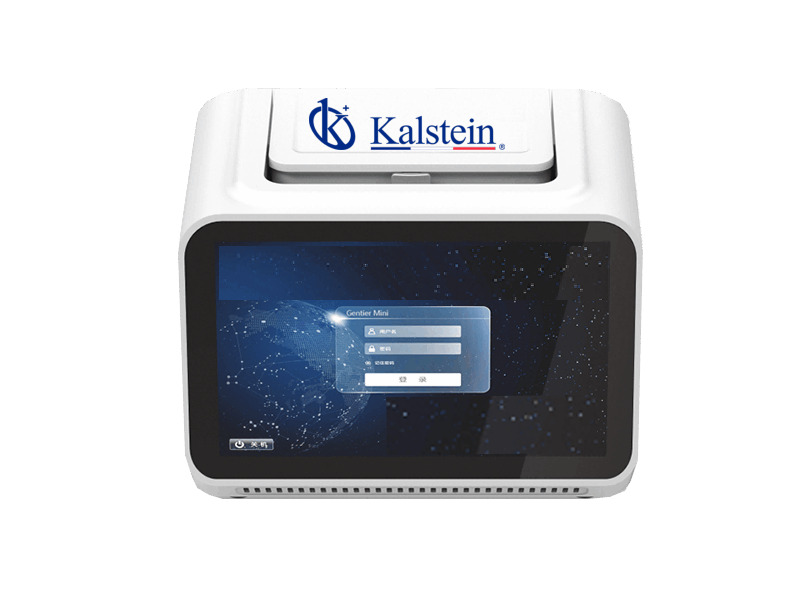

High-Precision PCR Thermal Cyclers for Advanced Genetic Diagnostics
The polymerase chain reaction (PCR) has revolutionized genetic diagnostics and biomedical research. PCR thermal cyclers have become an essential tool for DNA replication in laboratories worldwide, allowing for the precise amplification of DNA sequences for further analysis. As a scientist who has worked with various thermal cycler models, I can confirm that the precision and reliability of these devices are crucial for obtaining high-quality results, especially in advanced applications such as genetic diagnostics.
Latest Generation PCR Thermal Cyclers for Molecular Diagnostics
Today, PCR thermal cyclers are an indispensable tool in molecular diagnostics and genetic research. These devices allow for the amplification of small amounts of DNA, enabling accurate detection of diseases, genetic studies, and advances in biotechnology. In this article, I will explore the features and advantages of Kalstein’s PCR thermal cyclers, a brand known for the high quality of its laboratory equipment, and how they compare to other products available on the market.
pcr thermal cyclers offer catalog
Guides about pcr thermal cyclers
Complete guides to choose pcr thermal cyclers
PCR Thermal Cycler Technology for Rapid DNA and RNA Analysis
In recent years, the polymerase chain reaction (PCR) has proven to be an indispensable tool in genetic and molecular research. PCR thermal cyclers have played a key role in enabling fast and accurate DNA and RNA analysis, driving significan
Leer más

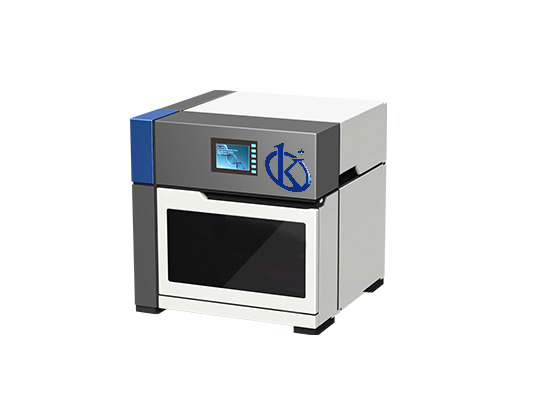

Revolutionize Your Genetic Research with Innovative PCR Thermal Cyclers
As a leader in the laboratory equipment industry, Kalstein has designed the most advanced PCR thermal cyclers available on the market. Cutting-edge technology in the field of Polymerase Chain Reaction (PCR) provides scientists and laborator
Leer másPCR Thermocyclers: Innovation and Precision in Nucleic Acid Amplification
PCR thermocyclers are fundamental tools in molecular biology laboratories, allowing for the precise amplification of nucleic acids through polymerase chain reaction (PCR). These devices have evolved significantly, integrating technologies t
Leer más

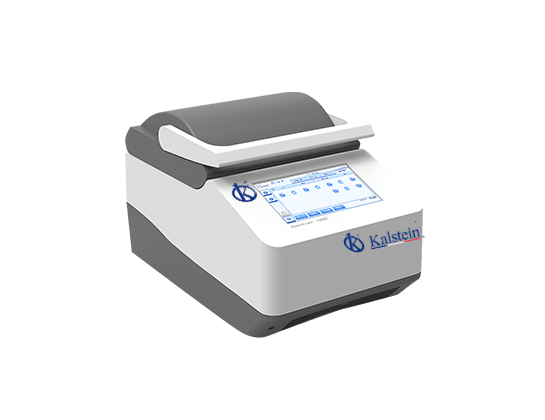

Technical and Functional Comparison: Thermalcyclers of the Kalstein Line
Thermal cyclers are essential laboratory equipment designed to amplify DNA and RNA fragments through polymerase chain reaction (PCR). Kalstein brand models are renowned for their exceptional accuracy and efficiency. Here, we will compare th
Leer másFrequently asked questions about PCR Thermal Cyclers
How to know the prices of PCR Thermal Cyclers?
To know the price of PCR Thermal Cyclers, please send us an email with your request through the contact form AQUI.
What are the delivery times for PCR Thermal Cyclers?
Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.
How to make a purchase of PCR Thermal Cyclers?
You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.
How does the warranty work for PCR Thermal Cyclers?
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.
Can I request a quote online for PCR Thermal Cyclers?
Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
