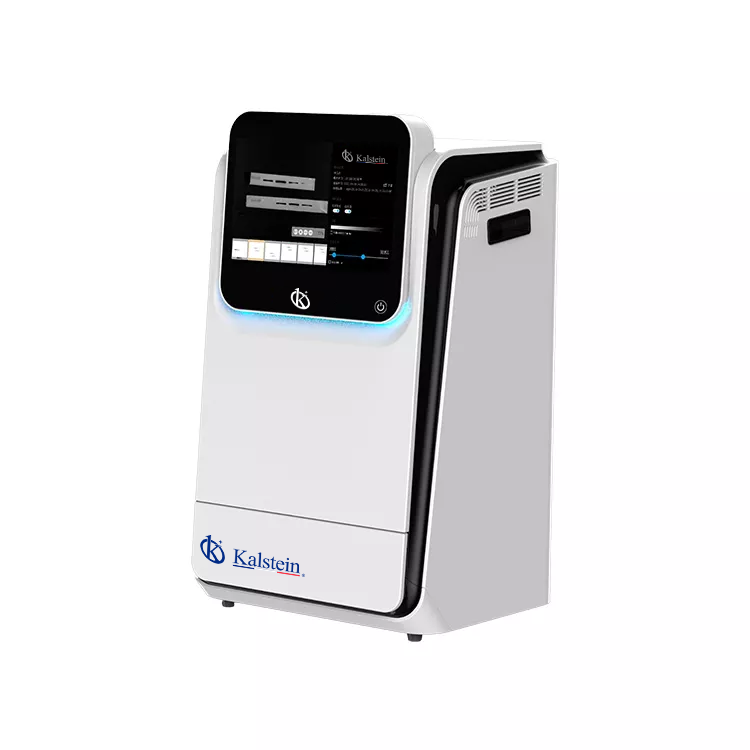

Multifunctional Imager YR06210
Los Generadores de Imágenes Multifuncional ofrecen un alto rendimiento con facilidad de uso para la detección de fluorescencia y quimioluminiscencia en luz visible (RGB) y en rojo lejano/infrarrojo cercano (FR/NIR), así como para todas las aplicaciones generales de documentación de geles. Adoptan plataformas de elevación electrónicas para ajustar la mejor área de captura a los diversos tamaños de las distintas muestras. El PC extraíble, que es un accesorio opcional, funciona de forma rápida y viable, y evita cualquier riesgo posventa causado por el Windows Pad integrado. Características Cámara digital refrigerada supersensible Amplia gama de aplicaciones Plataforma elevadora electrónica PC extraíble opcional Software intuitivo para un número ilimitado de usuarios.
This page provides an overview of the Multifunctional Imager YR06210, including selection criteria, investment factors, operational advantages and maintenance recommendations. The aim is to support an informed decision before requesting a quotation.
This Kalstein model is available for laboratories in Germany, with selection criteria adapted to local purchasing, installation and support conditions.
Key factors to consider
Before selecting the Multifunctional Imager YR06210, confirm workflow, available space, required accessories and installation conditions. This prevents oversizing the purchase and helps prepare a more accurate quotation.
Its use is oriented to laboratory routines that require observation, control and operational continuity.
For the market in Germany, evaluation should consider local context such as industrial labs, Mittelstand pharma, strict DIN/EN standards and match the product to the real workload of the laboratory.
Market price range
The investment should be evaluated according to configuration, required accessories, installation conditions and available technical support.
The final price may vary according to configuration, accessories, logistics, warranty and territorial availability. Compare the technical sheet with the real laboratory workload before confirming the investment.
In Germany, budget comparison should include local regulatory requirements, 230V/50Hz power conditions, accessories, logistics and after-sales support.
Value for money
Equipment value depends on operational stability, required accuracy, ease of maintenance and accessory availability.
Value for money should be reviewed together with equipment stability, after-sales support, technical documentation and expected service life. A well-matched selection reduces downtime and improves return on investment.
Advantages and disadvantages
Its use is oriented to laboratory routines that require observation, control and operational continuity.
Main advantages include specialized application, integration with laboratory routines and accessory configuration. Limitations may include installation requirements, user training and preventive maintenance to preserve performance.
Expected lifespan based on use and maintenance
Model YR06210 YR06211 Application Chemiluminescence Imaging, ECL Western Blotting YES YES Fluorescence Imaging, Fluorescent Western Blotting YES YES Gel Doc Application YES YES Protein Gel；SDS Pages YES YES Standard Parameters Sensor Back illuminated SCMOS Sensor Front illuminated CCD Sensor Resolution 9.0 Megapixels 6 Megapixels Pixel Size 3.76 × 3.76 μm 4.54 x 4.54 μm Temperature -30 °C regulated Dynamic Range 4.8OD Pixel Density 16 bits (65536 grey scales) Lens F0.95 as standard (optional F0.
Service life depends on usage frequency, cleaning, storage, calibration when applicable and adherence to technical recommendations. A structured maintenance plan helps preserve accuracy, safety and operational continuity.
Support and spare-parts availability oriented to Germany helps preserve service continuity and plan preventive maintenance without extended downtime.
Specifications table for the Multifunctional Imager YR06210
Multifunctional Imager YR06210
Características
- Cámara digital refrigerada supersensible
- Amplia gama de aplicaciones
- Plataforma elevadora electrónica
- PC extraíble opcional
- Software intuitivo para un número ilimitado de usuarios.
| Model | YR06210 | YR06211 | |
Application | Chemiluminescence Imaging, ECL Western Blotting | YES | YES |
| Fluorescence Imaging, Fluorescent Western Blotting | YES | YES | |
| Gel Doc Application | YES | YES | |
| Protein Gel；SDS Pages | YES | YES | |
Standard Parameters | Sensor | Back illuminated SCMOS Sensor | Front illuminated CCD Sensor |
| Resolution | 9.0 Megapixels | 6 Megapixels | |
| Pixel Size | 3.76 × 3.76 μm | 4.54 x 4.54 μm | |
| Temperature | -30 °C regulated | ||
| Dynamic Range | 4.8OD | ||
| Pixel Density | 16 bits (65536 grey scales) | ||
| Lens | F0.95 as standard (optional F0.8) Auto focus | ||
| Chemiluminescence Sample Tray | Electronic Lifting Platform for diverse sizes of western blotting membranes | ||
| DNA/RNA Detection | Electronic Lifting Blue LED Transmission for DNA/RNA detection | ||
| Protein Gel；SDS Pages | Electronic Lifting White LED Transmission for Protein Gels | ||
| Software | SHST Capture and Analysis Software for unlimited number of users | ||
Optional Accessories | Epi-UV, RGB and NIR fluorescent detection | ||
| Removable industrial computer, 13.1 Inch Touch Screen, Intel processor | |||
Frequently Asked Questions about the Multifunctional Imager YR06210
How do I choose the right multifunctional imager yr06210 for my laboratory?
Selection should start from workload, critical technical parameters, available space and frequency of use. Kalstein can support the comparison between operational needs, budget and maintenance requirements to avoid choosing equipment that is oversized or insufficient.
What should I review before requesting a quotation?
Review the model, technical specifications, required accessories, electrical conditions, consumables, delivery timing and installation needs. With this information, the quotation can be prepared more accurately and aligned with the laboratory workflow.
Does Kalstein provide guidance for this type of equipment?
Yes. The commercial and technical team can support product evaluation, explain differences between models, answer application questions and advise on preventive maintenance, spare parts and documentation required for a secure purchase.
What maintenance helps extend the equipment lifespan?
Follow the manufacturer manual, perform regular cleaning, verify calibrations or controls when applicable, avoid workload abuse and keep maintenance records. Stable use and preventive routines reduce failures and improve operational continuity.
