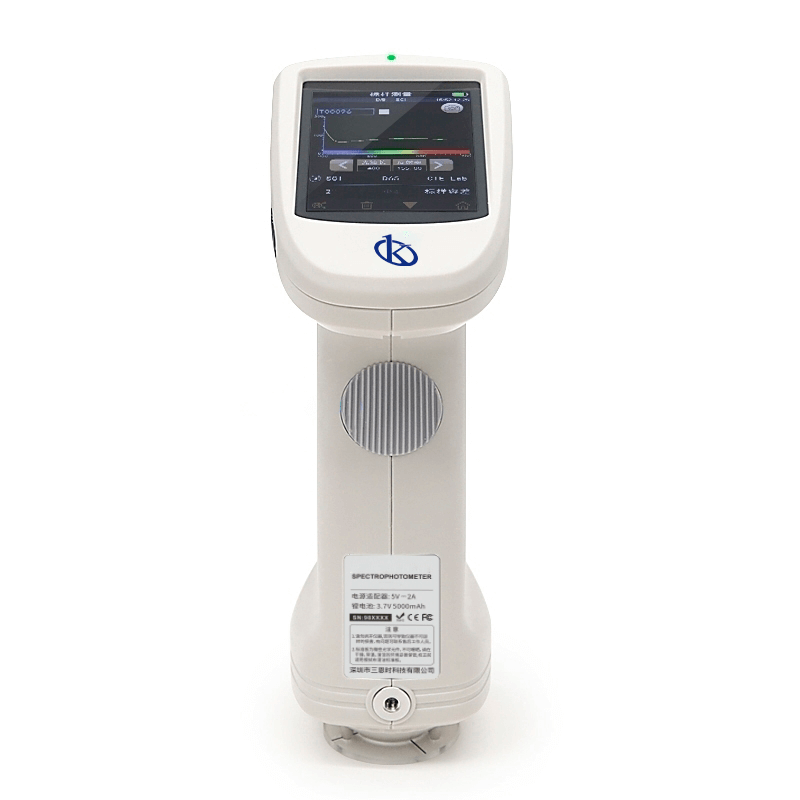

Grid Spectrophotometer YR05493
The Grating Spectrophotometer YR05493 from Kalstein is an essential instrument for precise color analysis in diverse industries such as electronics, plastics, textiles, automotive, cosmetics, and food technology. Known for its advanced 1000-line grating technology, this spectrophotometer features three measurement apertures (φ8 mm, φ4 mm, 1×3 mm) that provide flexibility for samples of various sizes. With a stable dual silicon photodiode array sensor, the YR05493 ensures reliable color measurements within the visible spectrum of 400 to 700 nm. Its ergonomic design and dual d/8 optical structures permit both SCI and SCE measurements, adhering to global standards like CIE No.15 and ASTM E1164, making it ideal for quality control both in laboratories and production settings.
This page provides an overview of the Grid Spectrophotometer YR05493, including selection criteria, investment factors, operational advantages and maintenance recommendations. The aim is to support an informed decision before requesting a quotation.
This Kalstein model is available for laboratories in Germany, with selection criteria adapted to local purchasing, installation and support conditions.
Key factors to consider
Before selecting the Grid Spectrophotometer YR05493, confirm workflow, available space, required accessories and installation conditions. This prevents oversizing the purchase and helps prepare a more accurate quotation.
Its use is oriented to laboratory routines that require observation, control and operational continuity.
For the market in Germany, evaluation should consider local context such as industrial labs, Mittelstand pharma, strict DIN/EN standards and match the product to the real workload of the laboratory.
Market price range
The market price for the YR05493 spectrophotometer typically ranges between $9600 and $10200 USD. Investing in this device is a strategic choice for companies committed to enhancing color control accuracy and efficiency in their production processes. For further inquiries or to obtain a personalized quote, you are encouraged to access the Kalstein Plus platform, ensuring a streamlined purchasing experience.
The final price may vary according to configuration, accessories, logistics, warranty and territorial availability. Compare the technical sheet with the real laboratory workload before confirming the investment.
In Germany, budget comparison should include local regulatory requirements, 230V/50Hz power conditions, accessories, logistics and after-sales support.
Value for money
The YR05493 boasts numerous advantages, including exceptional precision with a standard deviation of ΔE*ab of just 0.03, versatility across multiple apertures, and compatibility with diverse color spaces and lighting conditions. Its USB and Bluetooth 4.2 connectivity ensures swift data transfer. One potential drawback is its limitation to measuring only within the visible spectrum range (400-700 nm), which might not suit applications necessitating extensive wavelength analysis.
Value for money should be reviewed together with equipment stability, after-sales support, technical documentation and expected service life. A well-matched selection reduces downtime and improves return on investment.
Advantages and disadvantages
Its use is oriented to laboratory routines that require observation, control and operational continuity.
Main advantages include specialized application, integration with laboratory routines and accessory configuration. Limitations may include installation requirements, user training and preventive maintenance to preserve performance.
Expected lifespan based on use and maintenance
For optimal performance of the YR05493, regular calibration is recommended, alongside storing the equipment in a clean, dust-free setting. The lithium-ion battery provides up to 6,000 measurements within 8 hours; hence, routine charging is advised. Visit the Kalstein Plus platform to request a personalized quote or generate an instant quote, and discover how the YR05493 Grating Spectrophotometer can elevate your industry's color control precision and efficiency, enhancing every production stage.
Service life depends on usage frequency, cleaning, storage, calibration when applicable and adherence to technical recommendations. A structured maintenance plan helps preserve accuracy, safety and operational continuity.
Support and spare-parts availability oriented to Germany helps preserve service continuity and plan preventive maintenance without extended downtime.
Specifications table for the Grid Spectrophotometer YR05493
Grid Spectrophotometer YR05493
El espectrómetro YR05493 // YR05495 es una empresa de Kalstein que pasó 3 años, cuidadosamente diseñada, totalmente con espectrofotómetro de rejilla de derechos de propiedad intelectual independiente. El instrumento utiliza 1000 líneas de rejilla brillante de precisión como divisor óptico, sensor de matriz de fotodiodos de silicio incorporado (40 grupos de doble fila), pizarra blanca importada, repetibilidad delta E * AB fácilmente controlada dentro de 0.03, el uso de LED de espectro completo de larga duración como fuente de luz, la resolución óptica en el rango visible es inferior a 10 nm.
Bajo la condición de iluminación óptica geométrica d/8 recomendada por CIE, el espectrofotómetro de rejilla YR05493 // YR05495 puede medir con precisión los datos de reflectancia SCI y SCE de muestras/muestras fluorescentes, y también puede medir y expresar con precisión varias fórmulas de diferencia de color e índices de color en varios espacios de color. Con el espectrofotómetro YR05493 // YR05495, puede realizar fácilmente la transmisión precisa del color y también puede usarse como equipo de detección del sistema de coincidencia de color preciso.
Ventajas técnicas
- Sensor de matriz de fotodiodos de silicio (matriz doble 40)
El área más grande del sensor de matriz doble 40, la luz fuerte no se saturará, la sensibilidad a la luz débil y un rango de respuesta de espectro más amplio, para garantizar la velocidad de medición del instrumento, precisión, estabilidad y consistencia, maestro la tecnología central y el estándar internacional de la misma plataforma, compatibilidad completa. - Adopte una fuente de luz LED equilibrada de
banda de onda completa La fuente de luz LED equilibrada de banda de onda completa garantiza una distribución espectral suficiente en el rango de luz visible, evita la pérdida espectral del LED blanco en una banda de onda específica y garantiza la velocidad de medición y la precisión de los resultados de la medición. - Técnica espectroscópica
de rejilla Utilice la técnica espectroscópica de rejilla, con una resolución más alta, para que la medición del color sea más precisa. - Coloque la base de forma segura para asegurarse de que la pizarra no se ensucie.
- Pizarra blanca profesional, un compromiso de por vida que nunca cambia de color
- Carga
rápida Modo especial de carga rápida, bajo voltaje para recordar la carga o usar la carga fuera de servicio, para garantizar la capacidad y la vida útil de la batería (nota: la carga repetida frecuente de la batería es más perjudicial). - Nuevo diseño de apariencia de moda basado en la ergonomía
La posición de la mano y el botón de medición están cuidadosamente diseñados para cumplir con diferentes hábitos de sujeción, superficie suave y fina, como resultado del arte de procesamiento de apariencia de alta precisión. - Equipado con tres aperturas de medición para satisfacer la medición de la mayoría de las muestras
La configuración de fábrica del espectrofotómetro YR05493 // YR05495 tiene una apertura plana de ø 8 mm, una apertura de punta de ø 8 mm, una apertura plana de ø 4 mm, una apertura de punta de ø 4 mm, una apertura de ø 1x3 mm, un total de cinco aperturas de medición, para cumplir con la mayoría de las muestras de medición. - El posicionamiento de la cámara puede observar claramente el área medida
Espectrofotómetro YR05493 // YR05495 El posicionamiento de la cámara incorporado, a través de la vista en tiempo real de la cámara, puede determinar con precisión si la parte medida del objeto es el centro del objetivo, mejorar la eficiencia y precisión de la medición. - Excelentes errores entre instrumentos y repetibilidad
Garantice la coherencia de los datos de medición de varios equipos, que se utilizarán para igualar el color y transferir el color con precisión. - Una variedad de espacios de color y fuentes de luz de observación
Ofrece espacios de color CIE LAB,XYZ,Yxy,LCh,CIE LUV, S-RGB,HunterLab,βXY,DIN Lab99 Munsell(C/2) y D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4 y F5, F6 y F7 (DLF), F8, F9, F10 (TPL5) y F11 (TL84), F12 (TL83/U30) una variedad de fuentes de luz , para cumplir con los requisitos especiales de medición en diferentes condiciones de medición. - Adopte la tecnología de síntesis de uso común internacional d/8 SCI/SCE
Adopte la estructura de medición D/8 (SCI/SCE) para reflejar de manera más objetiva el color en sí mismo y reducir el impacto de la textura de la superficie del objeto en los resultados de la prueba, de acuerdo con CIE No.15 . GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7. - Sistema de ruta óptica dual para una medición de color más precisa Sistema de
ruta óptica dual, la resolución óptica es inferior a 10 nm en el rango visible, puede medir simultáneamente el espectro SCI, SCE de la muestra. - El software para PC tiene una potente expansión de funciones
El software de gestión de calidad SQCX con espectrofotómetro YR05493 // YR05495 es adecuado para el control de calidad y la gestión de datos de color de diversas industrias. Digitalice la gestión del color de los datos del usuario.
Especificación técnica
| Model | YR05493 (current) |
| optical geometry | D/8 (diffuse illumination, 8-degree viewing angle) |
| SCI (specular component included)/SCE (specular component excluded); Include UV light source / UV excluded | |
| Complies with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7 | |
| Feature | 3 measurement apertures for accurate color analysis and transmission in the laboratory |
| Used for precise color measurement and quality control in plastic electronics, paint and ink, textile and garment printing and dyeing, ceramics, and other industries, and for measuring fluorescent samples. | |
| Integrating sphere size | Φ40mm |
| Light source | Combined full-spectrum LED light source, UV light source |
| Spectrophotometric mode | flat grating |
| Sensor | Silicon photodiode array (double row 40 groups) |
| Wavelength range | 400~700nm |
| Wavelength interval | 10nm |
| Half-bandwidth | 10nm |
| Measured reflectance range | 0-200% |
| Measurement aperture | 3 apertures: MAV:Φ8mm/Φ10mm; SAV:Φ4mm/Φ5mm; LAV:1x3mm |
| LAV1x3mm: slightly poor accuracy, can be used for color testing | |
| Specular component | SCI&SCE |
| Color space | CIE LAB, XYZ, Yxy, LCh, CIE LUV, s-RGB, HunterLab, βxy, DIN Lab99 Munsell (C/2)) |
| Color difference formula | ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, DINΔE99, ΔE(Hunter) |
| Other colorimetric index | WI (ASTM E313, CIE/ISO, AATCC, Hunter), |
| YI (ASTM D1925, ASTM 313), | |
| Metamerism Index MI, | |
| Staining fastness, color fastness, color intensity, opacity, | |
| 8° gloss, 555 tone classification | |
| Observer angle | 2°/10° |
| Illuminant | D65, A, C, D50, D55, D75, F1, F2 (CWF), F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5), F11 (TL84), F12 (TL83/U30) |
| Displayed data | Spectrogram/Values, Sample chromaticity values, Color difference values/Graph, PASSED/FAILED result, Color compensation |
| Measuring time | About 1.5 s (SCI and SCE measurement about 3.2 s) |
| Repeatability | Spectral reflectance: MAV/SCI, standard deviation within 0.08% (400 nm to 700 nm: within 0.18%) |
| Chromaticity value: MAV/SCI, within ΔE*ab 0.03 (when a white calibration plate is measured 30 times at 5-second intervals after white calibration) | |
| Error between instruments | MAV/SCI, within ΔE*ab 0.15 |
| (Average of 12 BCRA Series II color tiles) | |
| Measurement mode | Single measurement, average measurement (2-99 times) |
| Location method | Camera location, stabilizer cross position |
| Dimension | L*W*H=129X76X217mm |
| Weight | Approximately 600g |
| Battery | Lithium-ion battery, 6000 measurements in 8 hours |
| Illuminating life | 5 years, over 3 million measurements |
| Displayed data | 3.5-inch color TFT LCD, capacitive touchscreen |
| Data port | USB, Bluetooth 4.2 |
| Data storage | Standard 1000 pieces, sample 30000 pieces |
| Language | simplified Chinese, English, traditional Chinese |
| Operating environment | 0~40℃, 0~85%RH (non-condensing), Altitude < 2000m |
| Storage environment | -20~50℃, 0~85%RH (non-condensing) |
| Standard accessory | Power adapter, user guide, PC software (download from office website), USB cable, white and black calibration cavity, protective cover, wrist strap, flat aperture of 8 mm, tip aperture of 8 mm, flat aperture of 4 mm, tip aperture of 4 mm, tip aperture of 1x3 mm |
| Optional accessory | Micro printer, dust test box, holding base |
| notes | Specifications are subject to change without notice |
Products related to model YR05493
YR06702//YR06702-3 Series Single and Dual Beam UV-Visible Spectrophotometer
Ver producto
Array Spectrophotometer YR06664
Ver producto
Non-contact Benchtop Spectrophotometer YR05482
Ver producto
Benchtop Spectrophotometer YR05477
Ver producto
Benchtop Spectrophotometer YR05478
Ver producto
Non-contact Benchtop Spectrophotometer YR05483
Ver producto
Benchtop Color Haze Meter YR05479
Ver producto
Non-contact spectrophotometer YR05481
Ver productoFrequently Asked Questions about the Grid Spectrophotometer YR05493
What industries can benefit from the YR05493?
This device is ideally suited for color management in sectors including plastics, textiles, ceramics, and printing, with special emphasis on fluorescent sample analysis.
Can the YR05493 interface with computers?
Yes, the spectrophotometer comes with comprehensive color management software for PCs, allowing detailed audits and robust data management.
What is its data storage capacity?
The model can store up to 1,000 standard readings and 30,000 sample measurements, supporting meticulous and organized record-keeping.
How do I choose the right grid spectrophotometer yr05493 for my laboratory?
Selection should start from workload, critical technical parameters, available space and frequency of use. Kalstein can support the comparison between operational needs, budget and maintenance requirements to avoid choosing equipment that is oversized or insufficient.
What should I review before requesting a quotation?
Review the model, technical specifications, required accessories, electrical conditions, consumables, delivery timing and installation needs. With this information, the quotation can be prepared more accurately and aligned with the laboratory workflow.
Does Kalstein provide guidance for this type of equipment?
Yes. The commercial and technical team can support product evaluation, explain differences between models, answer application questions and advise on preventive maintenance, spare parts and documentation required for a secure purchase.
What maintenance helps extend the equipment lifespan?
Follow the manufacturer manual, perform regular cleaning, verify calibrations or controls when applicable, avoid workload abuse and keep maintenance records. Stable use and preventive routines reduce failures and improve operational continuity.
