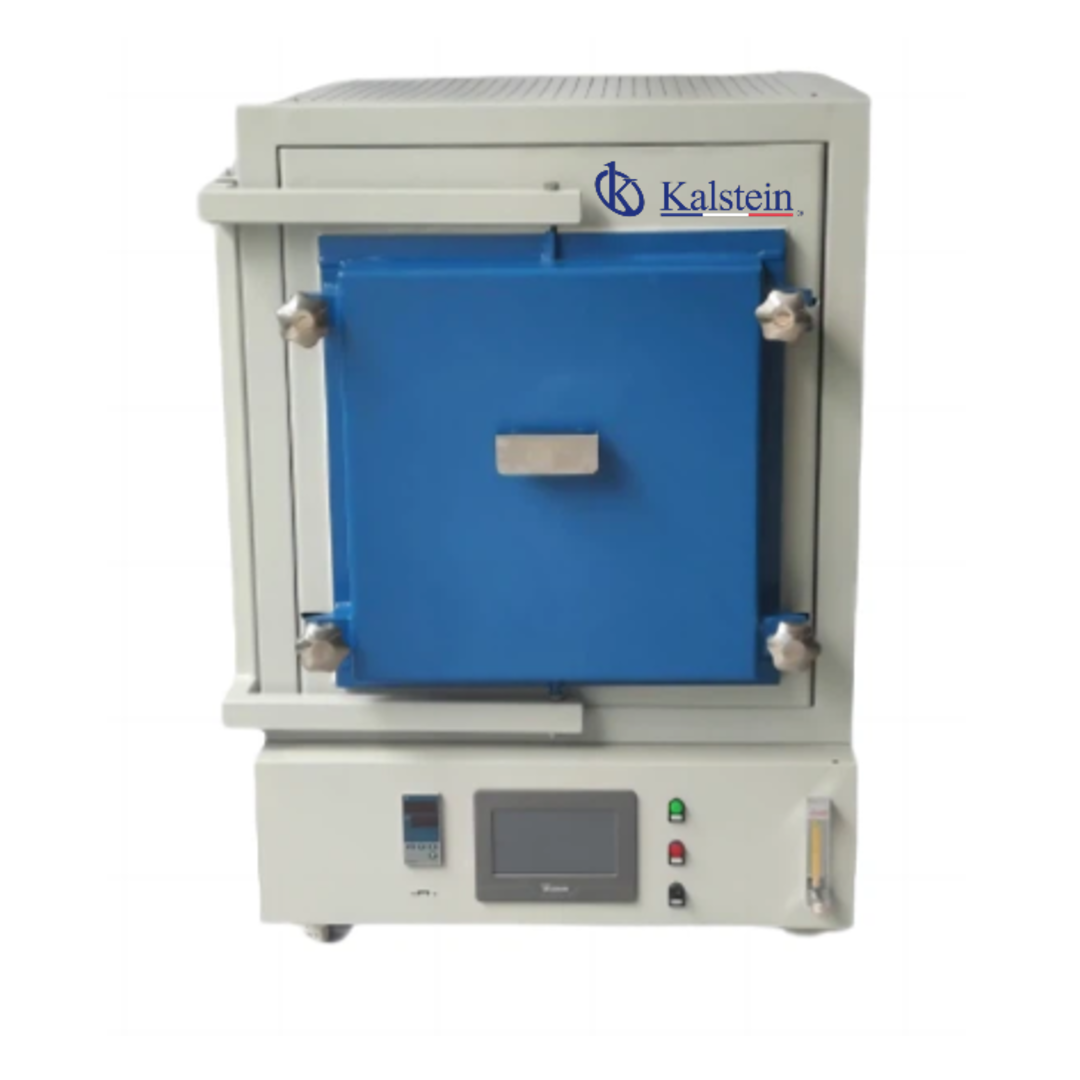

Atmosphere Furnace YR06668
The Atmosphere Furnace YR06668 combines technical features for laboratory routines, operational continuity and a coherent equipment selection process.
This page provides an overview of the Atmosphere Furnace YR06668, including selection criteria, investment factors, operational advantages and maintenance recommendations. The aim is to support an informed decision before requesting a quotation.
This Kalstein model is available for laboratories in Germany, with selection criteria adapted to local purchasing, installation and support conditions.
Key factors to consider
Before selecting the Atmosphere Furnace YR06668, confirm workflow, available space, required accessories and installation conditions. This prevents oversizing the purchase and helps prepare a more accurate quotation.
Its use is oriented to laboratory routines that require observation, control and operational continuity.
For the market in Germany, evaluation should consider local context such as industrial labs, Mittelstand pharma, strict DIN/EN standards and match the product to the real workload of the laboratory.
Market price range
The investment should be evaluated according to configuration, required accessories, installation conditions and available technical support.
The final price may vary according to configuration, accessories, logistics, warranty and territorial availability. Compare the technical sheet with the real laboratory workload before confirming the investment.
In Germany, budget comparison should include local regulatory requirements, 230V/50Hz power conditions, accessories, logistics and after-sales support.
Value for money
Equipment value depends on operational stability, required accuracy, ease of maintenance and accessory availability.
Value for money should be reviewed together with equipment stability, after-sales support, technical documentation and expected service life. A well-matched selection reduces downtime and improves return on investment.
Advantages and disadvantages
Its use is oriented to laboratory routines that require observation, control and operational continuity.
Main advantages include specialized application, integration with laboratory routines and accessory configuration. Limitations may include installation requirements, user training and preventive maintenance to preserve performance.
Expected lifespan based on use and maintenance
ModelYR06668Maximum Temperature (C)1400Continuous Temperature (C)1300Capacity (Liters)36Internal Dimensions (mm)400*300*300External Dimensions (mm)1020*730*1300Net Weight (kg)195Power (kW)16Voltage (V)380V (Three-phase)Heating ElementsSiC (Silicon-Carbide)Type of ThermocoupleType STemperature Accuracy+/- 1CControllerPID Touch ScreenVacuum Pressure (Mpa)-0.1CertificationsCE / ISO9001AccessoriesGloves / Tongs / Trays
Service life depends on usage frequency, cleaning, storage, calibration when applicable and adherence to technical recommendations. A structured maintenance plan helps preserve accuracy, safety and operational continuity.
Support and spare-parts availability oriented to Germany helps preserve service continuity and plan preventive maintenance without extended downtime.
Specifications table for the Atmosphere Furnace YR06668
Atmosphere Furnace YR06668
El Horno de Atmósfera Controlada YR06668 es un equipo de alto rendimiento tipo caja con capacidad de 36 litros. Ha sido diseñado para procesos térmicos avanzados donde la ausencia de oxígeno es crítica, permitiendo trabajar con atmósferas de Nitrógeno, Argón o Helio. Es la herramienta ideal para laboratorios de ciencia de materiales y plantas metalúrgicas que buscan precisión extrema hasta los 1300°C en uso continuo.
Diseño y Tecnología (o Funcionalidad)
Control Táctil Inteligente: Pantalla con visualización de curvas de tiempo/temperatura y almacenamiento de hasta 50 segmentos programables.
Gestión de Datos: Puerto USB integrado para exportar historiales de quema y análisis en computadora.
Aislamiento de Doble Capa: Carcasa enfriada por aire que garantiza una temperatura exterior segura (< 60°C).
Sistema de Vacío: Equipado con manómetro de precisión y válvulas de aguja para un sellado hermético de hasta -0.1 Mpa.
Preguntas Frecuentes (FAQ)
¿Se puede usar con aire normal? Sí, el horno puede operar como un horno de mufla convencional o bajo atmósfera controlada. ¿Qué mantenimiento requiere? Principalmente la inspección de los sellos de la puerta y la limpieza de los elementos calefactores de Silicio-Carbono (SiC). ¿Viene listo para usar? Sí, incluye accesorios básicos como guantes térmicos y tenazas para crisoles.
Ventajas y Desventajas (Pros y Contras)
Ventajas:
Precisión Térmica: Estabilidad de +/- 1°C.
Movilidad: Ruedas con freno para fácil posicionamiento.
Seguridad: Doble protección con termopar extra para evitar sobrecalentamiento accidental.
Desventajas:
Potencia: Requiere una instalación eléctrica de 16 kW (Trifásica).
Peso: Con casi 200 kg, requiere una superficie de soporte industrial.
Uso en el Campo y Recomendacione
Este equipo destaca en clínicas de investigación dental avanzada, laboratorios de metalurgia y desarrollo de semiconductores.
Consejo Operativo: Asegúrese de cerrar las válvulas de gas antes de iniciar el vacío para evitar daños en los medidores de flujo.
Recomendación: Utilice las bandejas de SiC incluidas para evitar el contacto directo de las muestras con el piso de la cámara.
Model | YR06668 |
Maximum Temperature (C) | 1400 |
Continuous Temperature (C) | 1300 |
Capacity (Liters) | 36 |
Internal Dimensions (mm) | 400*300*300 |
External Dimensions (mm) | 1020*730*1300 |
Net Weight (kg) | 195 |
Power (kW) | 16 |
Voltage (V) | 380V (Three-phase) |
Heating Elements | SiC (Silicon-Carbide) |
Type of Thermocouple | Type S |
Temperature Accuracy | +/- 1C |
Controller | PID Touch Screen |
Vacuum Pressure (Mpa) | -0.1 |
Certifications | CE / ISO9001 |
Accessories | Gloves / Tongs / Trays |
Frequently Asked Questions about the Atmosphere Furnace YR06668
How do I choose the right atmosphere furnace yr06668 for my laboratory?
Selection should start from workload, critical technical parameters, available space and frequency of use. Kalstein can support the comparison between operational needs, budget and maintenance requirements to avoid choosing equipment that is oversized or insufficient.
What should I review before requesting a quotation?
Review the model, technical specifications, required accessories, electrical conditions, consumables, delivery timing and installation needs. With this information, the quotation can be prepared more accurately and aligned with the laboratory workflow.
Does Kalstein provide guidance for this type of equipment?
Yes. The commercial and technical team can support product evaluation, explain differences between models, answer application questions and advise on preventive maintenance, spare parts and documentation required for a secure purchase.
What maintenance helps extend the equipment lifespan?
Follow the manufacturer manual, perform regular cleaning, verify calibrations or controls when applicable, avoid workload abuse and keep maintenance records. Stable use and preventive routines reduce failures and improve operational continuity.
